4. OPTIONS

4.1 ARP Kit ARP-11

Necessary parts

Name: ARP kit

Type: ARP-11

Code no.: 008-523-050

Table 4-1 ARP-11 contents

Name Type Code No. Qty

ARP Board 18P9013 008-521-830 1

Pan head screw M3x6 C2700W 000-881-403 4

SQ9 000-801-850 1

Spacer*

SQ15 000-801-779 3

Spring washer* M3 C5191W 000-864-204 3

*Not used

1. Unscrew seven connecter nuts at the rear of the display unit.

2. Unfasten 15 bind screws (M3x10) to remove the display cover.

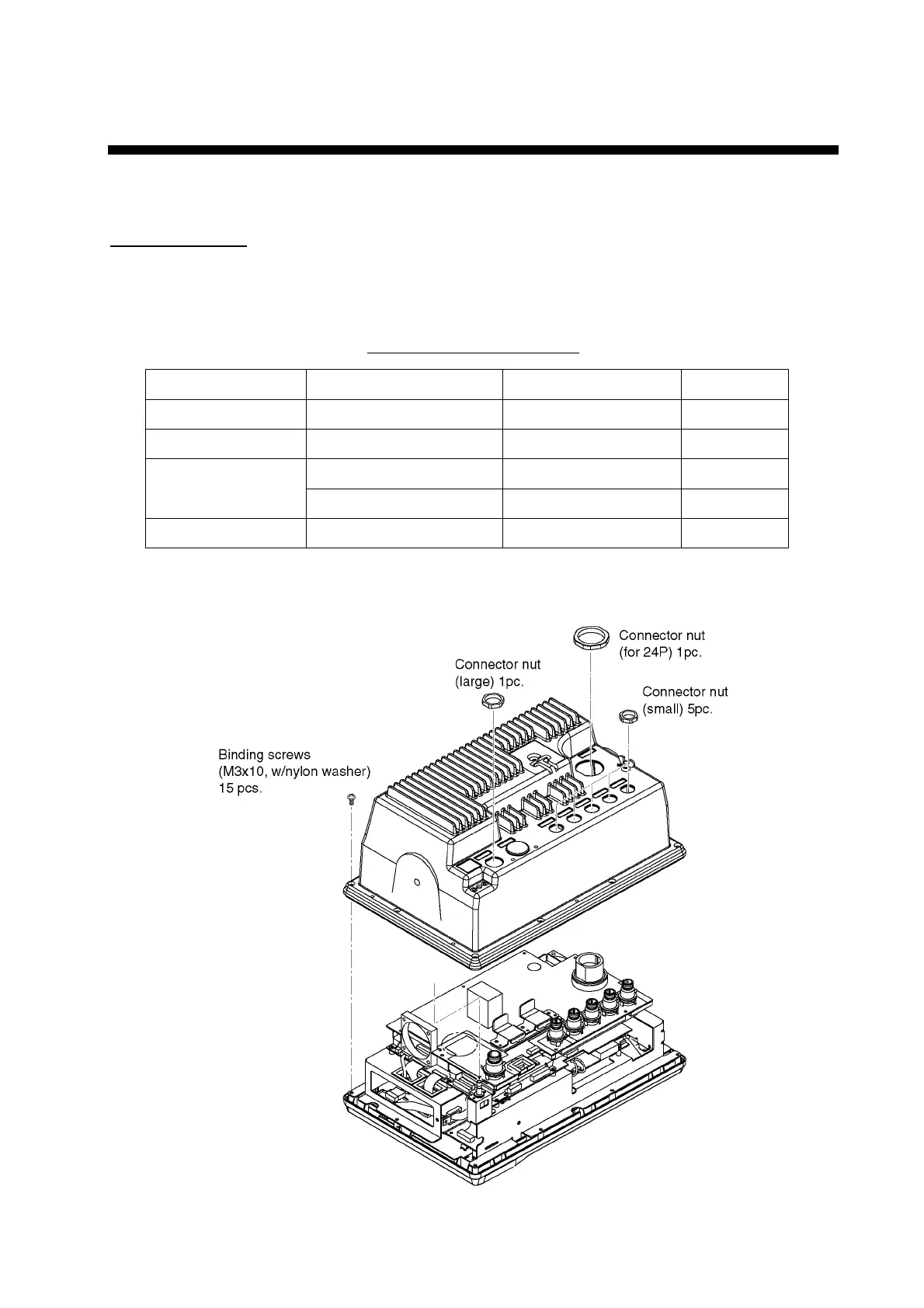

Removing the display unit cover

Furuno 1823C Installation Manual
