4-10
4.3 Mounting the Memory Card Interface Unit
The memory card interface CU-200 enables to use more two chart cards.
Type: CU-200-NAV
Code: 000-081-567
Name Type Code No. Qty
Memory card interface CU-200 000-081-569 1
Cable assy
MJ-A6SPF/TM11AP
8C050
000-146-289 1
Cable assy MJ-A15A3F0003-030 000-145-513 1
Threaded rod M4X5 000-147-539 4
Hex. nut M4 000-863-106 4
Flat washer M4 000-864-126 4
Spring washer M4 000-864-256 4

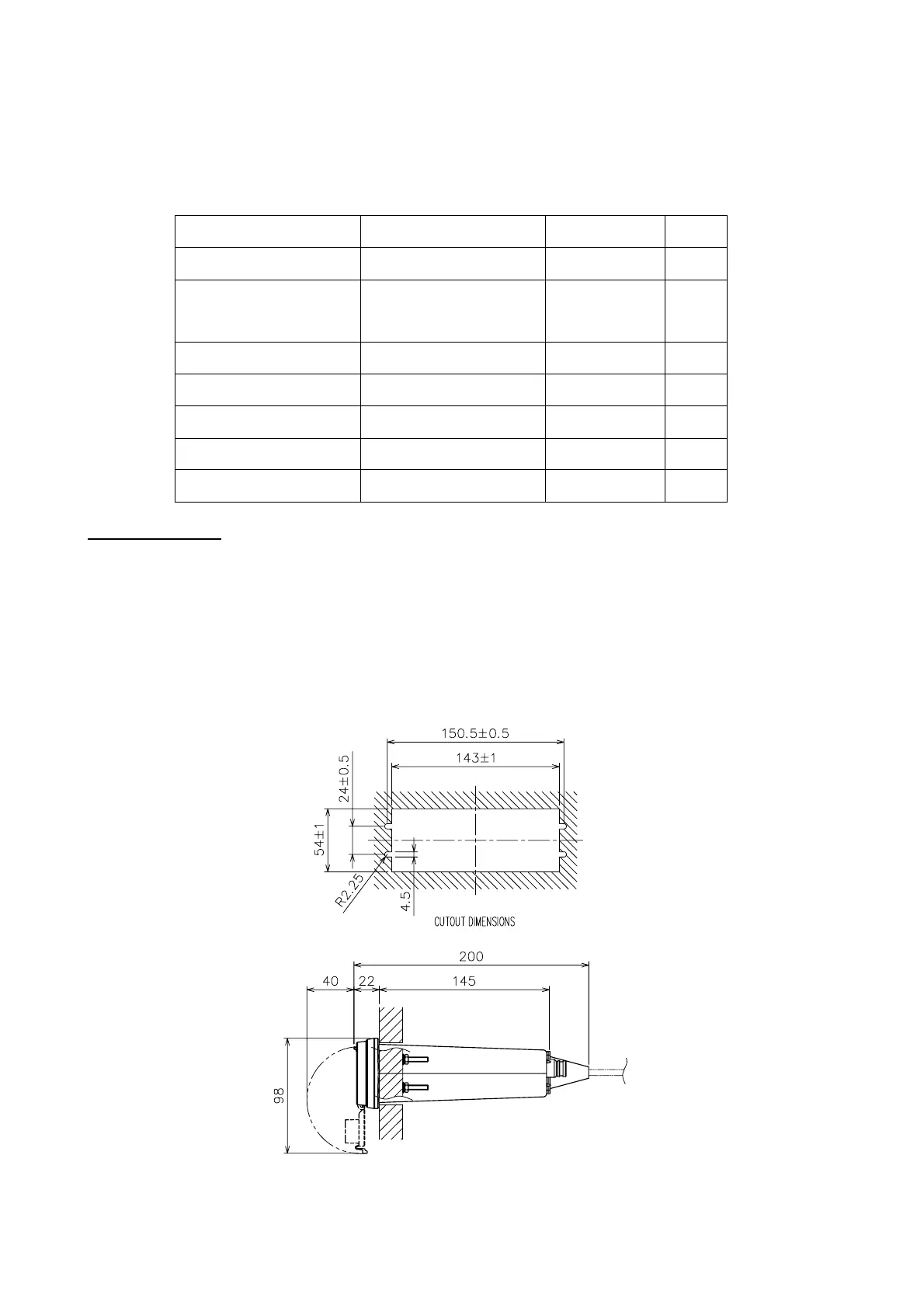

Flush mounting
This unit can be flush-mounted in a panel with the standard installation materials.
1. Prepare a cutout in the mounting location, referring to the outline drawing at the end of
this manual.
2. Screw in the threaded rods to the flange of the front panel of the unit securely by hands.
3. Set the unit to the cutout.
4. Insert the flat washer, spring washer and nut in that order for each rod and fasten the
nuts.
Flush mounting
