1. MOUNTING
1-23
1.5.2 Range Selector
Change analog output to allow analog scales of -2 to 6 kn in addition to -10 to 30 kn.
Installation considerations
• The temperature and humidity of the mounting location should be moderate and
stable.
• Avoid locations near the air intake, dusty storage or where water splashing.
• Mount the unit where shock and vibration are minimal.
1.5.3 Analog Display Unit
The analog display units show the ship speed in the clockwise direction (For SL-200-
5 and SL-200-5W, the ship speed in the counterclockwise direction).

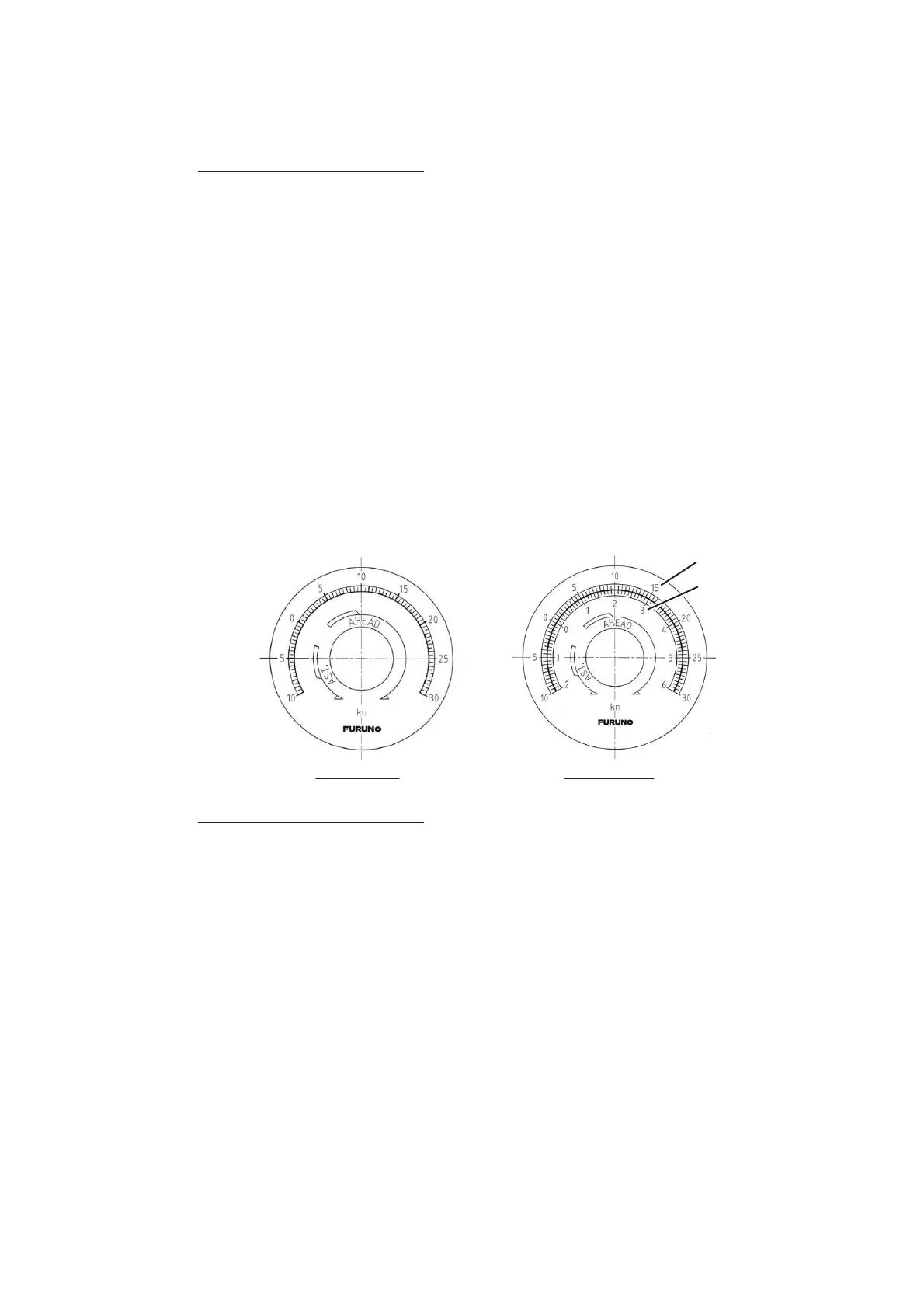

There are two types of range scales according to the model of the analog display unit;
single scale and double scale.
For double scale display units, there are scales on the outside and the inside. You can
switch the scale between the scale on the outside and the inside with the range selec-
tor MF-2R-1 / 2. If the range selector is not connected, only the outer scale is valid.
Installation considerations
The analog indicator is an ammeter. An error may occur if a strong magnetic field ex-
ists nearby. Keep away from transformers and power supplies as much as possible.
Avoid places subject to rain or seawater splashes and high temperatures or where
there is high humidity and vibration.
1.5.4 Remote Controller
For installation and cable connection of Remote Controller RD-501, see the operator’s
manual of the connected sub display (RD-20: OME-44540, RD-50: OME-44530) for
your reference.
1.5.5 Dimmer Controller
The dimmer controller has two types as below.
Single scale Double scale
To Next Page
