2. WIRING
2-11

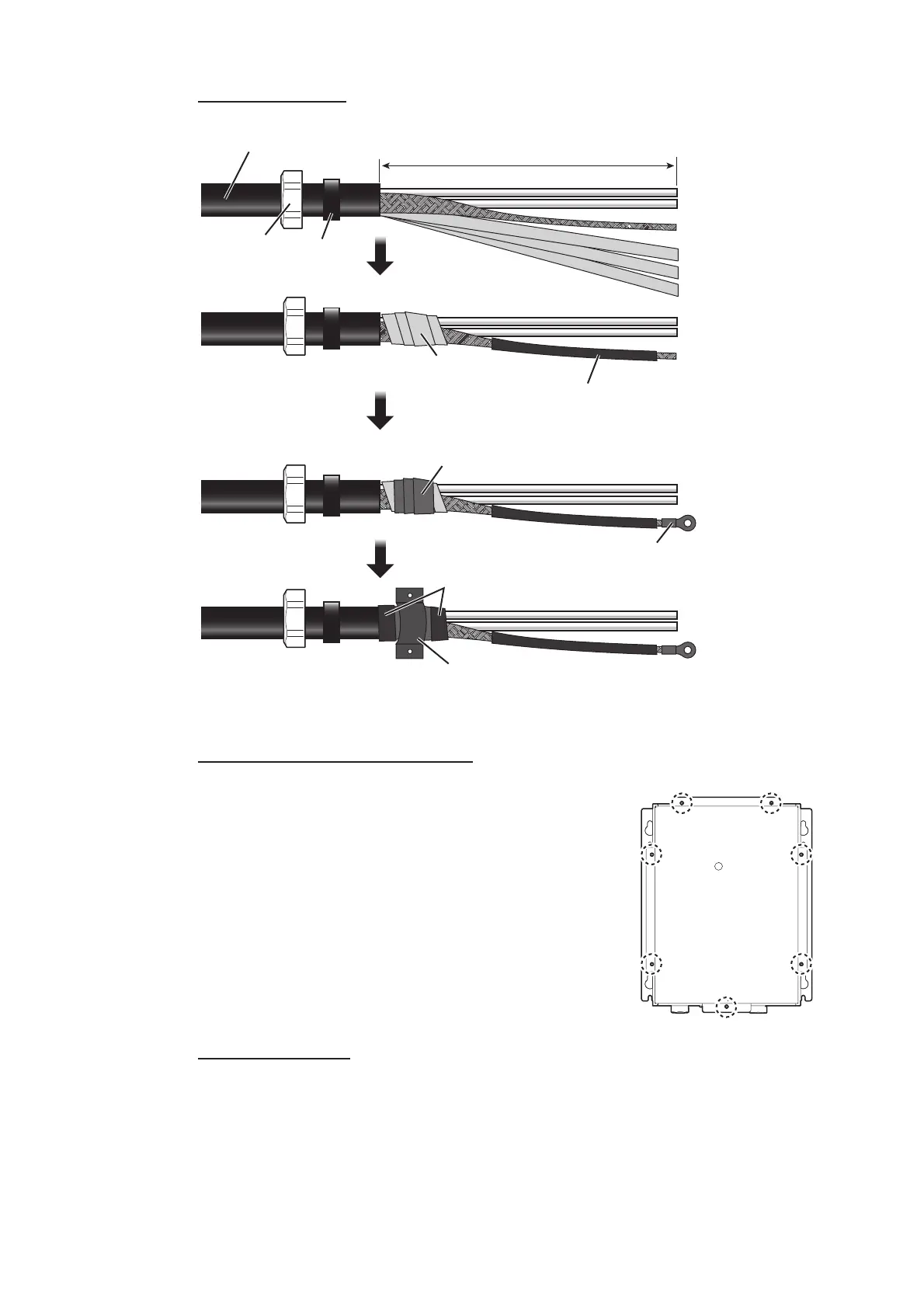

Transducer cable
2.5.2 How to connect the cables
How to open/close the top cover
Unfasten seven screws to open the top cover.
After the appropriate cable connections are com-
pleted, fasten seven screws to close the top cover.
Cable Connection
Connect the signal cable and the transducer cable from the distributor unit as shown
below. Refer to the interconnection diagram at the back of this manual for connection
details.
Wrap the aluminum tape.
Wrap the supplied conductive tape CCTE-20.
Wrap the both sides of the conductive tape with vinyl tape.
ShieldShield
GasketGasket
SC lockSC lock
Clamp on the conductive tape.Clamp on the conductive tape.
100
Aluminum tape
(Do not remove this tape.)
Aluminum tape
(Do not remove this tape.)
Outer sheath (Armor for cable with no outer sheath)Outer sheath (Armor for cable with no outer sheath)
Pass a heat shrinkable tube (local supply)
onto the drain wire.
Attach the crimp-on lug to the core.
To Next Page
