3. ADJUSTMENTS
3-5

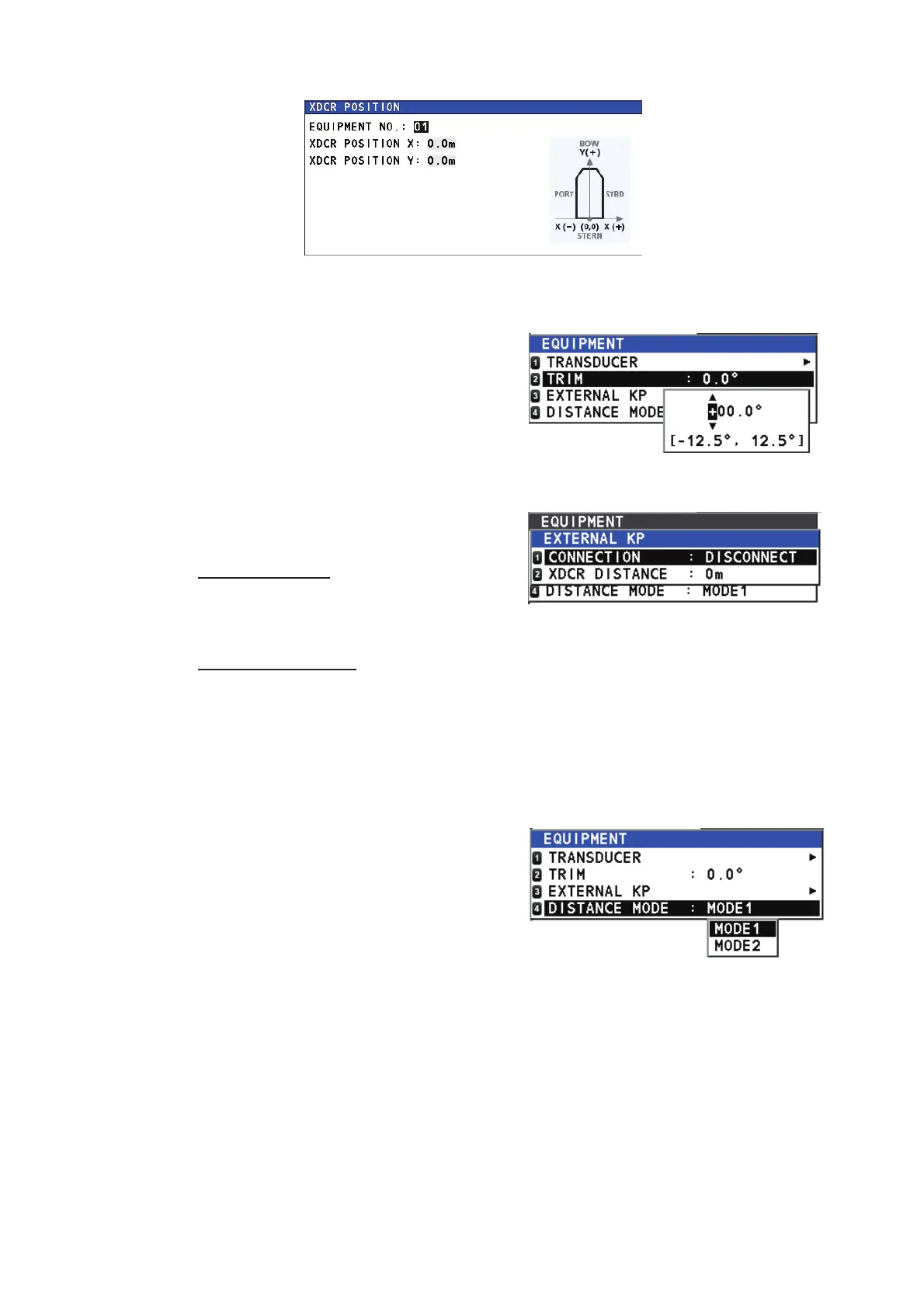

3.1.2 [TRIM] menu
On the [EQUIPMENT] sub menu, select
[TRIM] to set the correction for ship an-
gle.
The setting range is -12.5° to 12.5° (de-
fault: 0°).
3.1.3 [EXTERNAL KP] menu
On the [EQUIPMENT] sub menu, select
[EXTERNAL KP] to set up external KP.
[CONNECTION]
Select [CONNECT] when an external KP
is connected, if not [DISCONNECT].
[XDCR DISTANCE]
Set the distance between the transducers that are connected to the external KP. This
setting automatically adjusts the delay time for signal processing, based on the set dis-
tance. The setting range is 0 to 250 m (default: 0 m).
3.1.4 [DISTANCE MODE] menu
On the [EQUIPMENT] sub menu, select
[DISTANCE MODE].
Select the speed calculation mode to
use when normal speed calculation is
not available.
[MODE1]: Distance is NOT added,
pulse is NOT output (default).
[MODE2]: Distance is added, pulse is output, using the ship’s last calculated speed.
