Furuno FA-70 User Manual

1. INSTALLATION
1-10

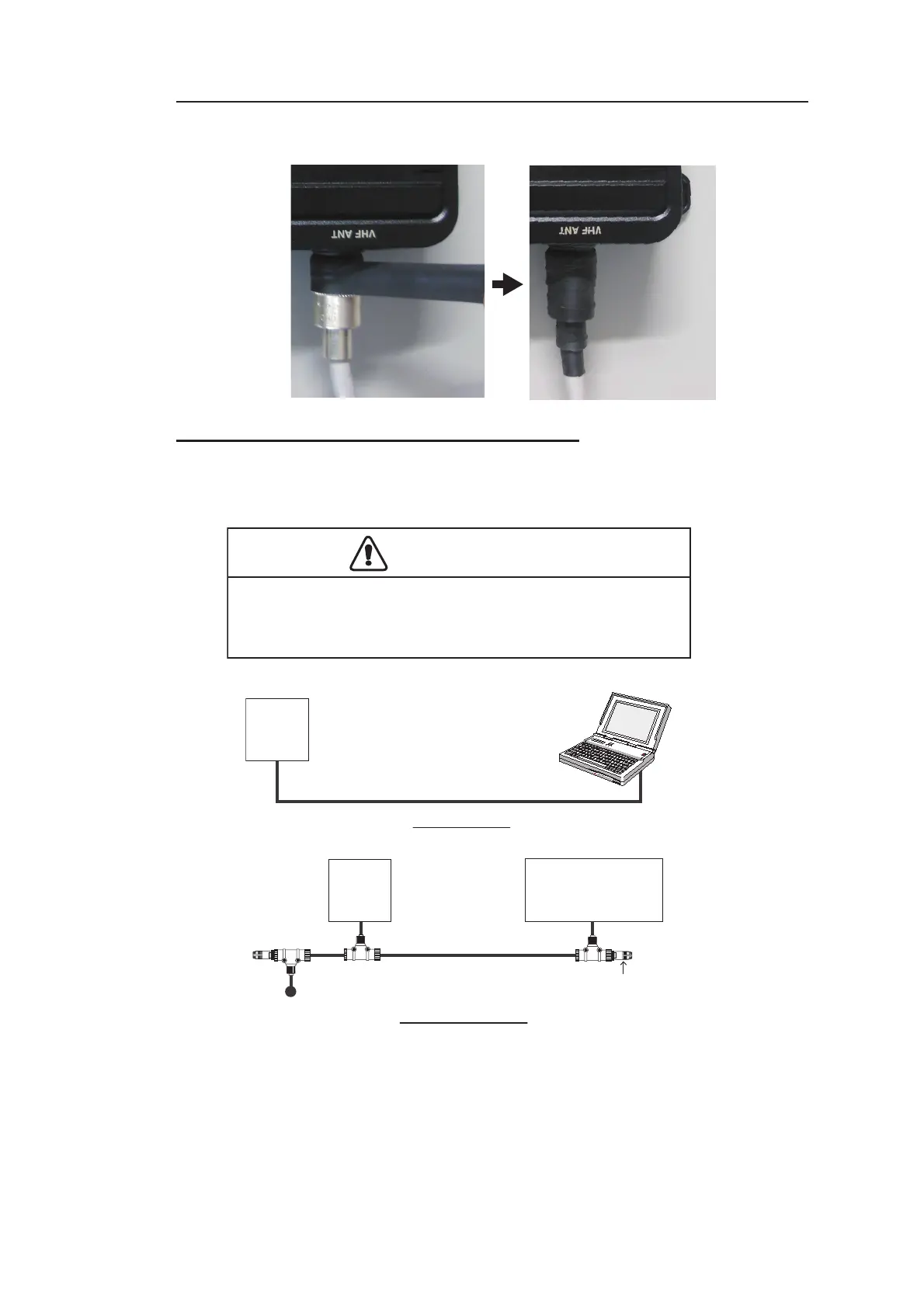

How to waterproof the connector for VHF antenna and VHF radiotelephone
Wrap the connector for VHF antenna and VHF radiotelephone with vulcanizing tape.
Connection with the PC and NavNet TZtouch2/3
The FA-70 may be connected to a PC or TZTL12F/TZTL15F/TZT12F/TZT16F/
TZT19F. See the figure below for connection examples.
CAUTION
PC connected by USB is only powered by a battery.
Short circuit can result if the PC is connected to ground.
FA-70
TZTL12F/15F,
TZT12F/16F/19F
FA-70 and PC
USB
FA-70
NMEA2000
FA-70 and NavNet
PC
15 VDC
Terminator
