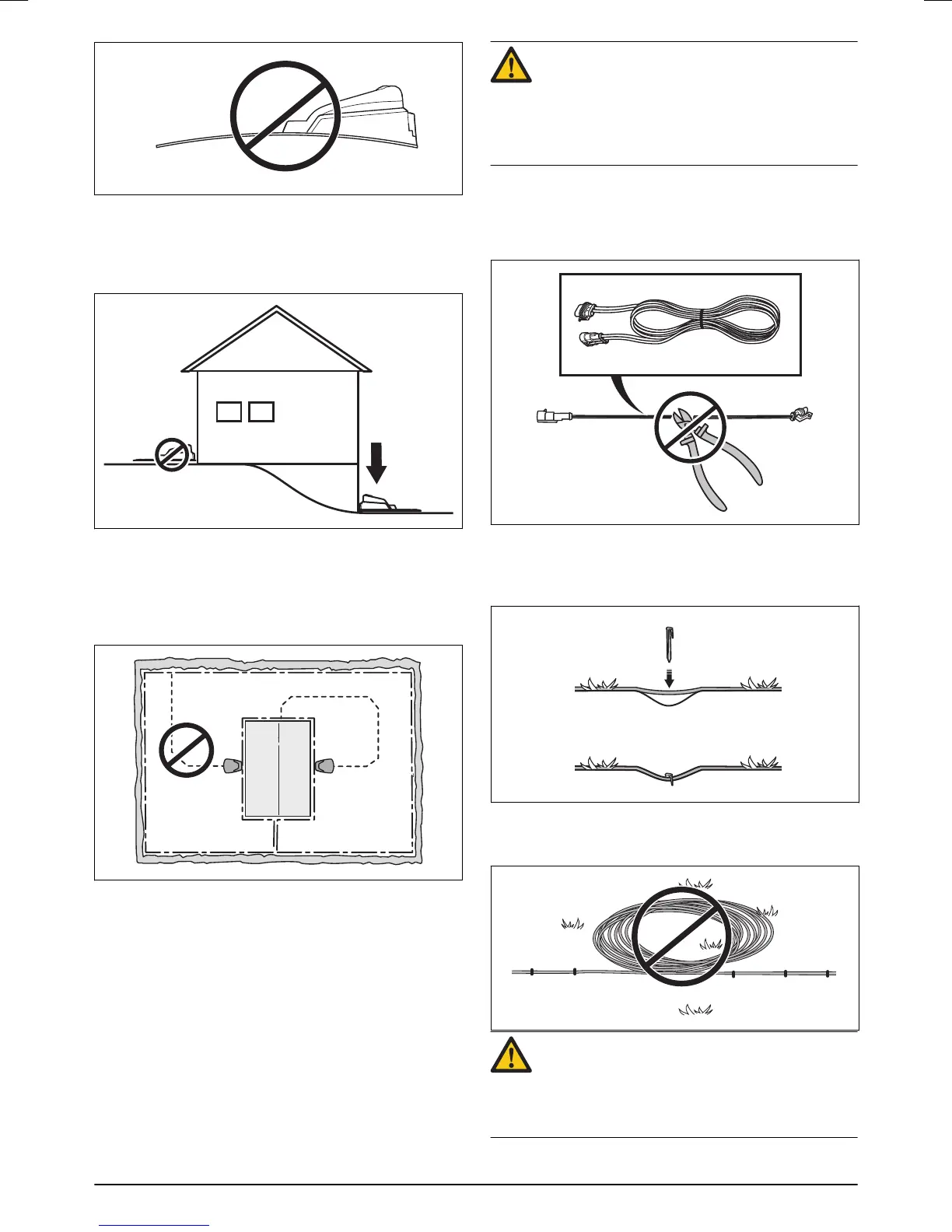

If the installation is done in a working area with a steep
slope, the charging station should be placed at the
bottom of the slope. This makes it easier for the robotic
lawnmower to follow the guide wire to the charging
station.
The charging station should not be placed on an island
as this limits the laying of the guide wire in an optimal
way. If the charging station has to be installed on an
island, the guide wire also has to be connected to the
island. Read more about islands in the Boundaries
within the working area on page 15 .
3.3.2 Connecting the power supply
Consider the following when planning where to place the
power supply:
• Close to the charging station
• Protection from rain
• Protection from direct sunlight
The power supply must be placed where it is well
ventilated and must be placed under a roof. If the power
supply is connected to an electrical socket outdoors, this
must be approved for outdoor use. It is recommended to
use an earth fault-breaker (RCD) when connecting the
power supply to the wall socket.
WARNING: Applicable to USA/Canada. If power
supply is installed outdoors: Risk of Electric
Shock. Install only to a covered Class A GFCI
receptacle (RCD) that has an enclosure that is
weatherproof with the attachment plug cap
inserted or removed.
No parts of the power supply must be changed or
tampered with. For example the low voltage cable must
not be shortened or extended. Low voltage cables with 3
m or 20 m length are avalible as optional accessories.
It is possible to let the low voltage cable cross the
working area if it is stapled down or buried. The cutting
height should be such that the blades can never come in
contact with the low voltage cable.
The low voltage cable must never be stored in a coil or
under the charging station's base plate as this can
interfere with the signals from the charging station.
WARNING: Do not under any circumstances
mount the power supply at a height where there
is a risk it can be submerged in water (minimum
30 cm from the ground). It is not permitted to
place the power supply on the ground.
12 - Installation 303 - 001 - 21.09.2017

Gardena R38Li Specifications

General

Type	Robotic lawn mower
Noise level	58 dB
Display type	LCD
Cutting width	170 mm
Grass catcher	No
Product color	Black, White
Cutting system	-
Number of blades	3
Maximum lawn area	380 m²
Recommended lawn area	- m²
Maximum cutting height	50 mm
Minimum cutting height	20 mm
Grass collecting volume	- L
Suitable for slope up to	25 %
Automatic base station return	Yes
Power source	Battery
Charging time	1 h
AC input voltage	18 V
Battery capacity	1.6 Ah
Battery life (max)	65 min
Power consumption per month (max)	4 kWh

Weight and Dimensions

Depth	580 mm
Width	460 mm
Height	260 mm
Weight	7400 g
