8
Installation
Installing the Display

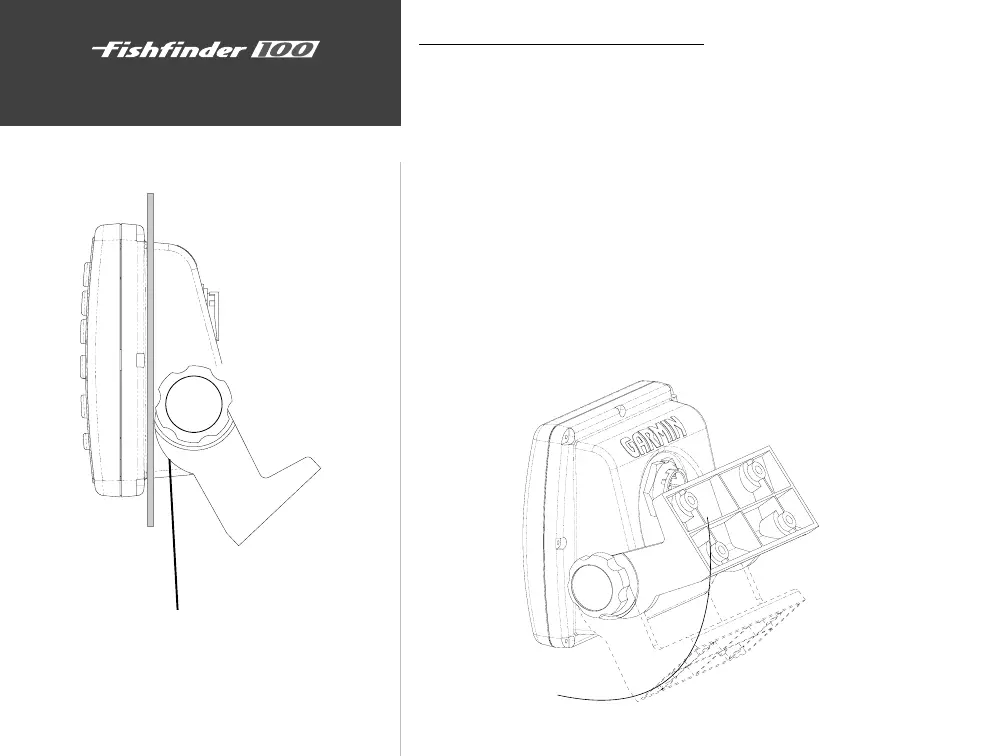

Display Installation (Flush Mount)
The Fishfinder 100 can be mounted flush against the dash or electron-
ics rack that is no more than 1/4” thick.
Flush Mounting the Display:
1. Remove the Surface Mount Bracket and Knobs.
2 Cut a 4.3”W x 4.35”H relief hole where the unit will be mounted.
3. Place the display in the relief hole and tape in place.
4. Reinstall the knobs in the unit. Install the surface mount with the cam
lobes pointed toward the unit.
5. Rotate the surface mounting bracket forcing the cam lobes to pull the
unit tight against the surface. Tighten the knobs.
Pull bracket down until cam lobe contacts surface
To Next Page
