On the Water
Transducer Coverage
Transducer Coverage

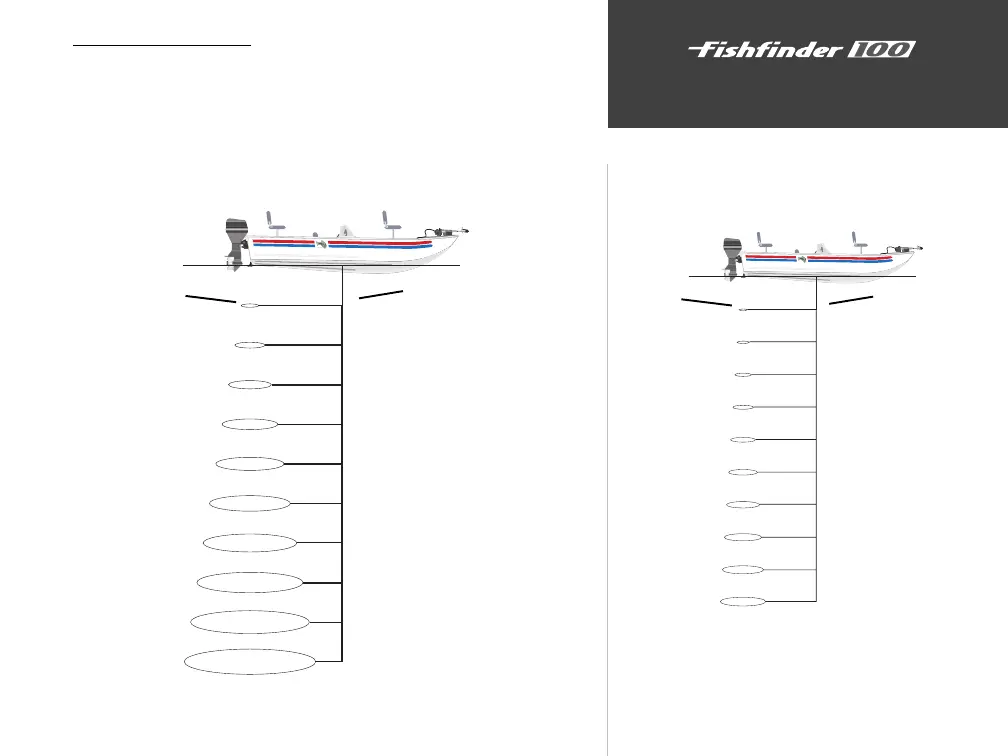

The area covered by the transmitted sound waves is determined by the
cone angle of the transducer and the water depth. Using Garmin’s standard
20° transducer, the coverage is approximately 1/3rd of the water depth. As
shown in Example 1, the coverage area at a 30 foot depth is approximately
a 10 foot diameter circle. The scale below illustrates how coverage
increases as depth increases.
1'
10'
9'
8'
7'
6'
5'
4'
3'
2'
3'
6'
9'
12'
15'
18'
21'
24'
27'
30'
Depth
Example 1.
Coverage
Diameter
4"
10"
15"
20"
25"
30"
35"
40"
45"
45"
3'
6'
9'
12'
15'
18'
21'
24'
27'
30'
8° Transducer Coverage Chart
Depth
Coverage
Diameter
