INSTALLING THE FISHFINDER 160C > PACKING LIST
INSTALLING THE FISHFINDER 160C
Read these instructions before attempting installation. Make sure
you completely understand these instructions before you begin.
When in doubt, seek professional assistance.
Be sure the wiring harness reaches the unit and transducer location
before beginning installation. The Garmin Fishfinder 160C hardware
allows for installation on either the transom or trolling motor. Check
the packing list below. If you are missing any items, contact your
Garmin dealer.
A–Fishfinder 160C Sonar Unit (1)
B–Swivel Mount Bracket (1)
C–Swivel Base (1)
D–Mounting Knobs- Short, Long (1ea)
E–Mounting Knob Spacer (1)
F–Transducer With Power Cable (1)
G–Transducer Mount (1)
H–Trolling Motor Mount Gasket (1)
I–5 mm Flat Washers (2)
J–4 x 12 mm Screws (4)
K–10-32 Lock Nut (1)
L–5 x 30 mm Screws (2)
M–10-32 x 1.75 Screw (1)
N–1/4" Cable Clamps (2)
O–Plastic Spacer (1)
P–1/4" Rubber Washer (1)
Q–Cable Tie, 5.6" (4)
R–Cable Tie, 20" (1)
S–Power/Data Cable
(not shown)

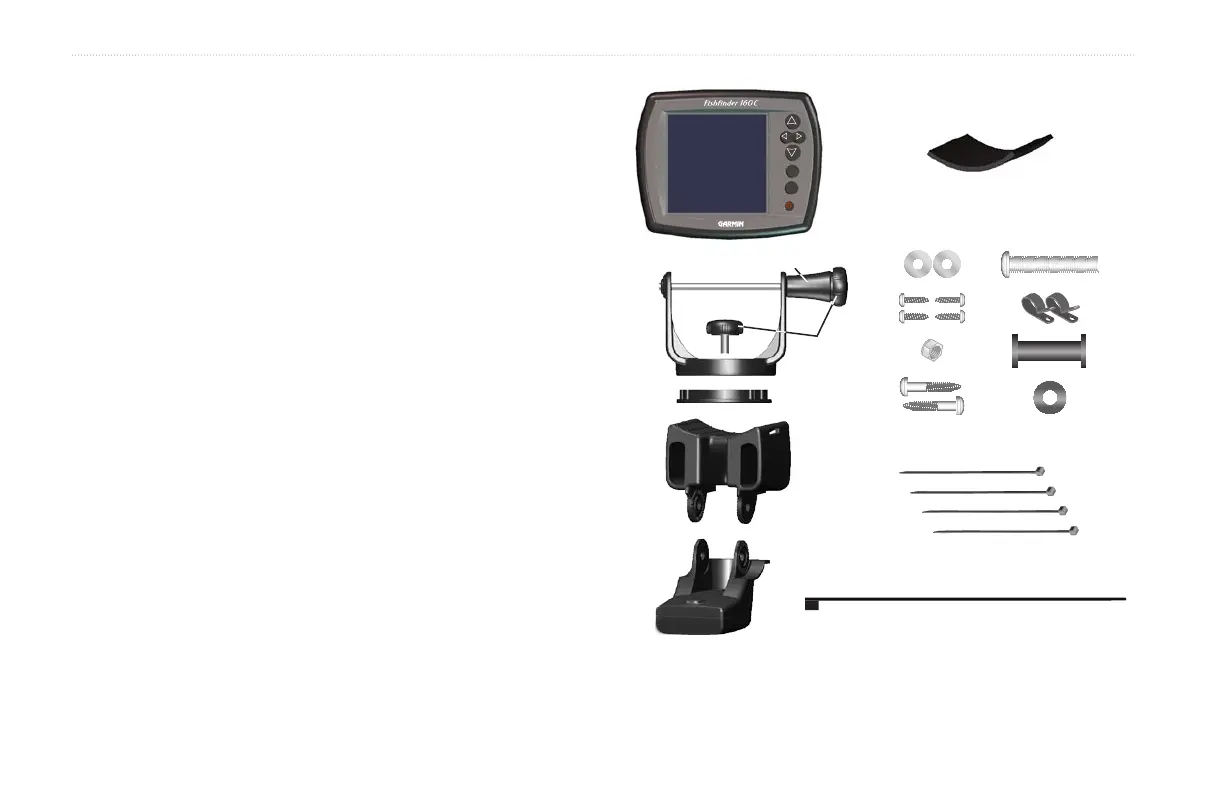

Packing List
ENTER
MENU
A
C
D
I
J
K
L
M
G
F
(Cable not shown)
N
O
P
Q
H
B
R
E

Garmin Fishfinder 160C Specifications

General

Display resolution	128 x 128 pixels
Audible alarm(s)	Yes

Weight and Dimensions

Weight	499 g
Dimensions (WxDxH)	155 x 74 x 124 mm
