Garmin GEA 71 Installation Manual

GEA 71 Installation Manual Page 4-1
190-00303-40 Revision F
4 SYSTEM INTERCONNECTS
4.1 Pin Function List
4.1.1 P701 Connector

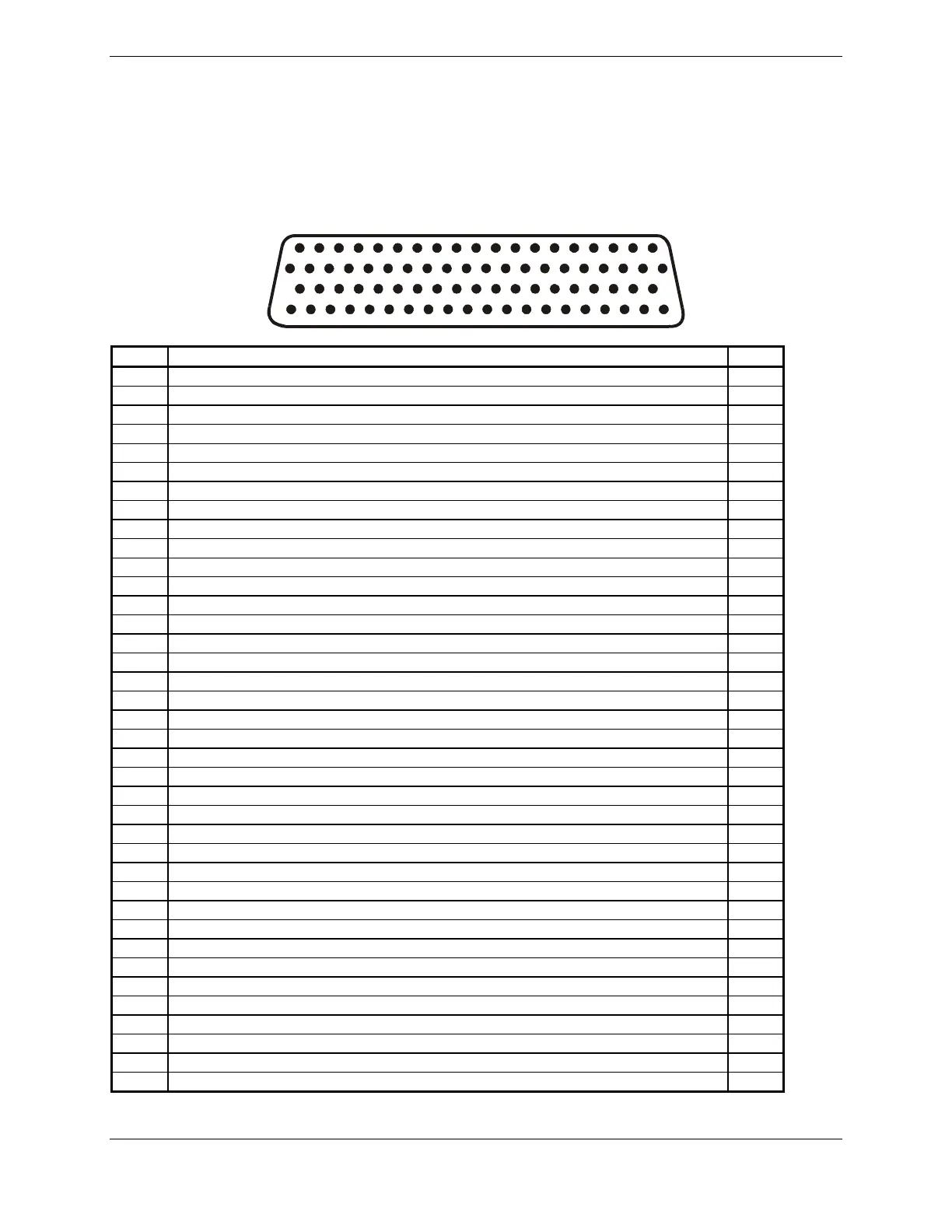

View of P701 connector looking at rear of unit.
1 2 3 4 5 6 7 8 9 10 11121314151617181920
21 22 23 24 25 26 27
28 29
30 31 32 33 34 35 36 37 38 39
40
41 42
43 44 45 46 47 48 49 50 51 52 53 54 55 56
57
58 59
60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78
Pin Pin Name I/O
1 CONFIG MODULE GROUND --
2 DIGITAL IN* 1 In
3 DIGITAL IN* 2 In
4 SIGNAL GROUND --
5 RS 485 1 A I/O
6 RS 485 1 B I/O
7 RS 485 2 A I/O
8 RS 485 2 B I/O
9 GEA SYSTEM ID PROGRAM* 1 In
10 GEA SYSTEM ID PROGRAM* 2 In
11 TRANSDUCER POWER OUT LO (GROUND) --
12 TRANSDUCER POWER OUT LO (GROUND) --
13 TRANSDUCER POWER OUT LO (GROUND) --
14 +10 VDC TRANSDUCER POWER OUT Out
15 +5 VDC TRANSDUCER POWER OUT Out
16 +12 VDC TRANSDUCER POWER OUT Out
17 ENGINE TEMP ANALOG IN 6 HI In
18 ENGINE TEMP ANALOG IN 6 LO In
19 SIGNAL GROUND --
20 POWER GROUND --
21 CONFIG MODULE POWER Out
22 ANALOG IN 1 HI In
23 ANALOG IN 1 LO In
24 ANALOG IN 2 HI In
25 ANALOG IN 2 LO In
26 ENGINE TEMP ANALOG IN 1 HI In
27 ENGINE TEMP ANALOG IN 1 LO In
28 ENGINE TEMP ANALOG IN 2 HI In
29 ENGINE TEMP ANALOG IN 2 LO In
30 ENGINE TEMP ANALOG IN 3 HI In
31 ENGINE TEMP ANALOG IN 3 LO In
32 SIGNAL GROUND --
33 ENGINE TEMP ANALOG IN 4 HI In
34 ENGINE TEMP ANALOG IN 4 LO In
35 AIRCRAFT POWER 1 In
36 ENGINE TEMP ANALOG IN 5 HI In
37 AIRCRAFT POWER 2 In
38 ENGINE TEMP ANALOG IN 5 LO In
