APPENDIX A OUTLINE AND INSTALLATION DRAWINGS
GEA 71 Installation Manual Page A-1 (Page A-2 Blank)
190-00303-40 Revision F
6.30 160.02
7.26 184.40
7.65 194.31
8.74 221.87
4.30 109.22
3.00 76.20
6.90 175.26
TYP
.36
TYP
9.14
.48
TYP
12.19
1.20 30.48
WITHOUT DIMPLES
1.23 31.12
WITH DIMPLES
.60 15.24
J702
J701
.48
TYP
12.19
.36
TYP
9.14
4X
.38 9.58
4X
3.73 94.67
NOTES:
1. DIMENSIONS: INCHES [mm]
2. DIMENSIONS ARE SHOWN FOR REFERENCE ONLY.
3. MOUNTING HOLE FOR #6 FLAT HEAD 100
CSK SCREW (12 PLACES)
SEE NOTE 3

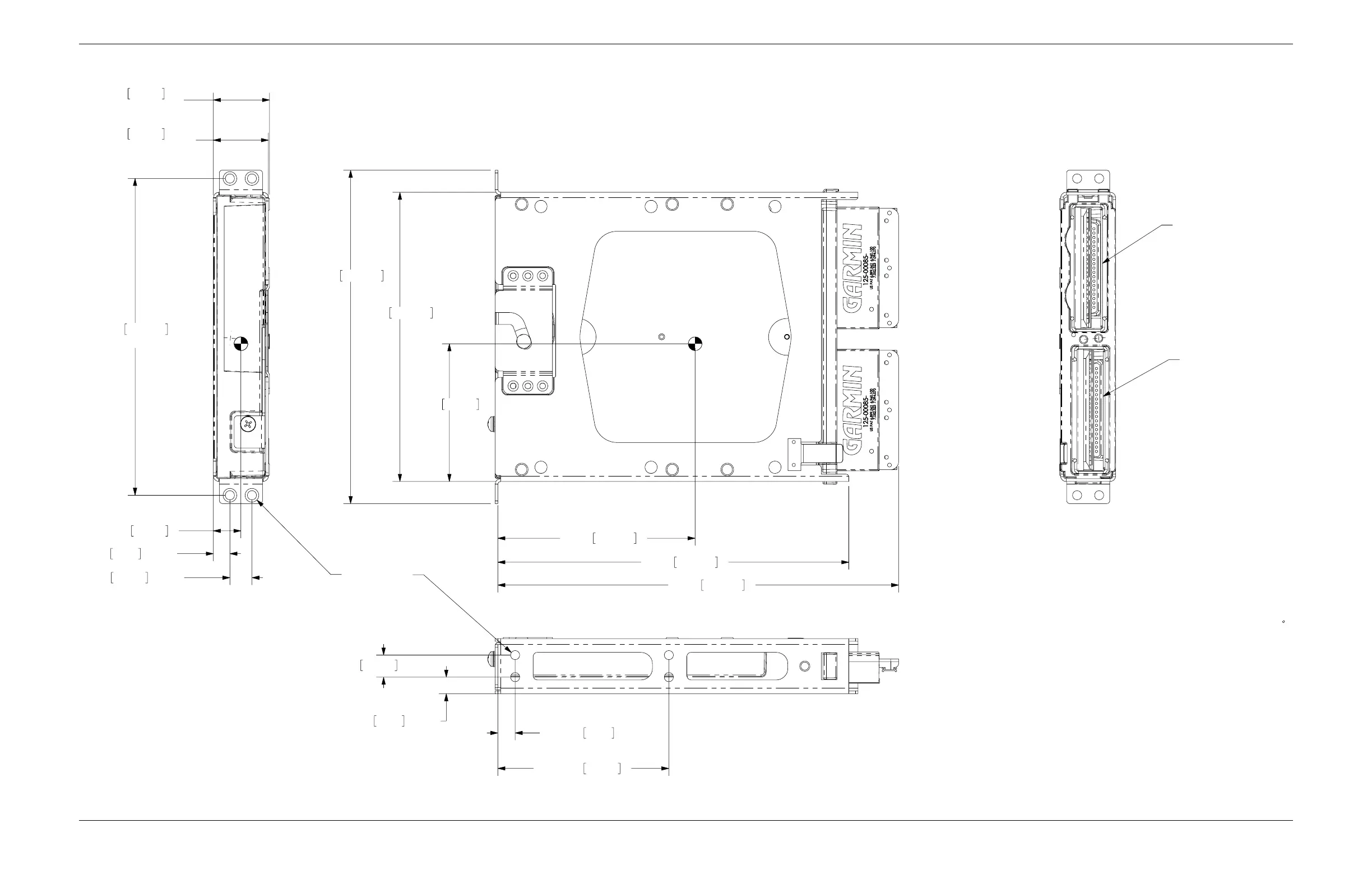

Figure A-1. GEA 71 Outline Drawing
