GMA 1347D Installation Manual Page 2-5
190-00303-21 Revision C
2.6 Mounting Requirements
The GMA 1347D mounting surface must be capable of providing structural support and electrical bond to
the aircraft to minimize radiated EMI and provide protection from High-Intensity Radiation Fields
(HIRF).
The GMA 1347D is mounted using its own system rack. Figure 2-2 shows the GMA 1347D unit rack.
The unit rack is fastened to the aircraft instrument panel using the nutplate kit and bracket kit listed in
Section 2.2.1. Refer to Figure A-2, GMA 1347D Connector/Rack Assembly Drawing, for nutplate
placement locations. The installer must provide any additional remote mounting equipment.
NOTE
To ensure a sturdy mount, rear support is highly recommended.

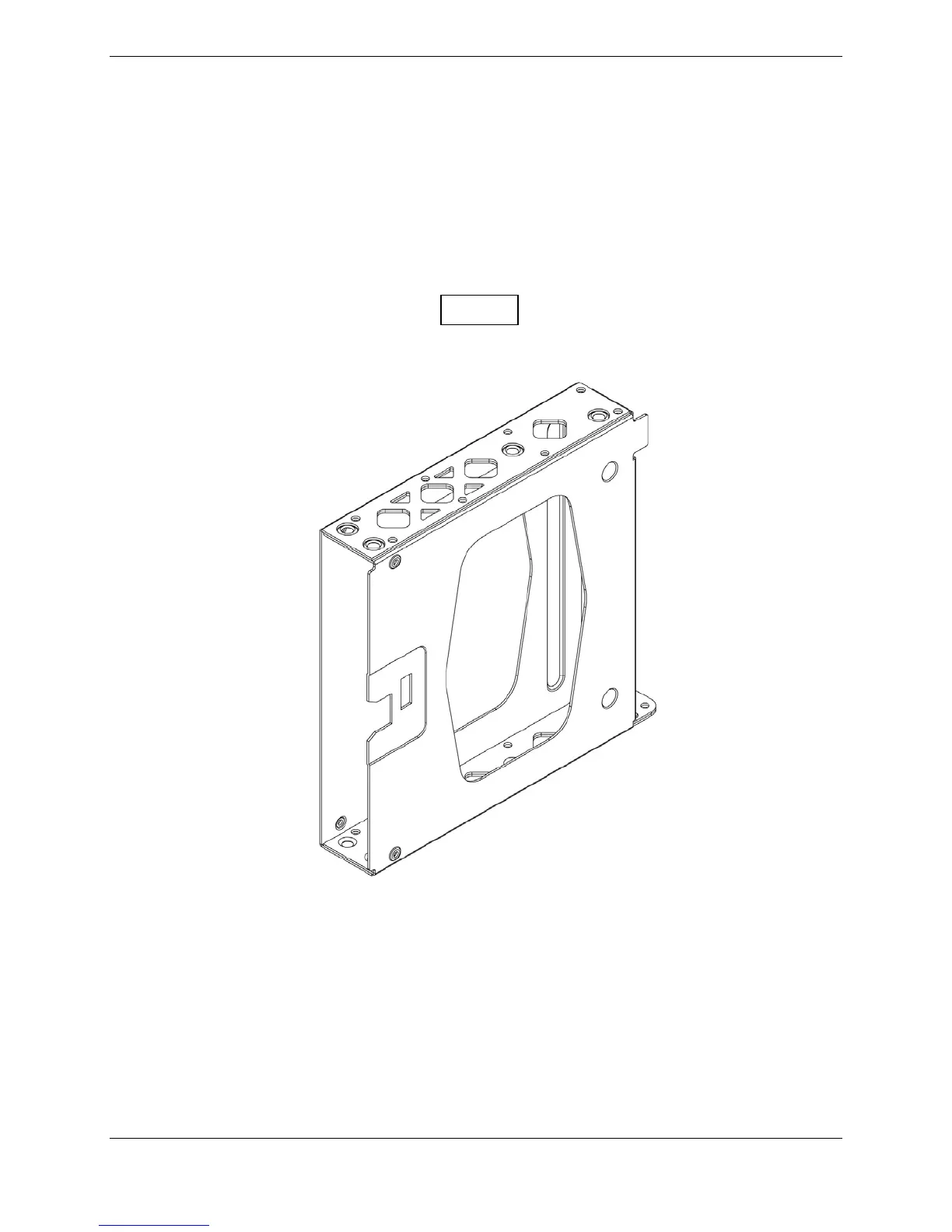

Figure 2-2. GMA 1347D Unit Rack
