APPENDIX B INTERCONNECT DRAWINGS
GMA 1347D Installation Manual Page B-1 (Page B-2 blank)
190-00303-21 Revision C

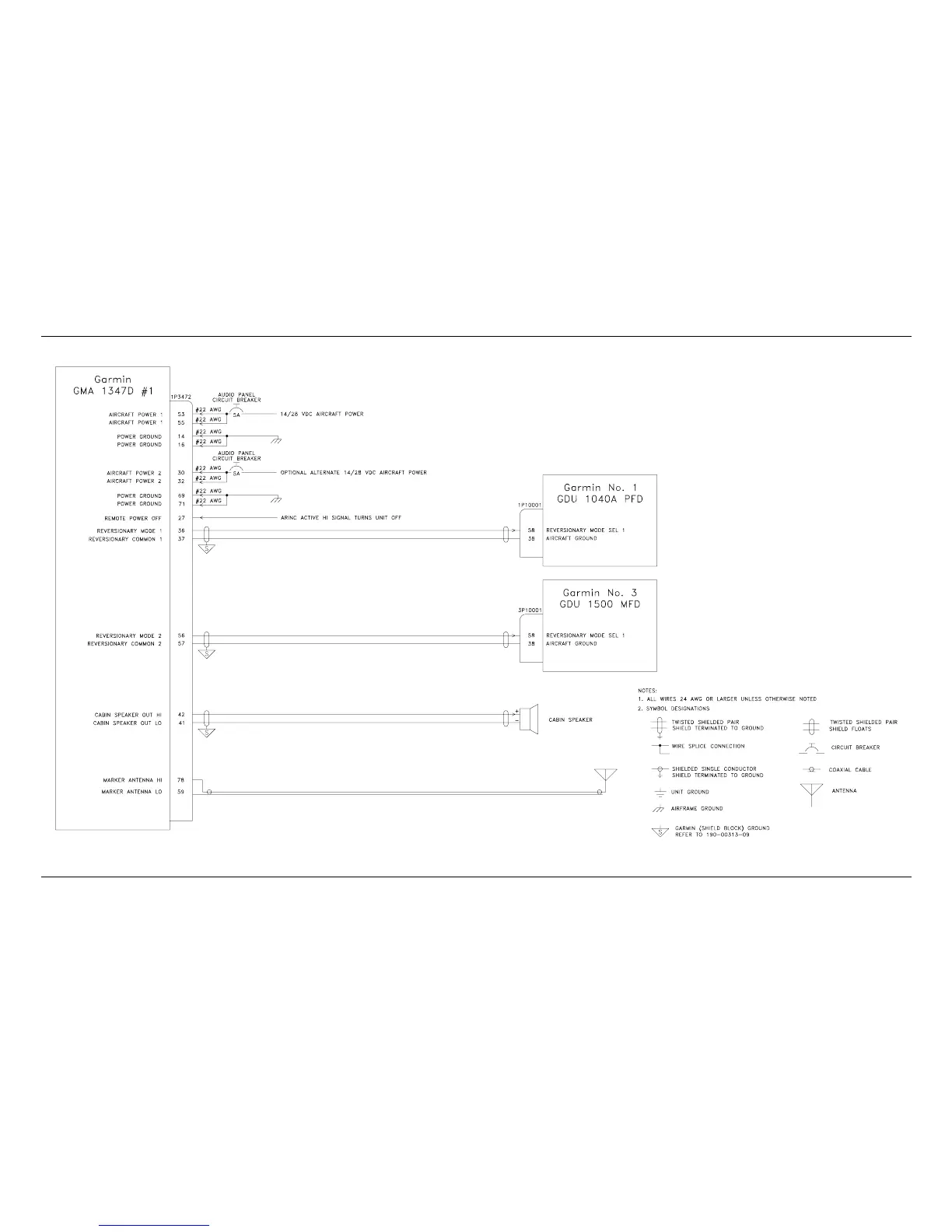

Figure B-1. GMA 1347D Power, Antenna and Reversionary Mode Interconnect Wiring Diagram
