190-01182-02 GTR 225/GNC 255 TSO Installation Manual
Rev. F Page 5-1

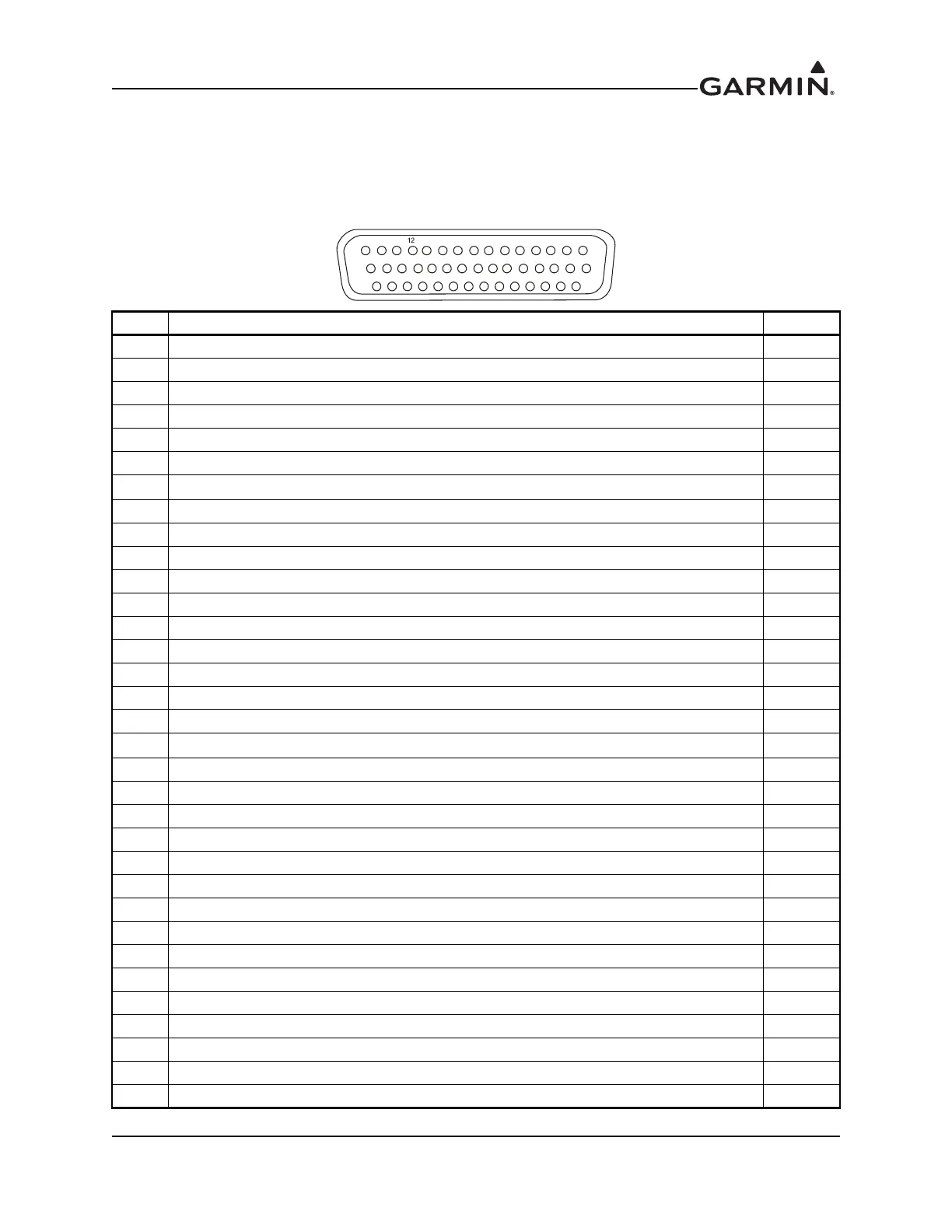

5 CONNECTOR PINOUT INFORMATION
5.1 Pin Function List
5.1.1 J2001 Connector – COM Board
(View looking at rear of unit, Pin 1 is top right)
Pin Pin Name I/O
1 RS-232 OUT 1 Out
2 LIGHTING HI 2 In
3 AUX AUDIO LINE LEVEL HI In
4 RESERVED --
5 COM MIC 1 AUDIO IN HI In
6 COM MIC 2 AUDIO IN HI In
7
500
 COM AUDIO HI
Out
8 LIGHTING HI 1 In
9 RESERVED --
10 RESERVED --
11 COM MIC 1 KEY* In
12 INTERCOM ENABLE* In
13 SPEAKER OUT Out
14 RESERVED --
15 RESERVED --
16 RS-232 IN 1 In
17 RESERVED --
18
500
 COM AUDIO LO
--
19 AUX AUDIO LINE LEVEL GND --
20 MIC AUDIO IN LO In
21 RESERVED --
22 LIGHTING LO 1 In
23 RESERVED --
24 RESERVED --
25 RESERVED --
26 COM MIC 2 KEY* In
27 COM REMOTE TRANSFER* In
28 COM REMOTE TUNE UP* In
29 COM REMOTE TUNE DOWN* In
30 AIRCRAFT POWER In
31 RS-232 GND --
32 LIGHTING LO 2 In
33 RESERVED --
1
2
34567891011131415
1617181920
222324252627282930
21
3132333435363738394041424344

Garmin GTR 225 Specifications

General

Input Voltage	11-33 VDC
Operating Voltage	11-33 VDC
Operating Temperature	-20°C to +55°C
Frequency Range	118.000 MHz to 136.975 MHz
Channel Spacing	25 kHz
Transmit Power	10 W
Current Consumption	1.5 A (max transmit)
