GE 345 Communications Manual

CHAPTER 1: COMMUNICATIONS GUIDE ETHERNET INTERFACE
345 TRANSFORMER PROTECTION SYSTEM – COMMUNICATIONS GUIDE 1–67

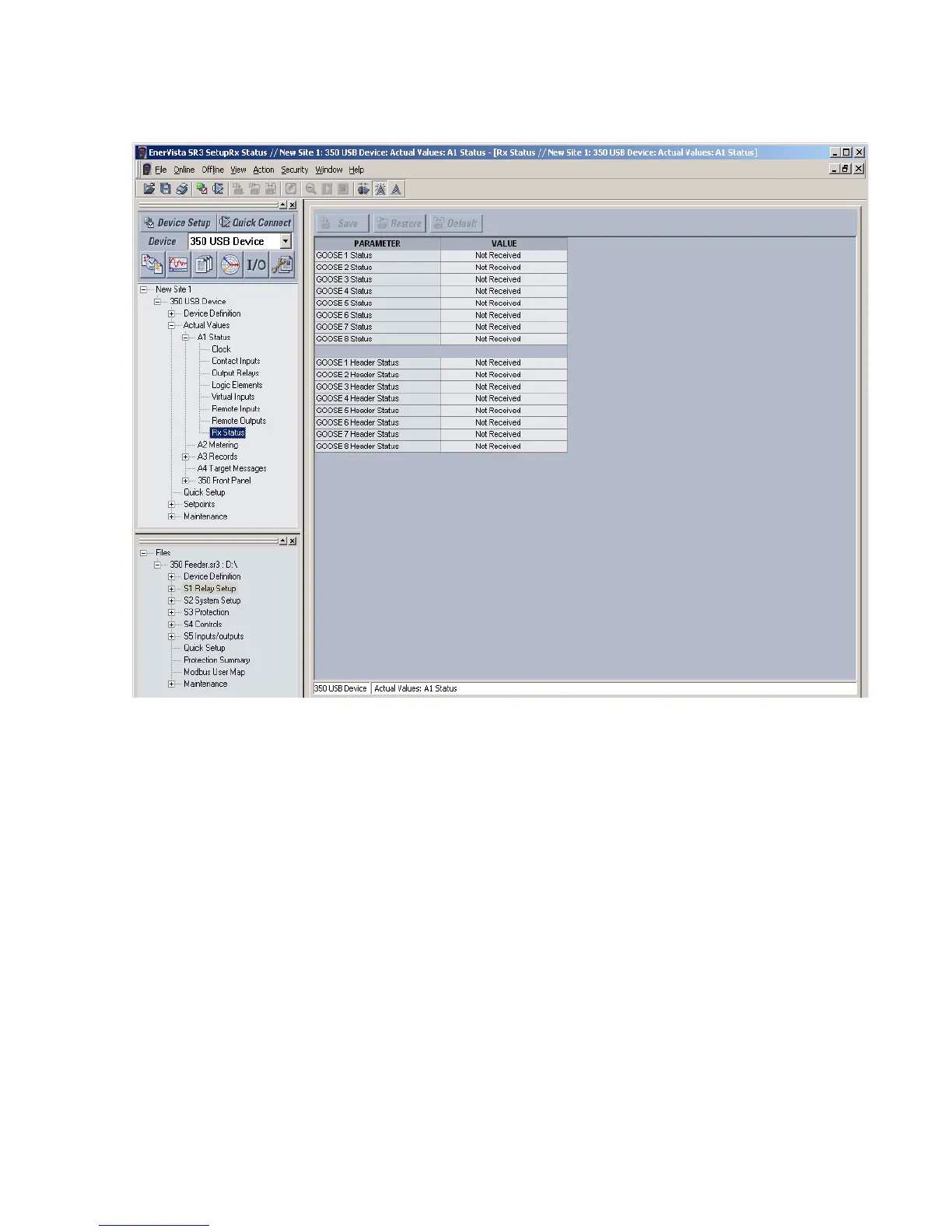

Figure 3: EnerVista SR3 GOOSE Status page
GOOSE Rx headers The 345 firmware supports GOOSE messages that contain up to one level of nesting, and
that are capable of mapping only digital values to the remote inputs.
The 345 firmware maintains the format of GOOSE messages that can be received in
MODBUS registers.
Configuration of GOOSE messages to be received by the device, is implemented using the
EnerVista SR3 Setup software, as shown below, either by reading in and parsing the ICD, or
SCD file from a remote device, or by manually configuring the settings.
