CHAPTER 1: COMMUNICATIONS GUIDE ETHERNET INTERFACE
345 TRANSFORMER PROTECTION SYSTEM – COMMUNICATIONS GUIDE 1–69
Bool, Byte, Ubyte, Short, Ushort, Long, Ulong, Int64, Uint64, Float, Double, Btime4, Btime6,
Utctime, Bcd, Vstring, , Ostring, OVstring, Bstring, Bvstring

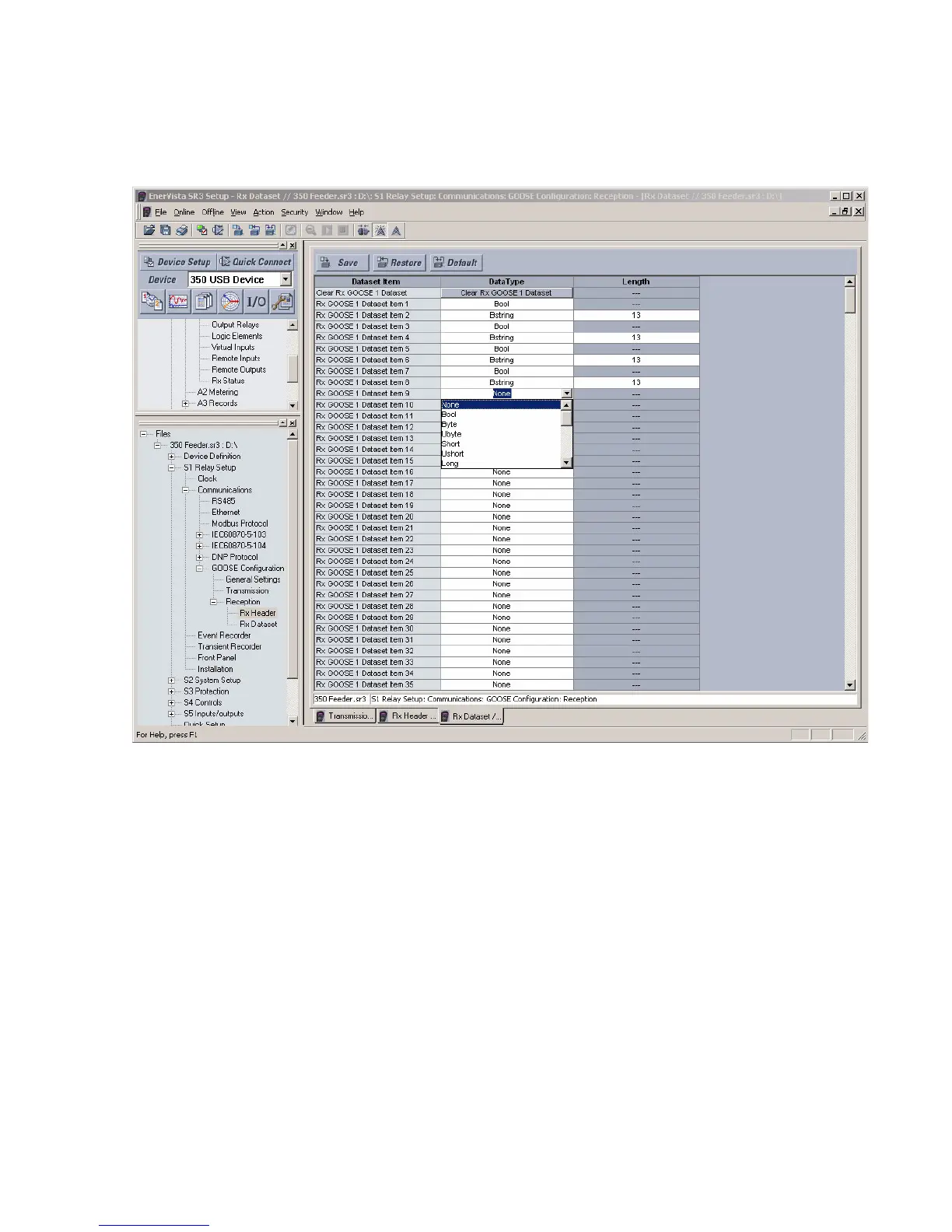

Figure 5: EnerVista SR3 GOOSE Dataset
GOOSE remote inputs The firmware allows the user to map each of the digital data points received in a data set,
configured for reception, to one of 32 GOOSE remote inputs.
More than 1 GOOSE remote input can be mapped to the same data element, in a data set
belonging to a received GOOSE message.
GOOSE remote inputs can only be mapped to digital data elements.
The firmware considers a GOOSE remote input to be in the “on/off” state when the digital
data element to which it is mapped, is in the “on/off” state.
The firmware allows the user to assign a string name to each of the 32 remote inputs, and
allows the string name assigned to each remote input to be between 1 and 32 characters.
