• PUSHBTN 1 MESSAGE: This setting controls the behavior of the user-programmable pushbutton that is programmed
in the PUSHBTN 1 ID and PUSHBTN 1 ON TEXT settings, and the behavior of the user-programmable pushbutton off mes-
sage that is programmed in the PUSHBTN1 ID and PUSHBTN 1 OFF TEXT settings.
When set to "Disabled", user-programmable pushbutton messages do not display. Otherwise the on message displays
when the user-programmable pushbutton becomes activated, and if in the "Latched" mode the off message displays
when the user-programmable pushbutton becomes deactivated.
When set to "Normal", the duration the message displays is as specified by the
FLASH MESSAGE TIME setting.
When set to "High Priority", the duration of the off message is as specified by the
FLASH MESSAGE TIME setting, but the
on message is displayed as long as the user-programmable pushbutton is activated. While activated, target and other
messages are suppressed. To allow front panel keypad operation, when a keypad button is pressed the message is
supressed for 10 seconds.
• PUSHBUTTON 1 EVENTS: If this setting is enabled, each user-programmable pushbutton state change is logged as
an event into the event recorder.
The figures show the user-programmable pushbutton logic.

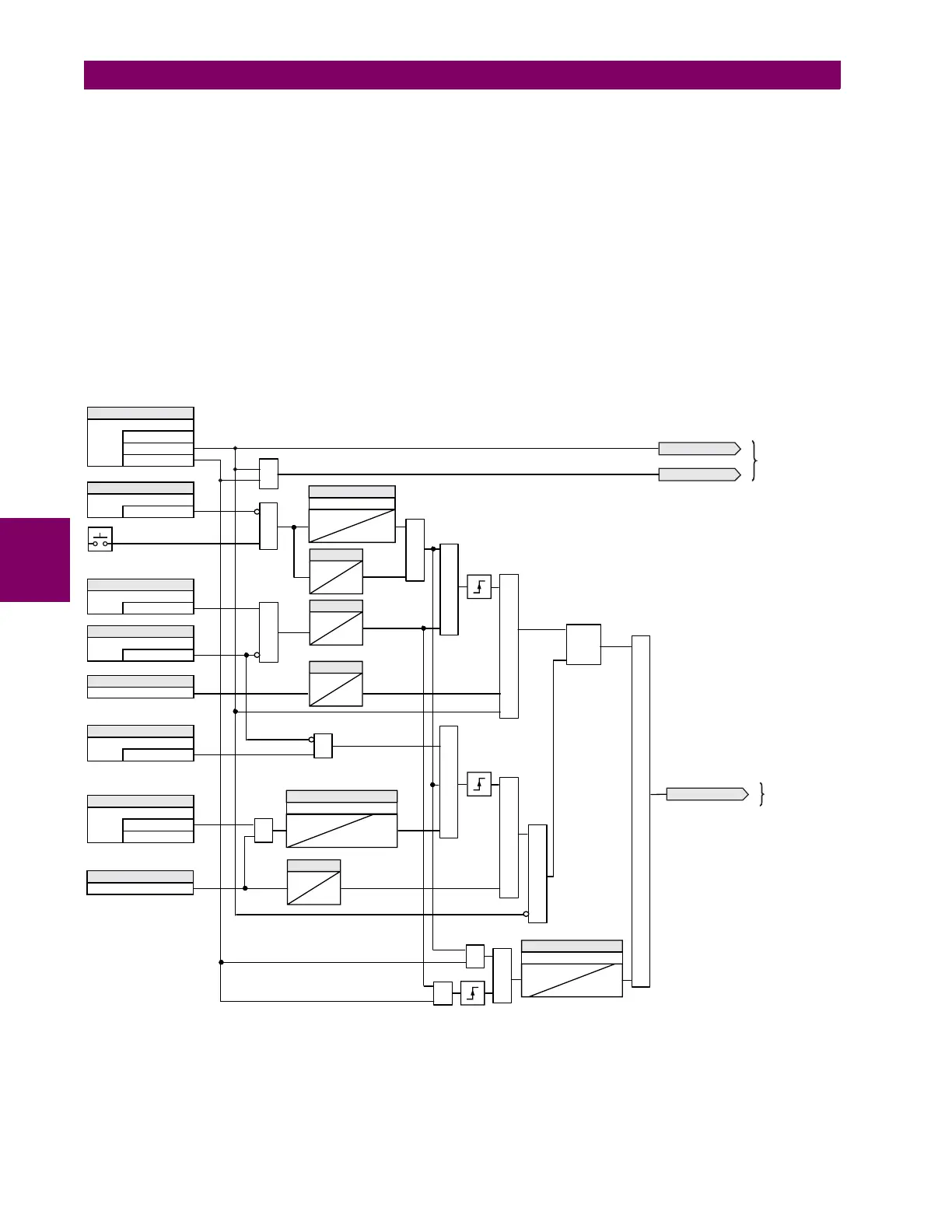

Figure 5–15: USER-PROGRAMMABLE PUSHBUTTON LOGIC (Sheet 1 of 2)
S
R
Non-volatile latch
Latch
OR
OR
OR
OR
AND
SETTING
= Enabled
= Latched
PUSHBUTTON 1 FUNCTION
= Self-Reset
SETTING
Off = 0
PUSHBTN 1 LOCAL
SETTING
Off = 0
PUSHBTN 1 SET
SETTING
Off = 0
PUSHBTN 1 RESET
SETTING
= Enabled
= Disabled
PUSHBTN 1 AUTORST
FLEXLOGIC OPERAND
PUSHBUTTON 1 ON
AND
AND
AND
AND
TIMER
50 ms
0
TIMER
50 ms
0
TIMER
200 ms
0
AND
SETTING
PUSHBTN 1 DROP-OUT TIME
T
RST
0
PUSHBUTTON ON
To user-programmable
pushbuttons logic
sheet 2
LATCHED
From front panel
To user-programmable
pushbuttons logic
sheet 2
842021A4.CDR
SETTING
PUSHBTN 1 AUTORST DELAY
T
PKP
0
From front panel
SETTING
PUSHBTN 1 HOLD
T
PKP
0
SETTING
Off = 0
PUSHBTN 1 REMOTE
AND
SETTING
PUSHBUTTON 1 OFF
TIMER
200 ms
0
OR
AND
OR
AND
