5.13.3 Controller Components

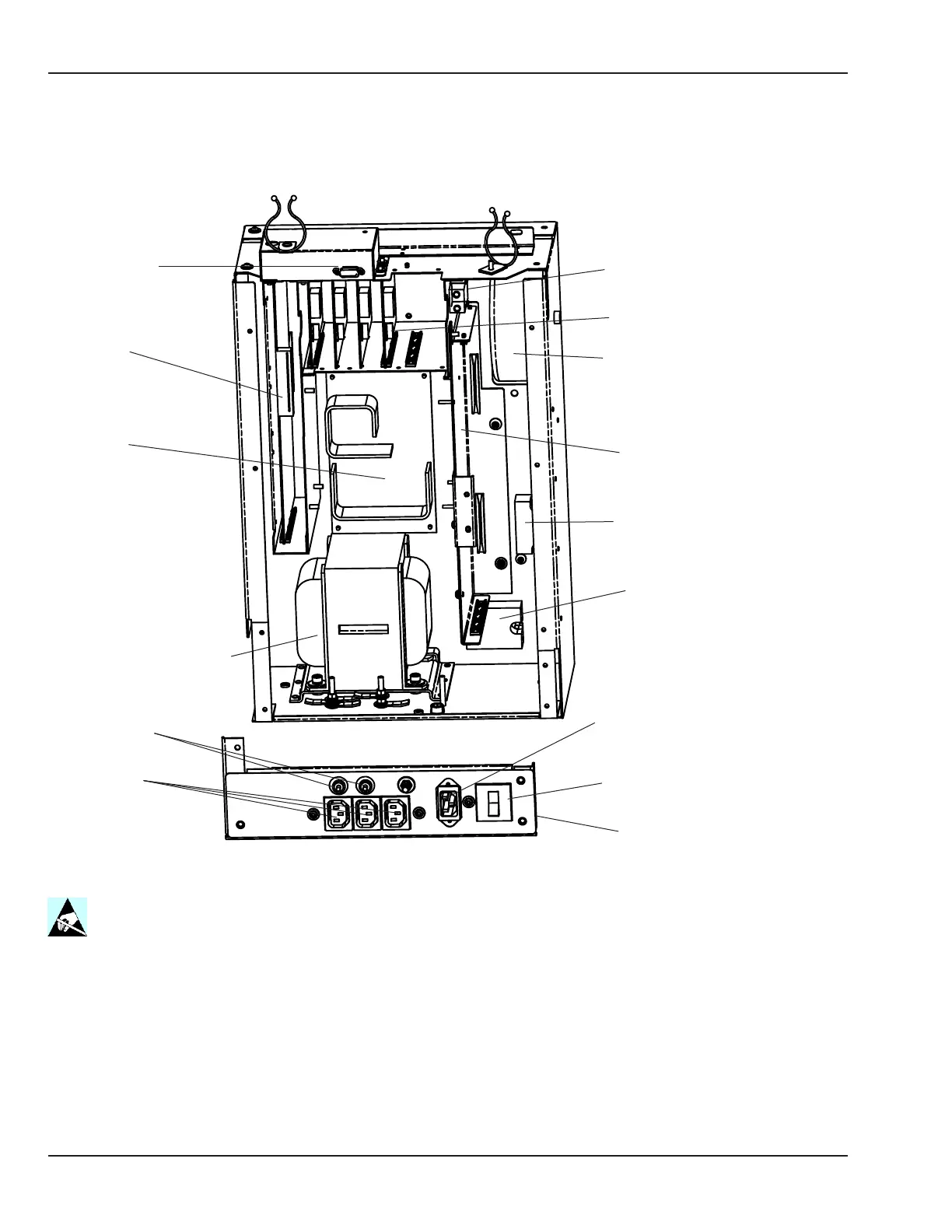

Refer to “Figure 5-59 Electronics Enclosure”.
Control board
Power supply
Circuit breakers
Power outlets
Line lter
Power switch
Warmer
solid state relay
Relay board
Toroidal transformer
Battery (In newer units, the
battery is in the probe panel
housing.)
Connection panel
Card cage
Incubator
solid state relay
RS232 connector
Heater Isolation transformer
Figure 5-59 Electronics Enclosure
Using a 2.5 mm hex key, loosen the 2 screws in the keyhole slots and remove the 6 remaining screws that
secure the controller cover, then remove the cover. Now you can access the electrical components listed below.
140 6600-0343-000 104 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
