– 26 –

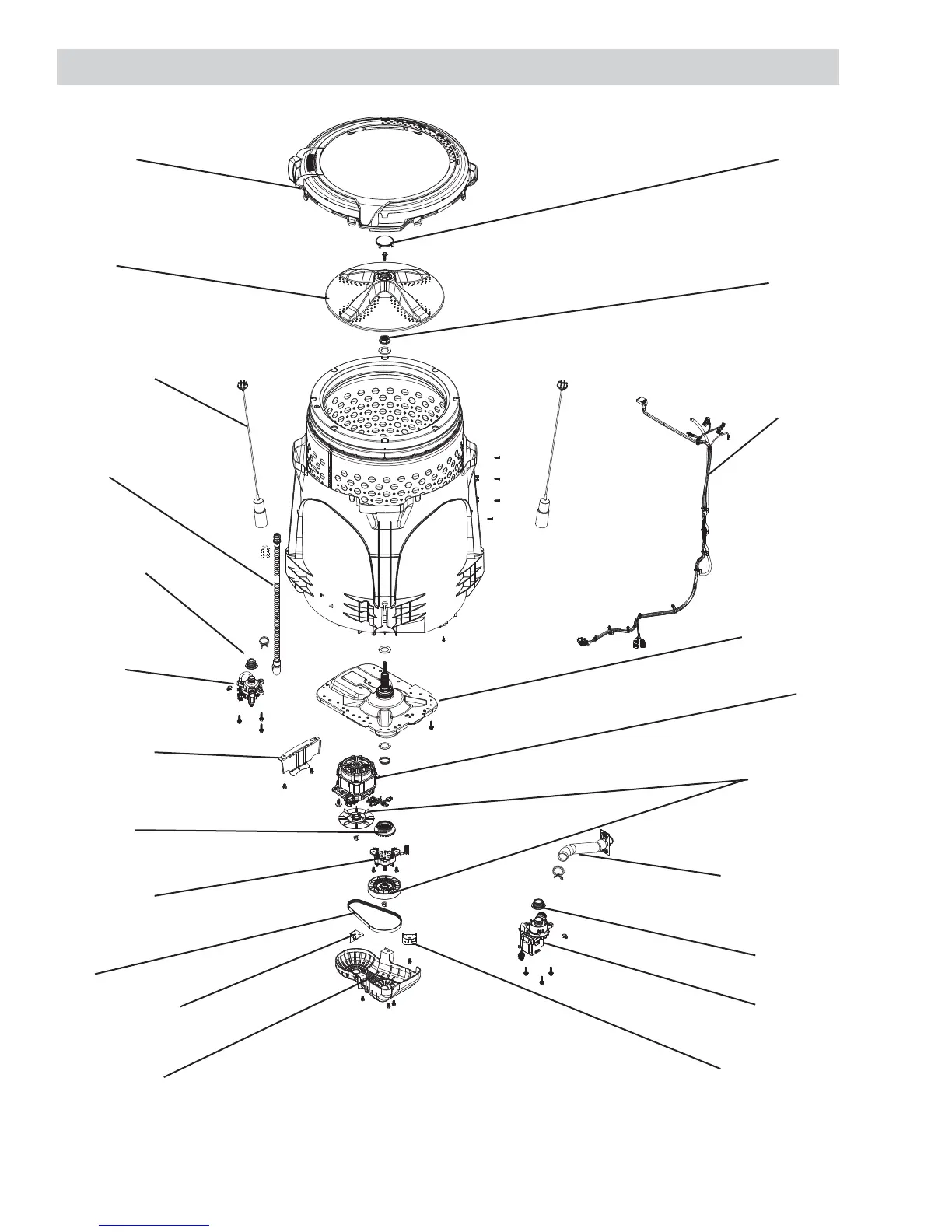

Tub Assembly 680 Model
Tub Assembly 680 Model
Tub Cover
Belt
Impeller
Mode Shifter
Clutch
Motor Shield
Internal Drain
Hose and Clamp
Mode Shifter
Recirculation
Tube
Rod and Spring
Assembly
Recirculation
Pump
Belt Protector
Motor
Motor and
Transmission
Belt Pulleys
Platform/
Transmission
with Tub Seal
Recirculation
Pump Seal
Main
Harness
Hub Nut and
Belleville
Washer
Impeller Cap
and Bolt
Drain
Pump Seal
Drain Pump
Harness Bracket
Harness Bracket
