The lid latch is located on the underside of the lid.
When the lid is closed, the latch closes the contacts
of the lid switch. During the spin portion of a cycle it
secures the lid from being opened.

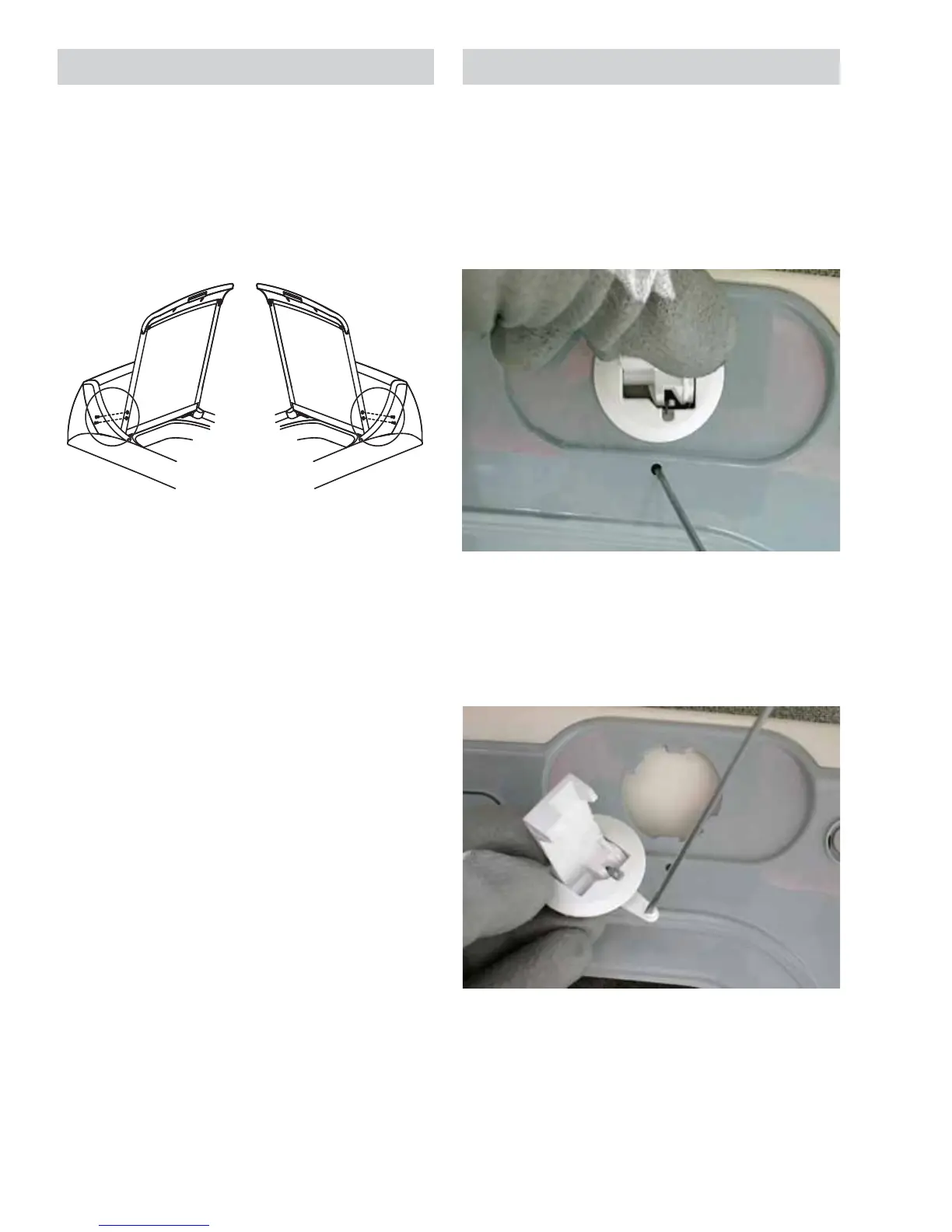

Lid latch Removal
1. Insert a small shank screwdriver into the hole
below the latch.
2. Push inward gently to release the locking tab.
3. Twist the latch to the left and pull out.
To reinstall, angle the latch to the left. Slide the
ORFNLQJWDELQ¿UVWWKHQVHDWWKHODWFKLQWKHOLGDQG
turn to the right. This will lock the latch in place.
Lid
Glass Lid Assembly Removal
1. Slide the backsplash assembly toward the rear
of the washer. This will allow the molded-in
hinge cover on the lid assembly to be cleared.
2. Remove four Phillips head screws (two on each
side of the lid assembly) that secure the lid to the
lid lever arm.
3. Grasp the lid on each side and slide upwards.
Metal Lid Assembly Removal
On models with metal lids, the backsplash assembly
does not need to be loosened.
1. Remove two Phillips head screws securing one
of the wire form lid hinges to the lid.
2. While holding the lid, slide the loose hinge to the
inside of the lid.
3. Lift up slightly on the lid and slide the other lid
hinge out of the bushing with the lid.
Lid Latch
To Next Page
