– 44 –
Personality ID

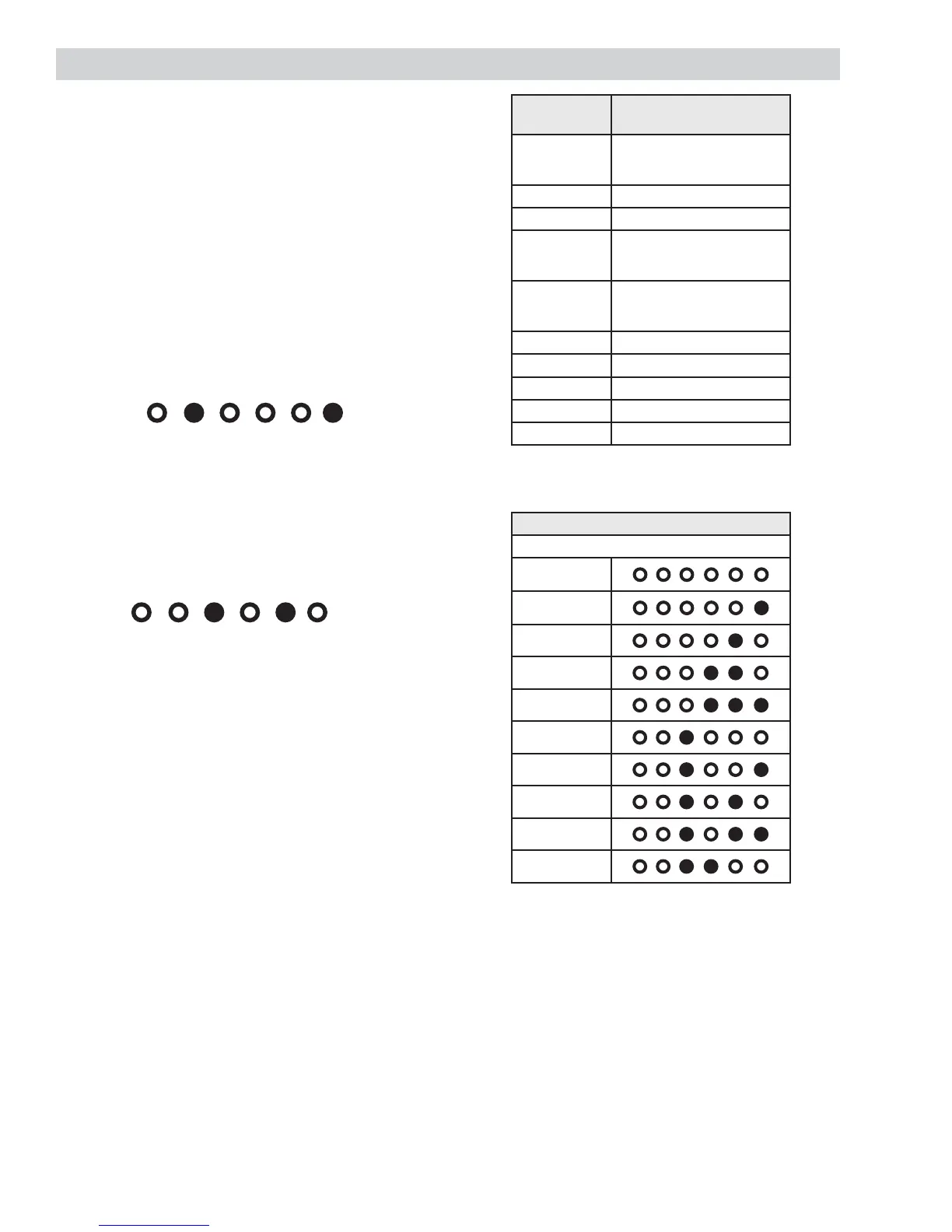

Personality ID Numbers in Binary Format
To change the personality, the Service Mode must
EHHQWHUHG¿UVWVHHWKH(QWU\LQWR)LHOG6HUYLFH
Mode section under Diagnostics in this service
guide).
7-segment display models will display the number
programmed into the control. Models without
7-segment displays utilize the cycle status LEDs to
display the numbers.
1. Once Service Mode has been entered, rotate the
cycle knob to Test 17.
2. Press Start to enter the test.
3. The correct personality ID that has been
programmed into the control will be displayed.
4. Example: ID number 10 displayed.
5. If the personality is incorrect, press the Start
button again and the next valid personality will
be displayed.
6. When the desired personality is reached,
press and hold the Start button to select that
personality.
Filled circles indicate light on.
32 16 8 4 2 1
32 16 8 4 2 1
Personality
Number
Model
0
*7:
+7:
1 *7:
2 *7:
6
*7:-
*7:-
7
07:
+7:
8 *7:
9 *7:
10 *7:
11 *7:-DQGKLJKHU
12 *7:
ID Number Displayed in Binary
32 16 8 4 2 1
0
1
2
6
7
8
9
10
11
12
To Next Page
