– 31 –

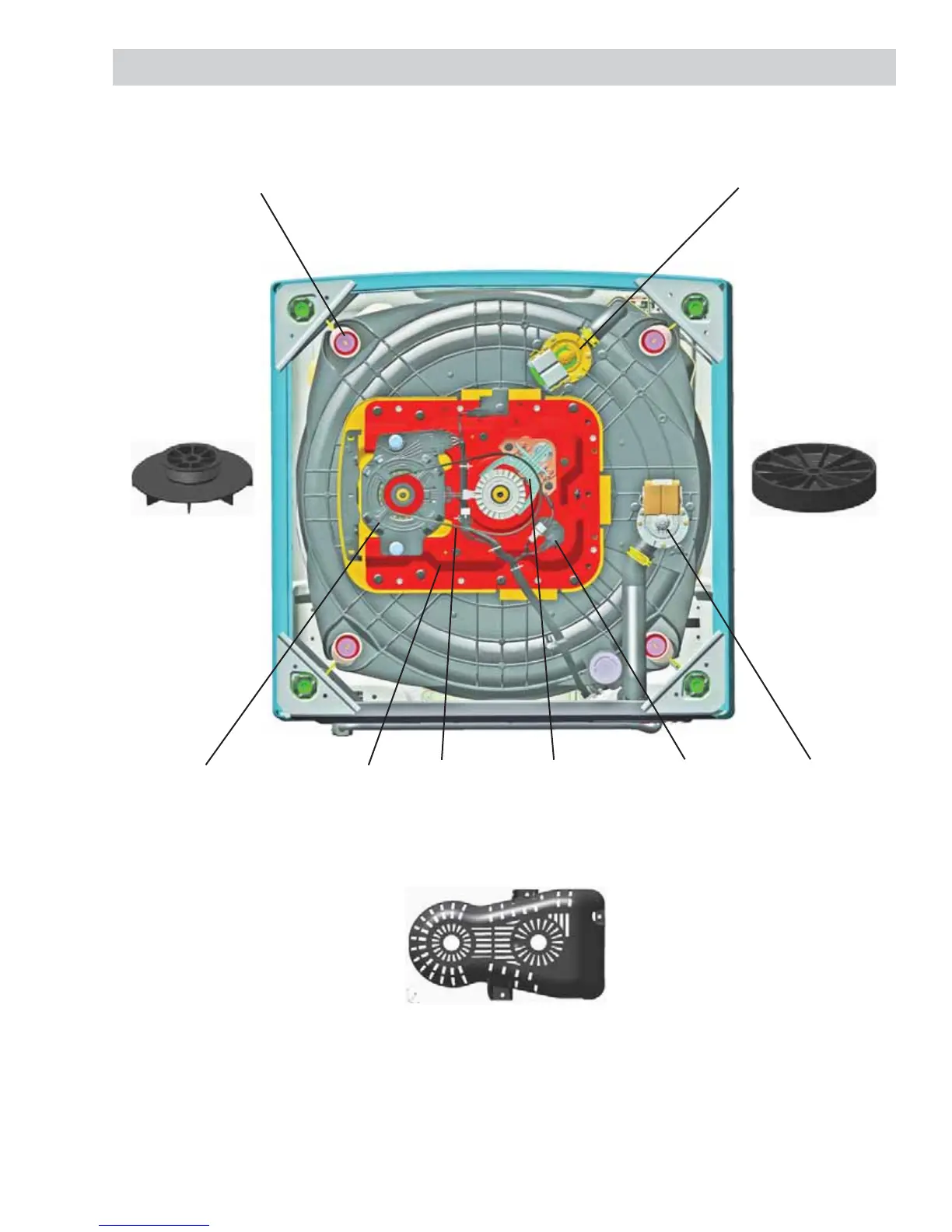

Drain Pump
and Internal
Outlet Hose
Harness
Connectors
Drive
Motor
Transmission
Supports
Assembly
Belt Mode
Shifter
Assembly
With Clutch
Belt Protector
Motor Pulley
Fan
Transmission
Pulley
Suspension
Rod and
Spring
Assembly
Recirculation
Pump - Not
on all models
View shown without belt
protector and pulleys in place.
Front
Bottom View
