Modifications reserved Page 64/66
OPM_LPS_3UO_80K_M10_1US_V010.doc User Manual LP33 Series 80 & 100 UL S1

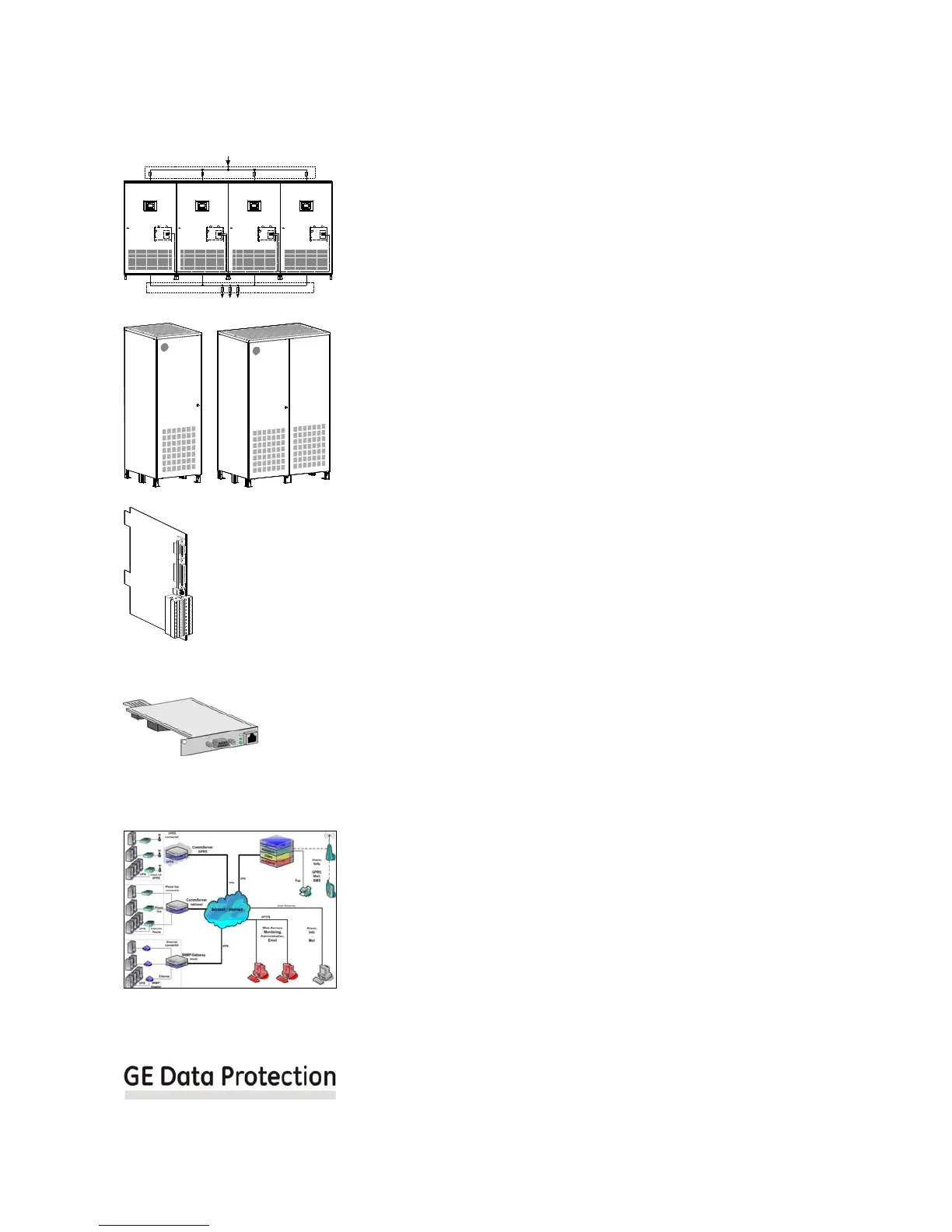

8 OPTIONS
8.1 OPTIONS GENERAL VIEW
LPS33U_080-100 _RPA system_GE_01US
Digital Energy
g
UPS System
F1 F2 F3 F4
UTILITY INPUT
LP33 Series 80 & 100
1234
LOAD
RPA
Board
RPA
Board
RPA
Board
RPA
Board
Digital Energy
g
UPS System
Digital Energy
g
UPS System
Digital Energy
g
UPS System
LP33 Series 80 & 100 LP33 Series 80 & 100 LP33 Series 80 & 100
RPA kit
Redundant Parallel Architecture
Allows extending the unit to a parallel system with 2, 3, or 4 units connected on the
same bus, which ensure the highest reliability rate and increase the power
availability without prior investments.
L
P
S
3
3
U
_
0
8
0
-
1
0
0
_
B
a
t
t
e
r
y
c
a
b
i
n
e
t
_
0
6
5
0
_
G
E
_
0
1
B
a
t
t
e
r
y
S
y
s
t
e
m
D
i
gi
t
al
Ener
gy
L
P
S
3
3
U
_
0
8
0
-
1
0
0
_
B
a
t
t
e
r
y
c
a
b
i
n
e
t
_
1
2
1
5
_
G
E
_
0
1
B
a
t
t
e
r
y
S
y
s
t
e
m
D
i
g
i
t
a
l
E
n
e
r
g
y
Additional battery cabinets
For battery with extended backup time.
Dimensions (WxDxH):
25.66” x 31.50” x 75.00” / 650 x 800 x 1905 mm
47.84” x 31.50” x 75.00” / 1215 x 800 x 1905 mm
SGT4000_customer interface_02
1234567891011
1615141312 2221
20
191817
21
Customer Interface
The Customer Interface Card allows the client the exchange of information
(monitoring and control) with the following interfaces:
- Serial port RS232.
- 6 programmable output channels.
- 2 programmable input channels, of witch one for GEN-ON.
- EPO (Emergency Power Off).
3-ph SNMP/WEB plug-in adapter
The “3-ph SNMP/WEB plug-in adapter” is an Interface to the Ethernet Network, and
provides UPS information via the standard SNMP protocol (Simple Network
Management Protocol).
The UPS can therefore be managed by a Network Management System (NMS) or by
our applications (for instance JUMP), which uses this information to determine the
state of the UPS in order to guarantee safe and orderly shutdown of the server,
when needed.
GE Power Diagnostics
GE Power Diagnostics is an anytime, anywhere concept in UPS status monitoring
and alarm notification that has been successfully implemented in numerous of
installations supporting up to multi-hundred UPS.
Based on the leading Intelligent Remote Information System IRIS all GE UPS types as
well as 3rd party UPS are supported.
Accessing the latest site information via Web and being alerted by Email, SMS or
Fax, it enables the user to make timely decisions in case of changing critical
conditions.
With comprehensive data collection and analysis IRIS is not only a remote
monitoring & diagnostics (RM&D) system but, the core of the integrated service
offering GE Power Diagnostics.
GE Data Protection
GE Data Protection software can communicate with the UPS over RS-232, USB or
SNMP to receive status information and measurement values of the UPS.
In case of a critical condition (time on battery, remaining battery autonomy time or
low battery) for the load, the software starts a controlled shutdown.
An enhanced alarm management system provides the possibility to start applications,
send messages, and send e-mails for every upcoming or disappearing alarm.
