GE M-PACT User Manual

31
Frame 1 neutral Rogowki coil
will clamp on to copper sizes:
40mm x 4 – 25mm
50mm x 4 – 25mm
60mm x 4 – 25mm
70mm x 4 – 25mm
Frame 2 neutral Rogowki coil
will clamp on to copper sizes:
40mm x 4 – 25mm
50mm x 4 – 25mm
60mm x 4 – 25mm
70mm x 4 – 25mm
80mm x 4 – 25mm
90mm x 4 – 22mm

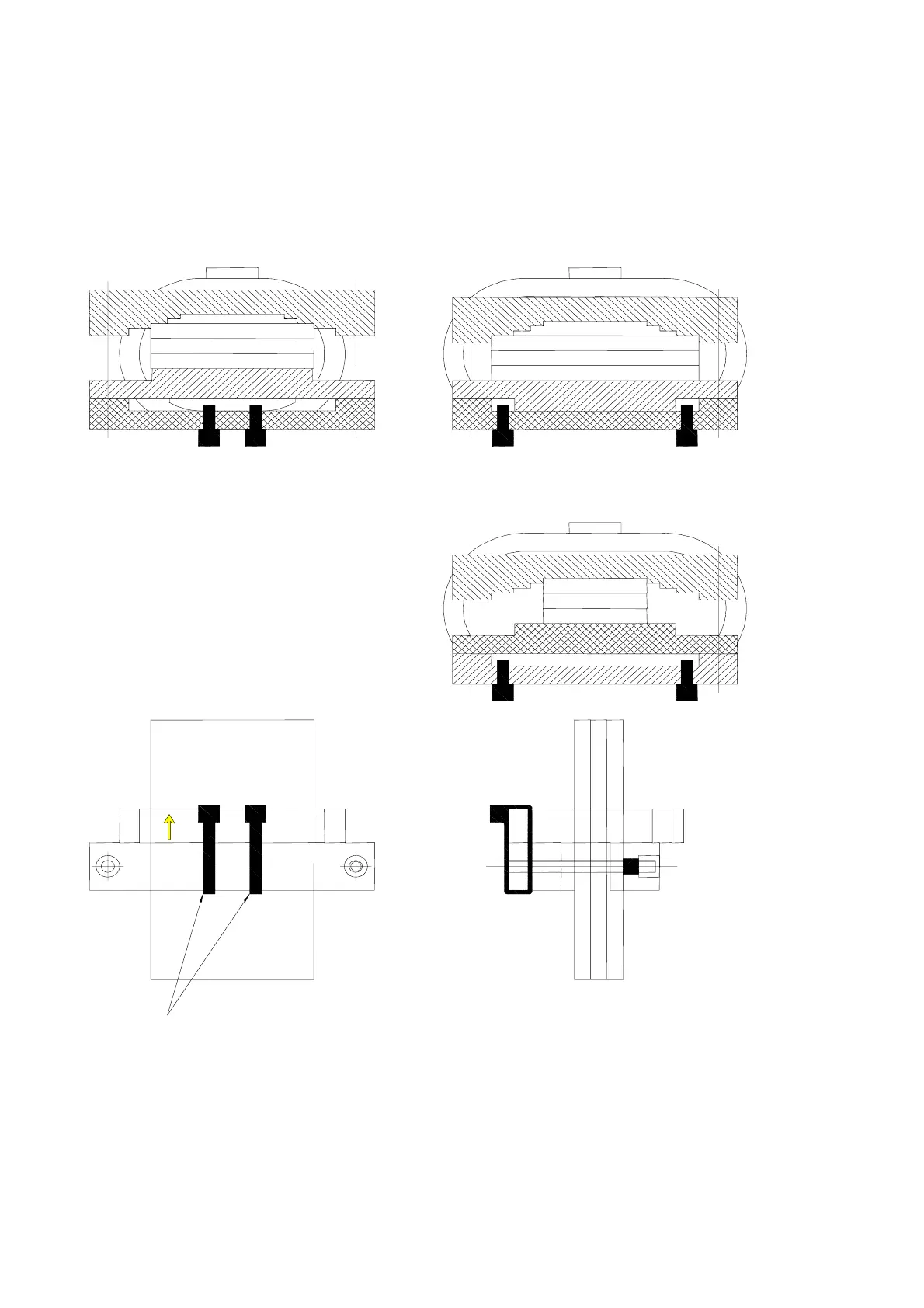

Illustration of frame 2 neutral
Rogowski coil secured onto mounting
bracket 3 off bars at 6.3mm x 40mm.
Rogowski coil secured onto mounting
bracket with cable ties, coil positioned
centrally on clamp. (Note the coil
orientation arrow location)
Frame 1 Rogowki coil -
side view showing cable ties.
