Washer Components

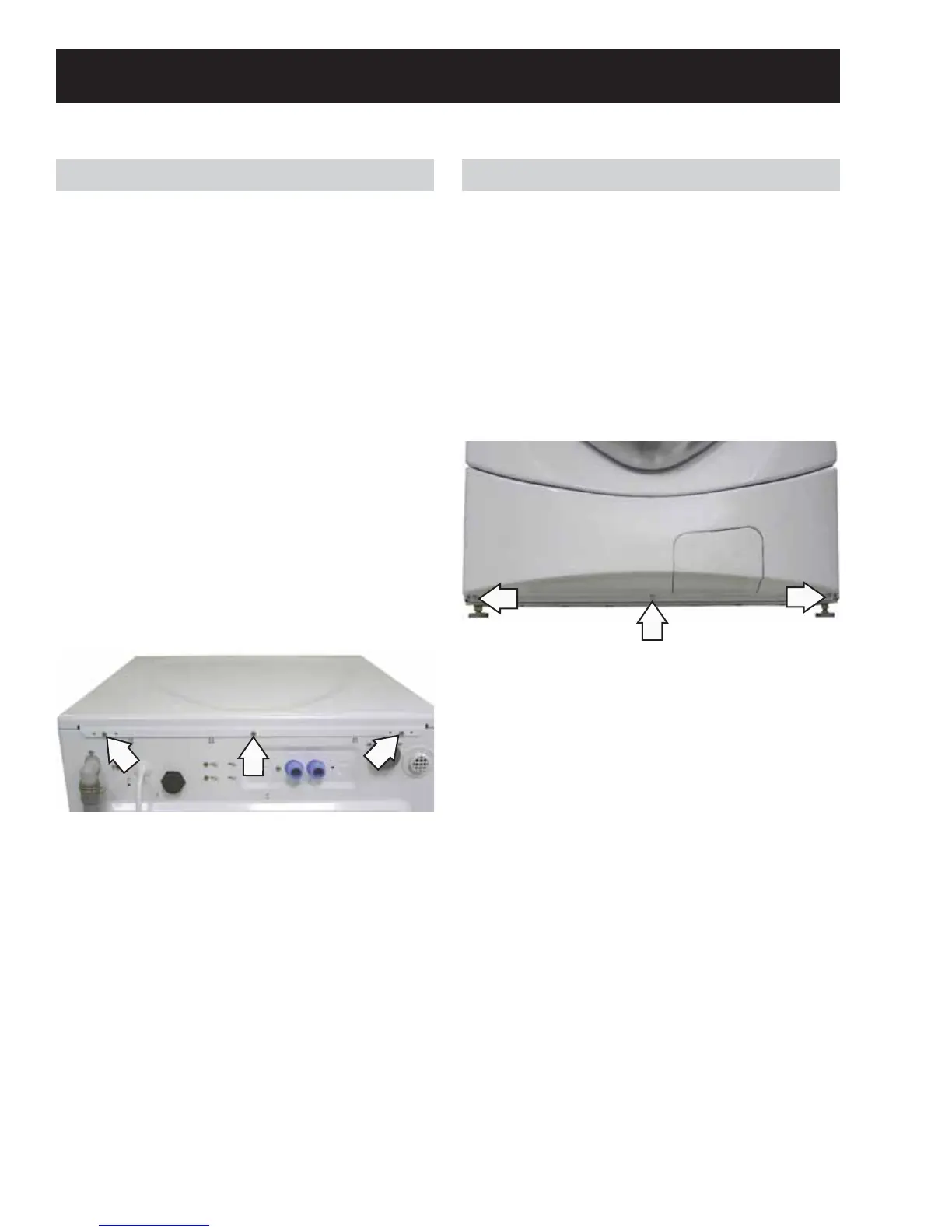

Service Panel
Removal of the service panel provides access to
the pump cleanout, pump, tub drain hose, heater
assembly, inverter, wire junction box, front dampers,
and the door lock release ring.
To remove the service panel:
Remove the 3 (7-mm) hex-head screws that hold 1.
the service panel to the cabinet.
Pull the service panel down.2.
Top Panel
WARNING: Sharp edges may be exposed when
servicing washer. Use caution to avoid injury and
wear Kevlar gloves or equivalent protection.
Note: Combined Phillips-head/hex-head screws can
be utilized throughout this appliance. Either Phillips
screwdrivers or nut drivers can be used to extract or
install these screws.
Removal of the top panel provides access to the
control panel, power board, dispenser, water valve,
water level control, and line fi lter. The top panel is
held in place by 3 screws on the back.
The top panel has 2 keyslots that engage grommets
attached to the top of the cabinet. The top panel is
attached to the rear of the cabinet with 3 (7-mm)
hex-head screws. After removing these screws, it is
necessary to slide the top panel rearward 1 inch for
removal.
