– 27 –

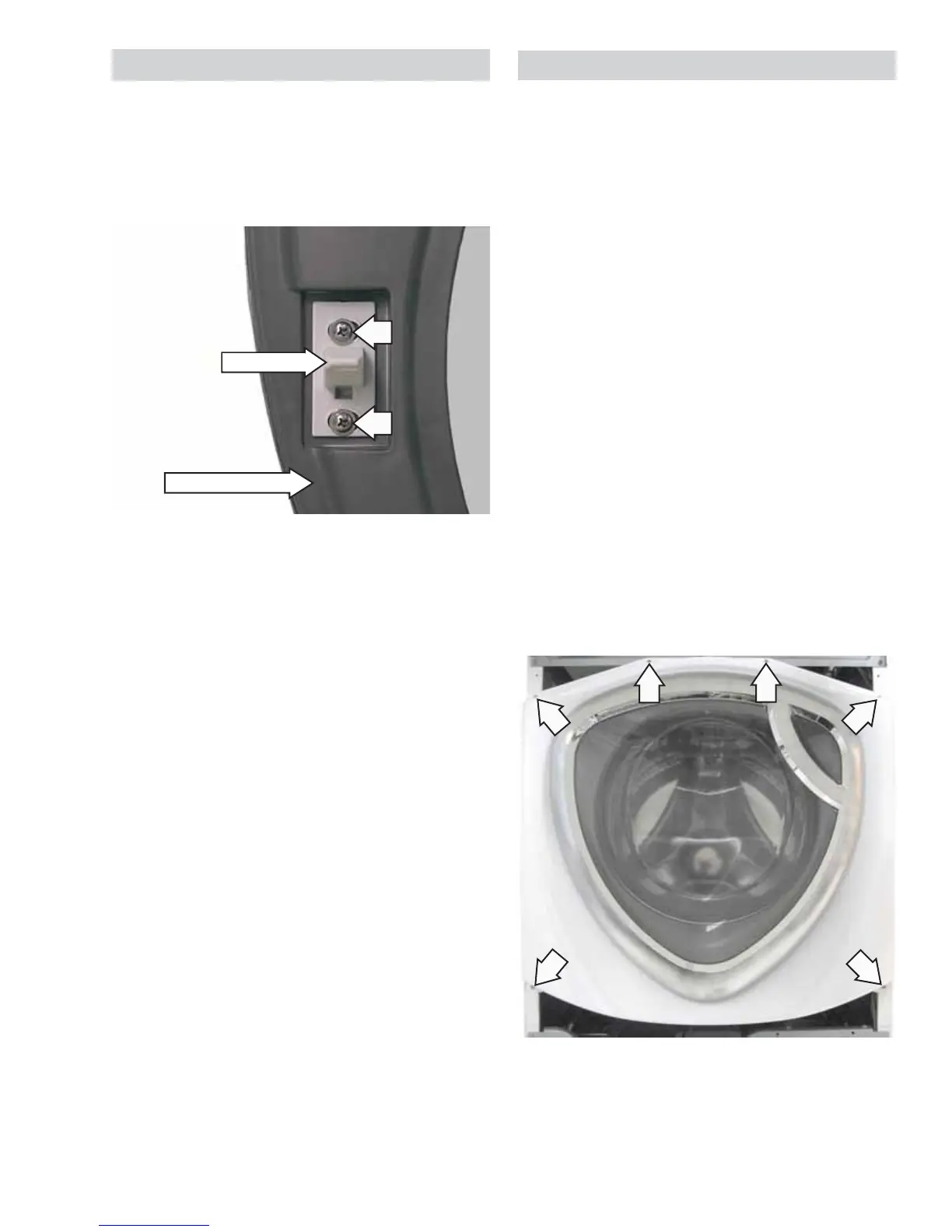

Door Strike
To remove the door strike:
Open the door.1.
Remove the 2 Phillips-head screws that hold the 2.
door strike to the door frame cover.
Remove the door strike.3.
Note: The door strike position on the door can be
horizontally adjusted
1
/
8
-inch. Adjust the position of
the door strike for best door closure.
Door Frame Cover
Door Strike
Front Panel
The front panel is hung on 2 hooks attached to the
cabinet and held in place with four 1/4-in. hex-head
and 2 Phillips-head screws. A gasket provides a
watertight seal between the front panel and outer
tub. The front of the gasket is secured to the front
panel fl ange by a spring and wire located in the fold
of the gasket. The door lock and wiring is attached
to the front panel.
To remove the front panel:
Remove the control panel. (See 1. Control Panel.)
Remove the service panel. (See 2. Service Panel.)
Open the door. Remove the 3 Phillips-head 3.
screws that hold the door lock to the front panel.
(See Door Lock.)
Remove the spring and wire from the gasket. 4.
(See Door Lock.)
Position the gasket behind the front panel door 5.
opening. Close the door.
Remove the four 7-mm hex-head and 2 Phillips-6.
head screws that attach the front panel to the
cabinet.
Lift up then remove the front panel from the 2 7.
hooks.
