– 42 –
Rock motor rearward to clear the motor mounts 5.
from the outer tub. Place the motor on the
washer chassis.
Disconnect the motor wire harness.6.
Note: The motor ground wire connector utilizes a
releasing locking tab.
Door

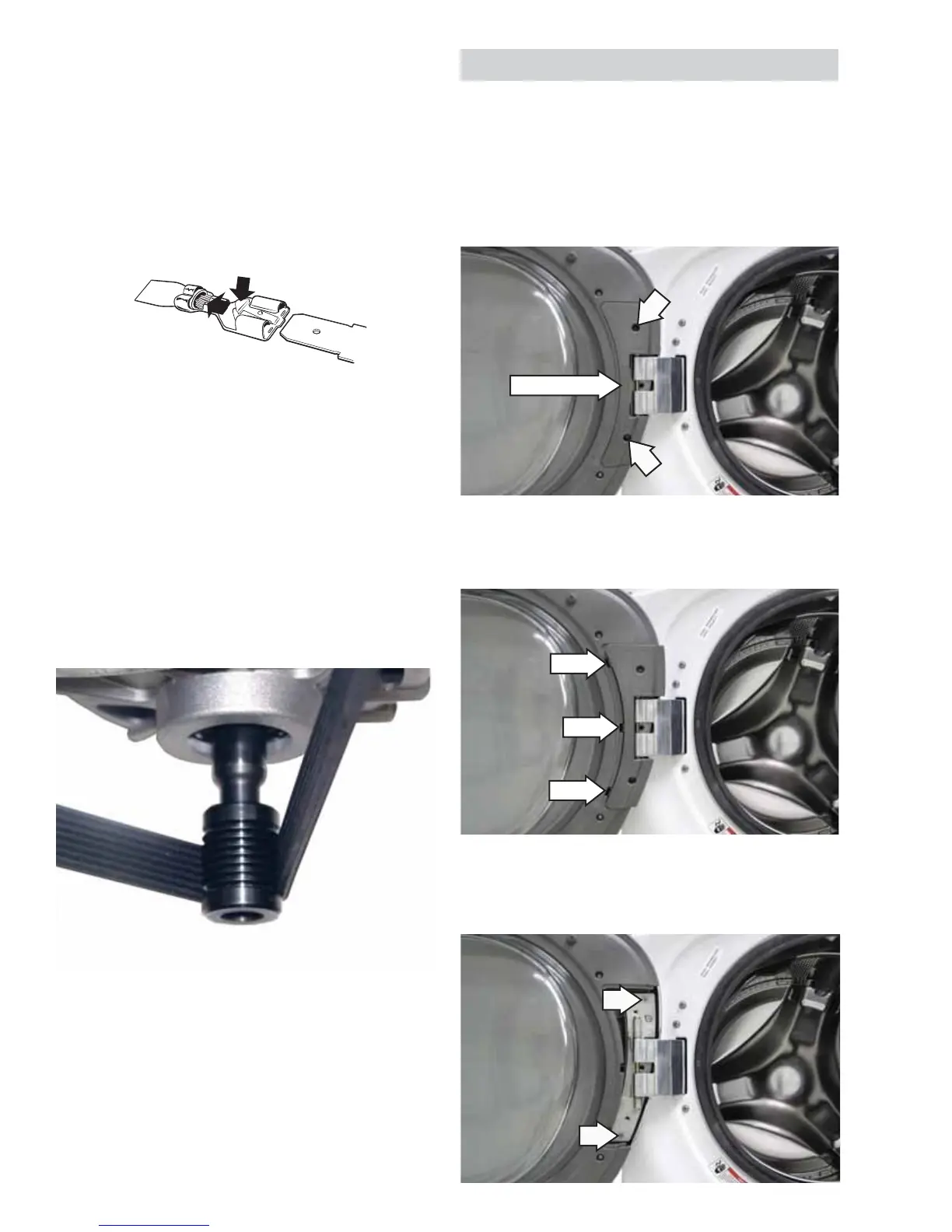

To remove the door components:
Note: The hinge cover is attached to the door with
2 Phillips-head screws and 3 tabs located on the
inside.
Remove the 2 Phillips-head screws.1.
3. Remove the 2 Phillips-head screws that hold the
door to the hinge door plate.
(Continued Next Page)
Hinge Cover
2. Lift the right-side of the hinge cover and slide it
to the right.
Tab
Tab
Tab
ELECTRICAL TERMINAL
RELEASE/LOCKING TAB
6. Press the lock tab and remove the motor ground
wire.
7. Remove the plastic wire tie that holds the motor
wire harness and ground wire to the motor.
8. Lift the motor out of the washer.
Note: When reinstalling the belt, ensure the belt
is positioned to track in the 7 outer grooves of the
motor pulley.
To Next Page
