Thermistor
10-mm Hex-Head Nut

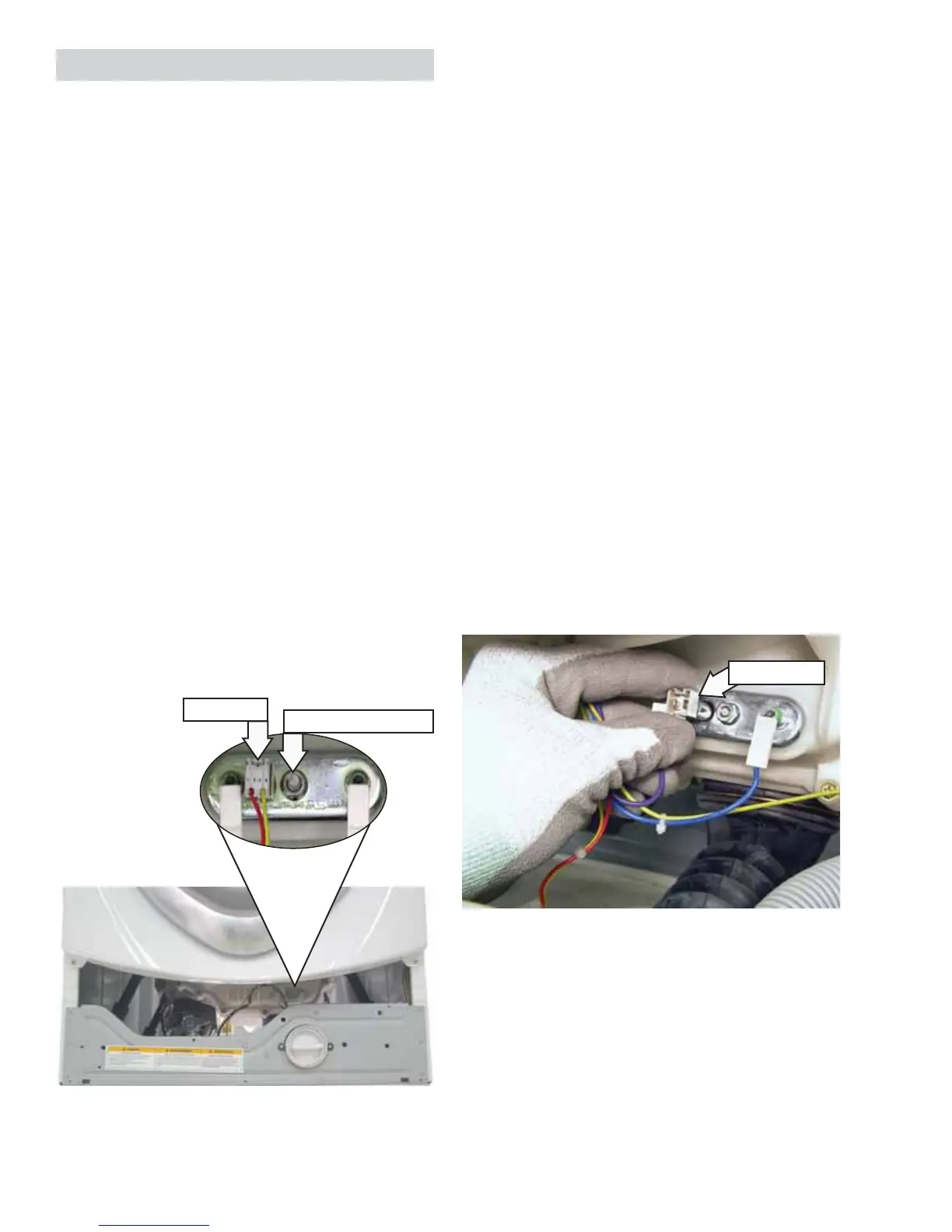

Heater Assembly
The heater assembly is located above the pump, •
and is accessed from the front of the washer.
The heater assembly consists of a heating •
element and a water temperature thermistor.
The heater can operate in • WHITES/HEAVY
DUTY, or STAIN INSPECTOR wash cycles, and
when the sanitize wash temperature is selected.
The heater assembly is held in place by a •
bracket attached to the inside of the outer tub
and a 10-mm nut which compresses a rubber
gasket to the tub opening.
When the 10-mm hex nut is tightened, it •
squeezes the rubber gasket between 2
mounting plates to seal the heater assembly to
the opening of the tub.
The hex nut is set from the factory at 31 in. lbs •
of torque.
Operation of the heater assembly can be checked
by using service test mode t10. (See Service Test
Mode.)
Specifi c failures associated with the heater
assembly can initiate error codes E4 and E5. (See
Service Test Mode.)
Heating Element Specifi cations:
120 VAC•
970 Watts•
Approximately 8 Amps
•
Approximately 15 • Ω
Thermistor Specifi cations:
12 K• Ω at 75°F (24°C).
Resistance goes down as temperature goes up.•
To remove the thermistor:
Remove the service panel. (See 1.
Service Panel.)
Drain the washer using the pump cleanout. (See 2.
Pump.)
Disconnect the wire harness from the thermistor.3.
Loosen the 10-mm hex nut until it is fl ush with 4.
the end of the stud.
Push inward on the 10-mm hex nut to relax the 5.
rubber gasket.
Grasp the thermistor and pull outward.6.
Thermistor Removal
