22

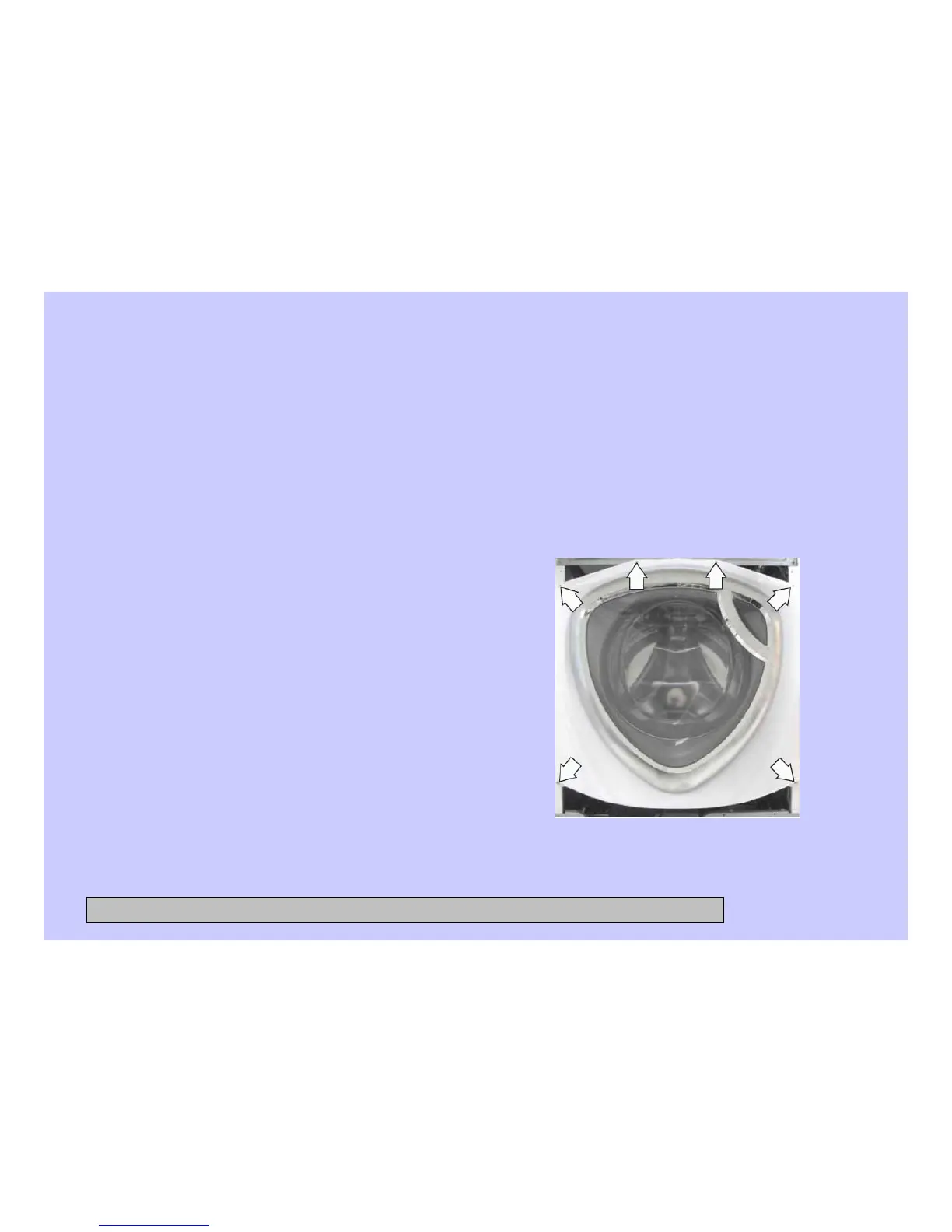

Front Panel
The front panel is hung on 2 hooks attached to the cabinet and held in place with four
1/4-in. hex-head and 2 Phillips-head screws. A gasket provides a watertight seal between
the front panel and outer tub. The front of the gasket is secured to the front panel flange
by a spring and wire located in the fold of the gasket. The door lock and wiring is
attached to the front panel.
To remove the front panel:
1. Remove the control panel. (See
Control Panel.)
2. Remove the service panel. (See
Service Panel.)
3. Open the door. Remove the 3 Phillips-
head screws that hold the door lock to
the front panel. (See Door Lock.)
4. Remove the spring and wire from the
gasket. (See Door Lock.)
5. Position the gasket behind the front
panel door opening. Close the door.
6. Remove the four 7-mm hex-head and 2
Phillips-head screws that attach the
front panel to the cabinet.
7. Lift up then remove the front panel
from the 2 hooks.
CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE. September 2008
