Water Valve
The water valve assembly consists of a valve body and two solenoid coils. The water
valve has a flow rate of 2.1 gallons (8 liters) per minute. It is inserted and retained in a
cutout in the rear of the cabinet and held in place by a single 6-mm hex-head screw. It
is only available as a complete assembly.
Each solenoid coil has an approximate resistance value of 1.1K Ω.
Operation of the water valve can be checked by using service test modes t11 and t12.
(See Service Test Mode.)
Specific failures associated with the water valve can initiate error code E7. (See Service
Test Mode.)

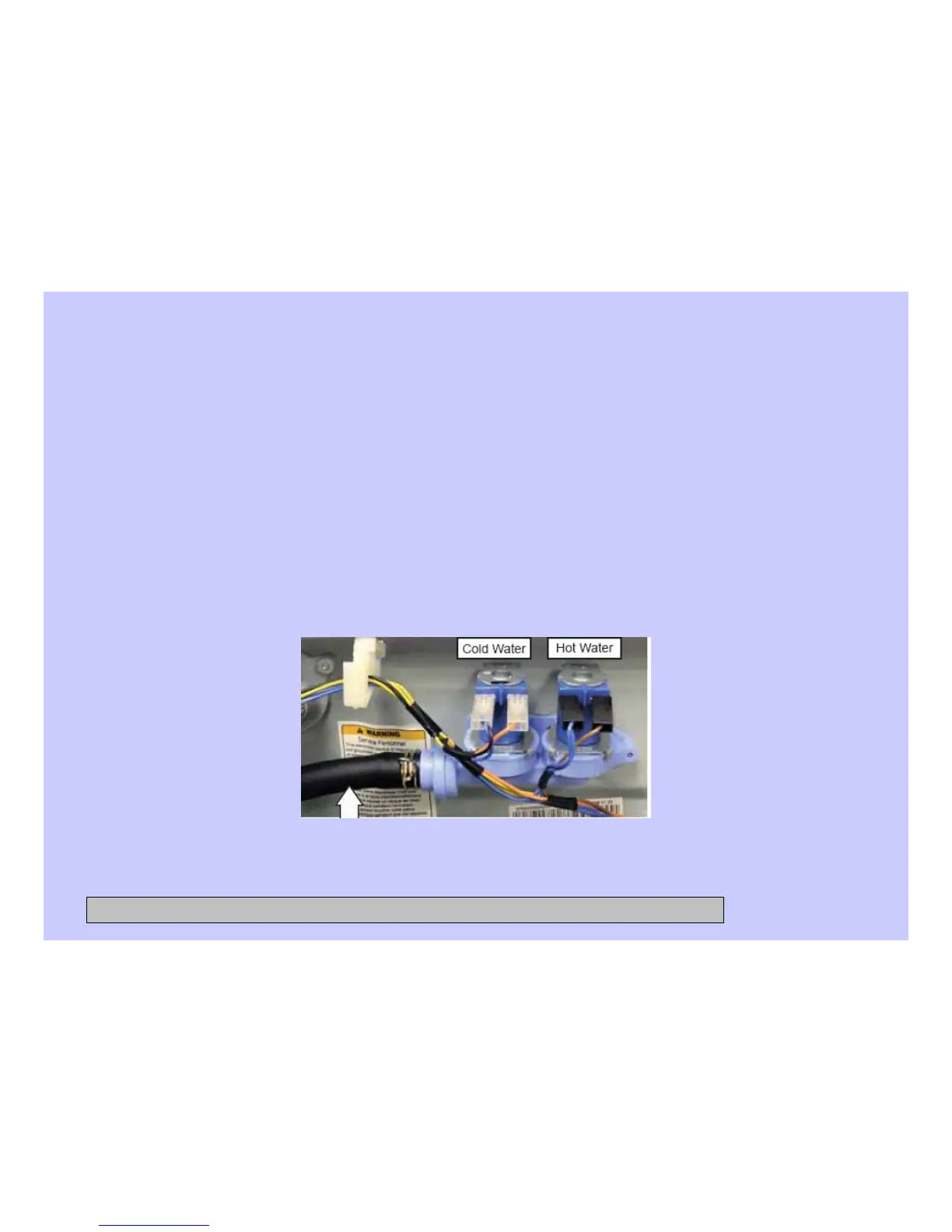

Outlet Hose
