25 ±1
Ø 7 ±0,5
5,50m
PTC 7 x 25 5m
• ORDER CODE
TECHNICAL DATA
Mod. probe: Ambient probe
Cap material: Plastic (Ø 7 x 25mm)
Temperature range: -20...80°C
PTC: R 25°C = 1KΩ ±1% (KTY 81-110)
Response time: 20sec (in still air)
Isolation: 100MΩ, 500Vd.c. between cap and terminals
Wire material: Unipolar in PVC (12/0,18)
Wire length: 5,50m
• Interface for GEFRAN instrument configuration

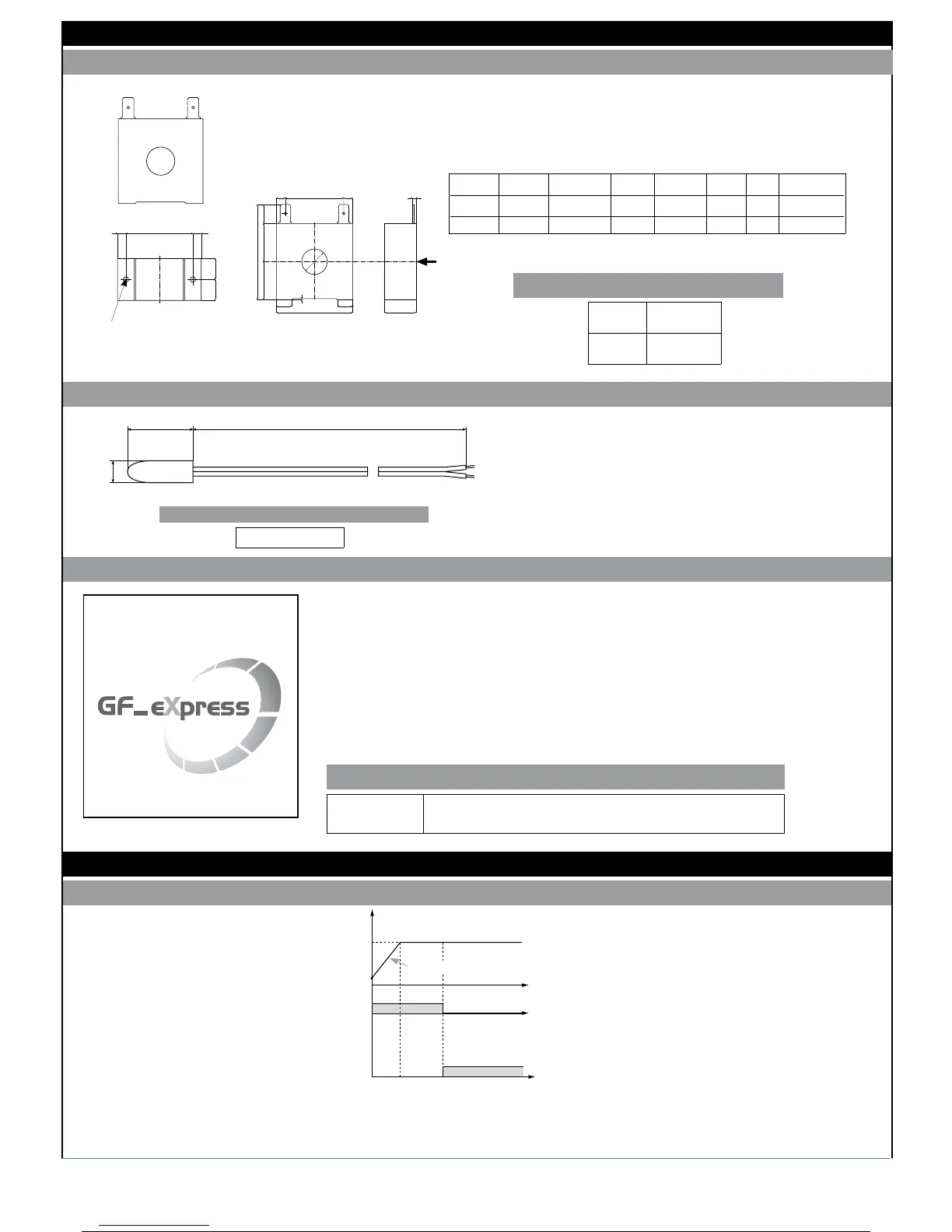

• CURRENT TRANSFORMER
15 • ACCESSORIES
• Twin setpoint application (ramp + hold + time expiration alarm)
16 • APPLICATIONS
50 / 0.05 A
152050 9640
Hole for 2.9 x 9
self-threading screws
These transformers are used to measure currents of 50 ÷ 60Hz from 25A to 600A
(nominal primary current). The peculiar characteristic of these transformers is the high
number of secondary turns. This provides a very low secondary current, suitable for an
electronic measurement circuit. The secondary current may be detected as voltage on
a resistor.
CODE Ip / Is Ø Secondary n OUTPUTS Ru Vu ACCURACY
Wire
TA/152 025 25 / 0.05A 0.16 mm n
1-2
= 500 1 - 2 40 Ω 2 Vac 2.0 %
TA/152 050 50 / 0.05A 0.18 mm n
1-2
= 1000 1 - 2 80 Ω 4 Vac 1.0 %
IN = 25Aac
OUT = 50mAac
COD. 330200
IN = 50Aac
OUT = 50mAac
COD. 330201
• ORDER CODE
• PTC
AL
Referred to current
setpoint
Setpoint profile
Setpoint < AL
Delay for
tripping
(*)
Absolute alarm
Reverse alarm
(*) Time set in
parameter Hy.n
Direct alarm
Time (min. or sec.)
KIT PC USB / RS485 o TTL
• ORDERING CODE
Kit for PC via the USB port (Windows environment) for GEFRAN instruments conguration:
Lets you read or write all of the parameters
• A single software for all models
• Easy and rapid conguration
• Saving and management of parameter recipes
• On-line trend and saving of historical data
Component Kit:
- Connection cable PC USB ... port TTL
- Connection cable PC USB ... RS485 port
- Serial line converter
- CD SW GF Express installation
GF_eXK-2-0-0 cod F049095
1580336L_MHW_600_07-2011_ENG
15 / 31
