geminox FCX 22 C User Manual

- 40 -
VI - MAINTENANCE
Boiler and combustion product drain outlet mainte-
nance must be carried out annually by qualified
staff.
Spare parts must be ordered using the references
given in
chapter IX - NOMENCLATURE, specifying
the type and serial number of the device.
Before any operation, cut off the power
supply. Close the system oil inlet and
the water stopcocks if necessary.
1 - CLEANING THE BOILER SHELL
For FCX 30 C models only:
- remove the burner before removing
the baffling (item no. E).
- Unclip the top of the boiler casing by pulling it
upwards,
- unscrew the 4 fixing screws (item no. B) from the
cast-iron plate (item no. E)
- remove the flue outlet (item no. D),
- remove the baffles (rep. E),
- clean the walls of the boiler shell (item no. 13),
- reassemble all the parts and be sure
• not to reverse them,
• to position the combustion chamber pipe
(item no. D) with its centering screw (item no.
P) towards the front of the boiler,
• to position the cast-iron plate arrow marker
(item no. C) opposite the centering screw (item
no. P).
!
!
B
B
C
B
C
B
E
13
13
D
P
FCX-50-3
B
B
C
B
C
B
E
13
13
D
P
FCX-71-3

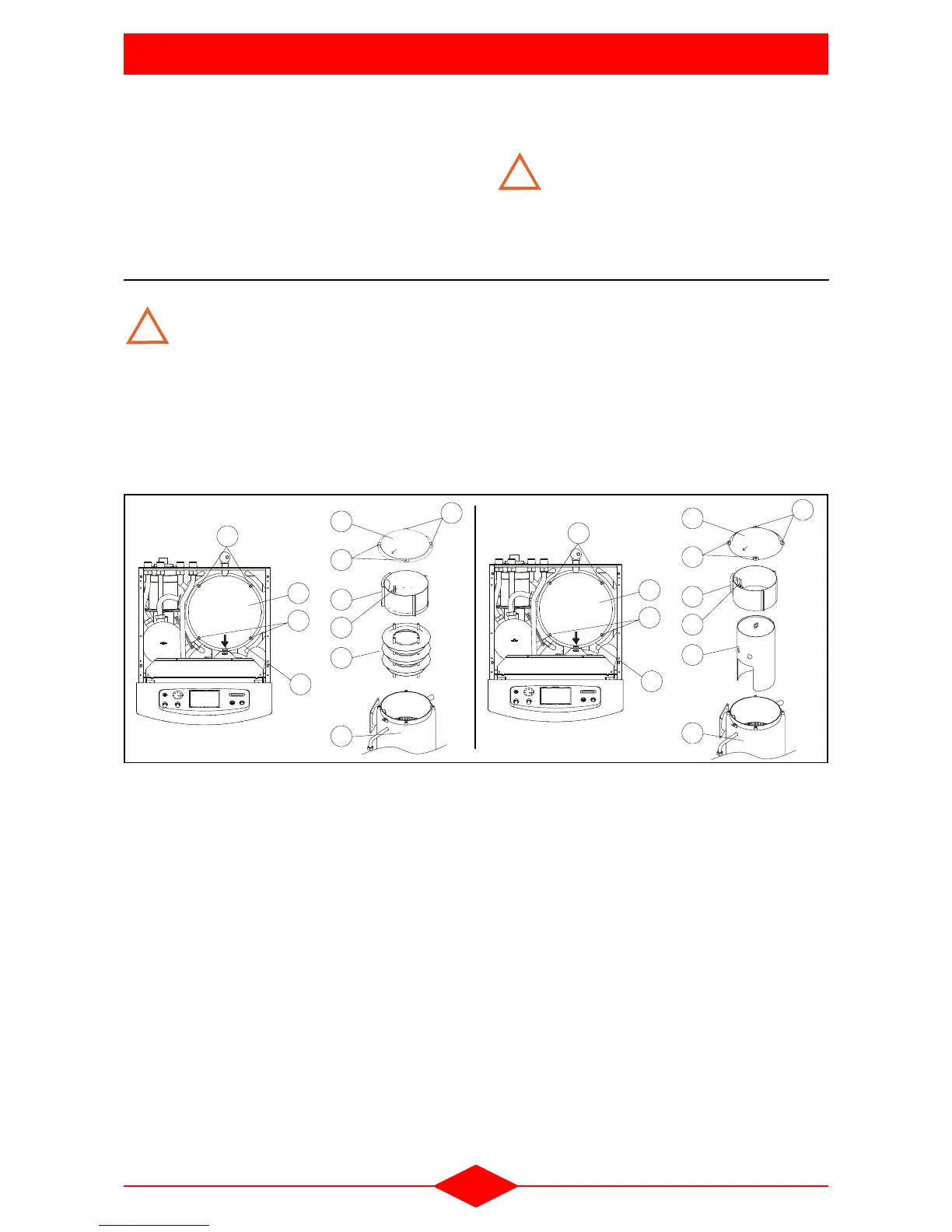

Fig. 62
FCX 22 C
FCX 30 C
