- 6 -
TECHNICAL SPECIFICATIONS
2 - DIAMETERS OF PIPE CONNECTIONS
* Note: - The F3/4"-F3/8" reduced bend supplied with the
boiler makes it possible to assemble the 3/8"
bleed supplied (refer to
section 5 - page 25).

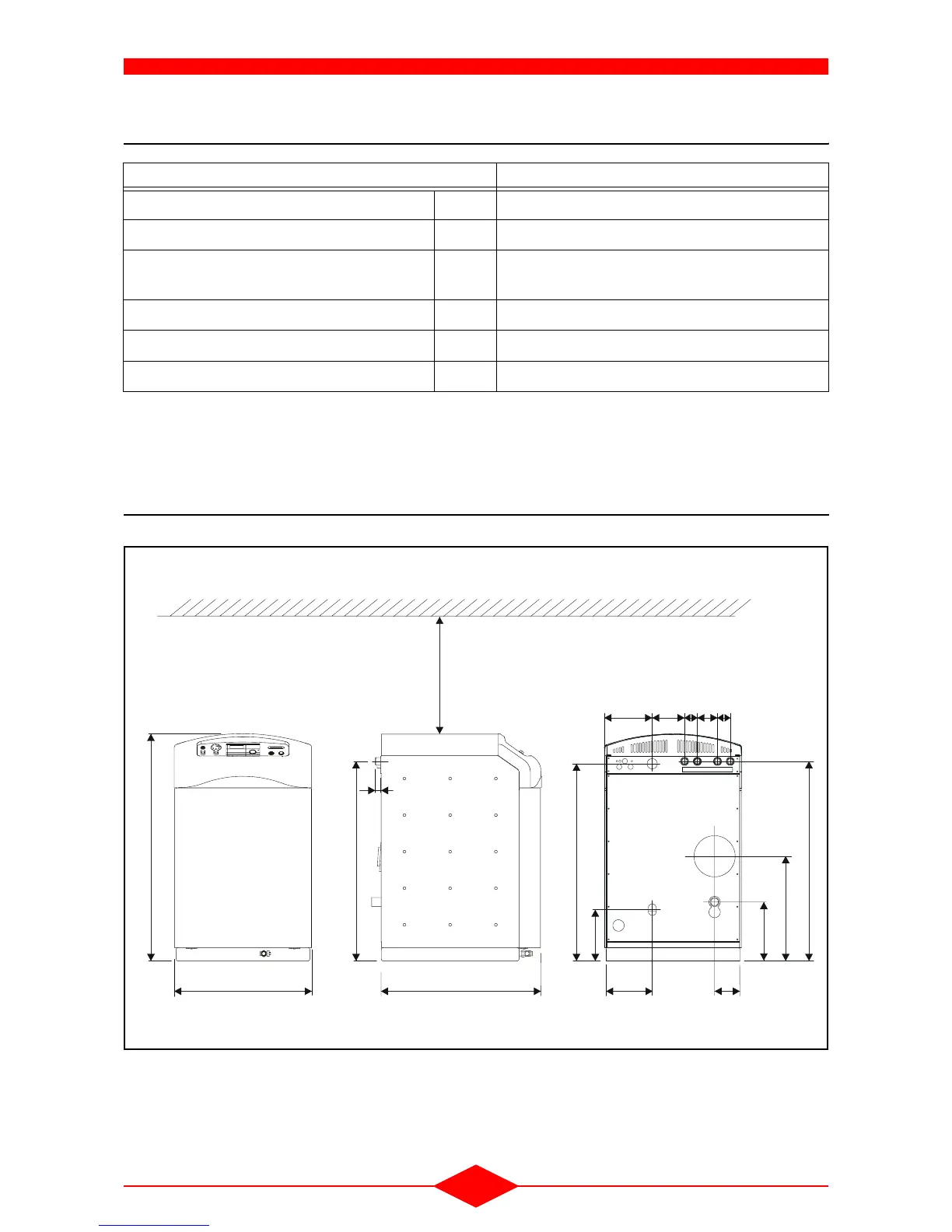

3 - DIMENSIONS
Note:
- Be sure to leave a sufficient gap behind the boiler
for access to the combustion product evacuation
trap.
Model
FCX
Ø Combustion products
mm 80/125
Ø Heating flow/return
inch 1
Ø Domestic hot water production system or 2
nd
heating circuit connection
inch 1
Ø Condensate drain
inch 40
Ø Heating water drain
inch 1/2
Ø Air bleed
inch 3/4
257
458
863
800 mini
873
141 56 88 56
873
699
24
601
993
FCX-01-3
224
202 111
210
Fig. 1
Front view Side view Rear view
