4 Owner’s Manual for Portable Generator
Section 2 General Information and Setup

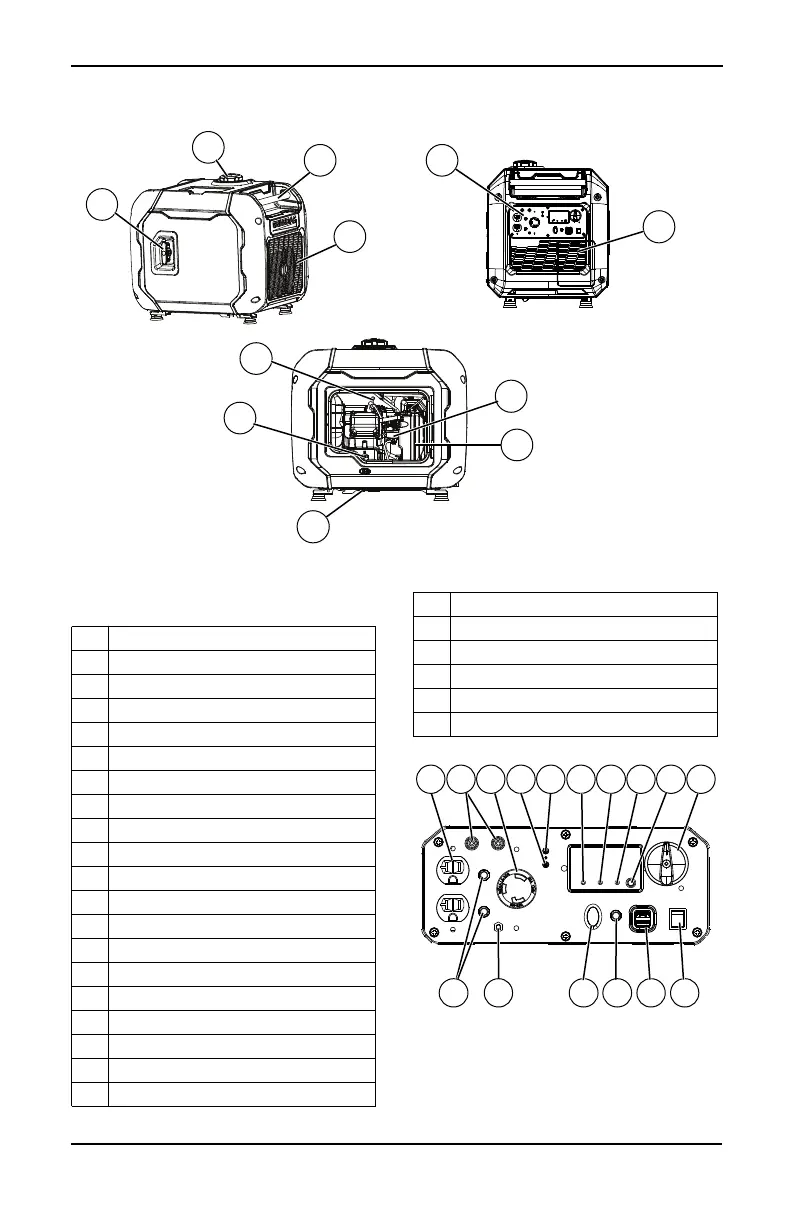

Figure 2-1. Features and Controls
Generator Components
Figure 2-2. Control Panel
23
14
18
19
22
21
24
17
15
16
007844
20
007842
014559
1 120V, 20A Receptacle
2 120V, 30A Receptacle (NEMA L5-30)
3 Low Oil Warning
4 Overload Warning
5 AC Power Light
6 Page Display
7 OFF/ON/CHOKE DIAL
8 Electric Start Switch
9 Economy Switch
10 1A/2.1A, 5 VDC USB Outlet
11 Parallel Outlets
12 AC Breakers
13 Grounding Location
14 Recoil Starter
15 Fuel Tank Cap
16 Handle
17 Air Cleaner
18 Muffler
19 Control Panel
20 Battery
21 Oil Drain
22 Oil Fill
23 Spark Plug
24 Carburetor
25 COsense RED (Hazard) (if equipped)
26 COsense YELLOW (Hazard) (if equipped)
2
12
3
10
6 74
9 8
11 5
13
014560
1 26 25
12
