Gigabyte G291-2G0 User Manual

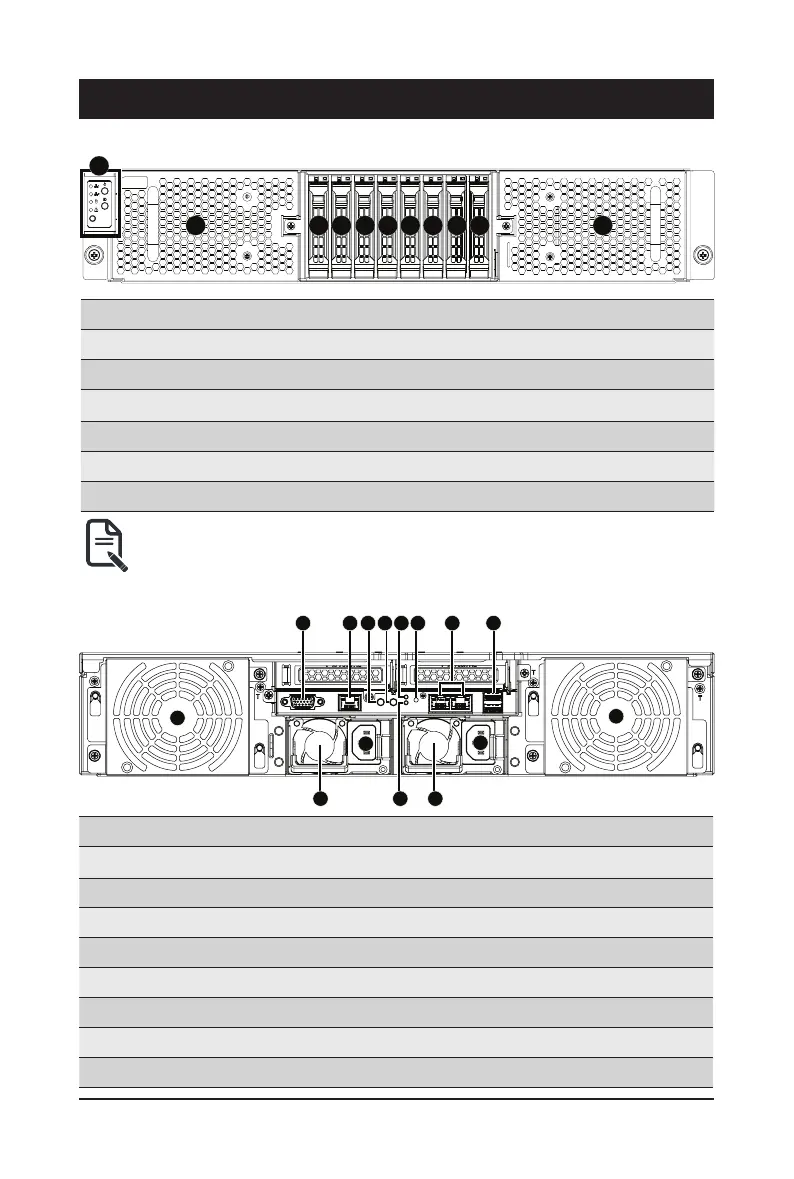

- 16 - System Appearance
Chapter 2 System Appearance
2-1 Front View
• Please Go to Chapter
2-3 Front Panel LED
and Buttons for detail description of function
LEDs.
3
1
2 114 5 6 7 8 9 10
2-2 Rear View
No.
Description
No.
Description
1.
System fan (GPU12E_FAN)
9.
USB 3.0 ports
2.
VGA port
10.
System fan (GPU56E_FAN)
3.
10/100/1000 Server Management LAN port
11.
Power Supply (PSU1) Fan
4.
Power button/LED
12.
Power supply module cord socket
5.
ID button
13.
NMI button
6.
Reset button
14.
Power Supply (PSU2) Fan
7.
System status LED
15.
Power supply module cord socket
8.
RJ-45 LAN ports
432 5 6 7 8 9
13
1
10
12
15
11 14
No.
Description
No.
Description
1.
Front panel LED and buttons
7.
2.5-inch hard disk drive #4
2.
System fan (GPU78_FAN)
8.
2.5-inch hard disk drive #5
3.
2.5-inch hard disk drive #0
9.
2.5-inch hard disk drive #6
4.
2.5-inch hard disk drive #1
10.
2.5-inch hard disk drive #7
5.
2.5-inch hard disk drive #2
11.
System fan (GPU34_FAN)
6.
2.5-inch hard disk drive #3
