Gigabyte G291-2G0 User Manual

- 49 - System Hardware Installation

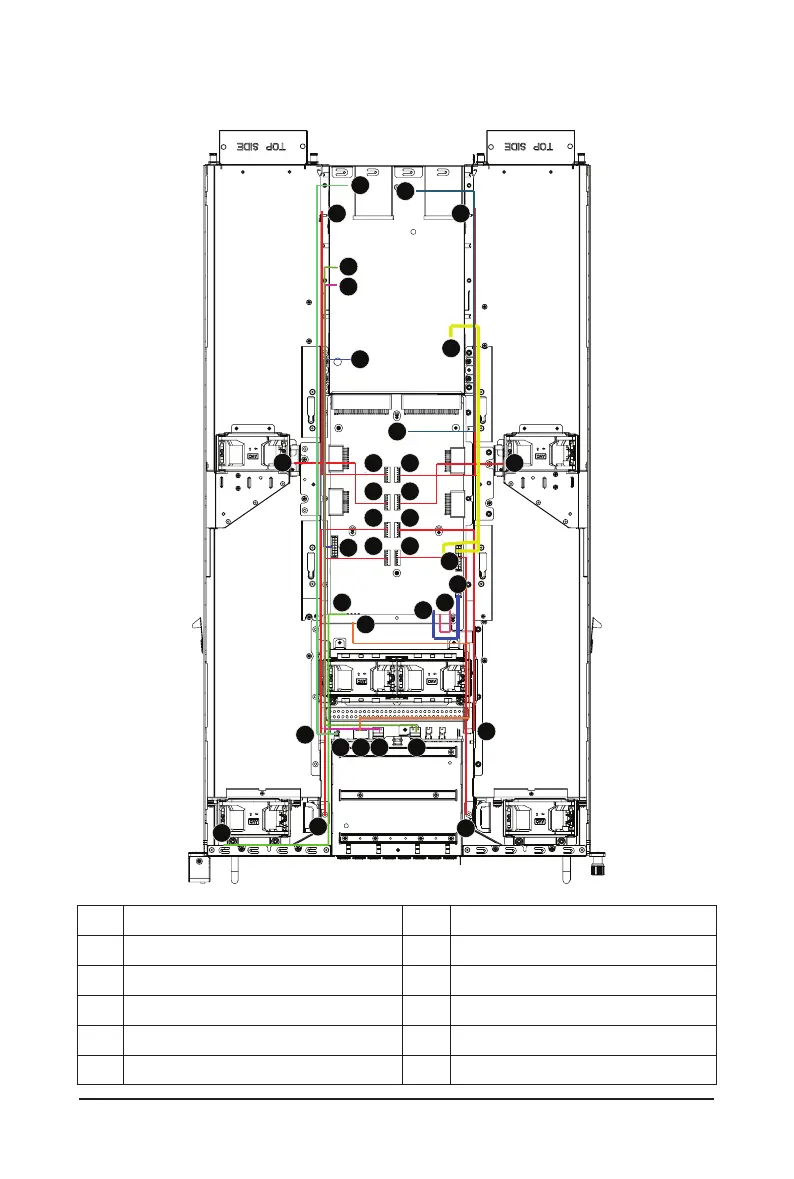

3-11 Cable Routing
No. Suggest Cable No. Suggest Cable
1. HDD BPB Signal Cable #1 (Aqua Green) 2. 1x3 Power Cable (Teal)
3. Fan Power Cables (Red) 4. Slimline SAS Cable 2 (Grass Green)
5. Slimline SAS Cable 1 (Magenta) 6 Main Power Cable (Yellow)
7 CPU Power Cable (Blue) 8 SMD Cable (Pink)
9 Front IO Cable (Green) 10 HDD BPB Power Cable (Orange)
