System Hardware Installation - 40 -
3-7 Installing an OCP Card
• Voltages can be present within the server whenever an AC power source is connected. This
voltage is present even when the main power switch is in the off position. Ensure that the system
is powered-down and all power sources have been disconnected from the server prior to installing
a PCI card.
Failure to observe these warnings could result in personal injury or damage to equipment.
Follow these instructions to install an OCP card

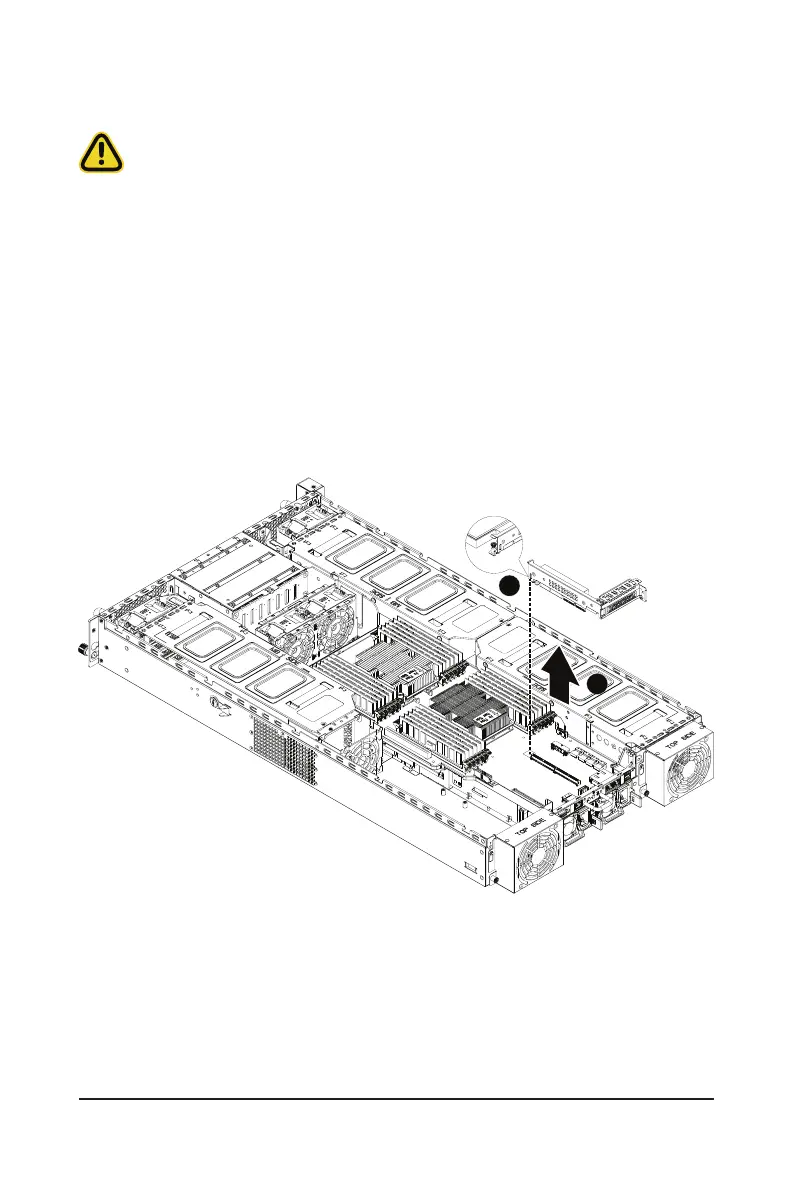

1. Loosen the thumbnail screw securing the PCI Express card bracket on the left side of the system.
2. Remove the PCI Express card bracket from the system.
3. Loosen and remove the two screws securing the hook to the system.
4. Remove the hook from the system.
5. Install the interposer board onto the riser card.
6. Install the OCP card on the riser card.
7. Secure the OCP card on the riser card with three screws.
8. Install the OCP card assembly in the system.
9. Secure the OCP card assembly in the system with one screw.
2
1
To Next Page
