Gigabyte GA-B85M-HD3 User Manual

- 24 -

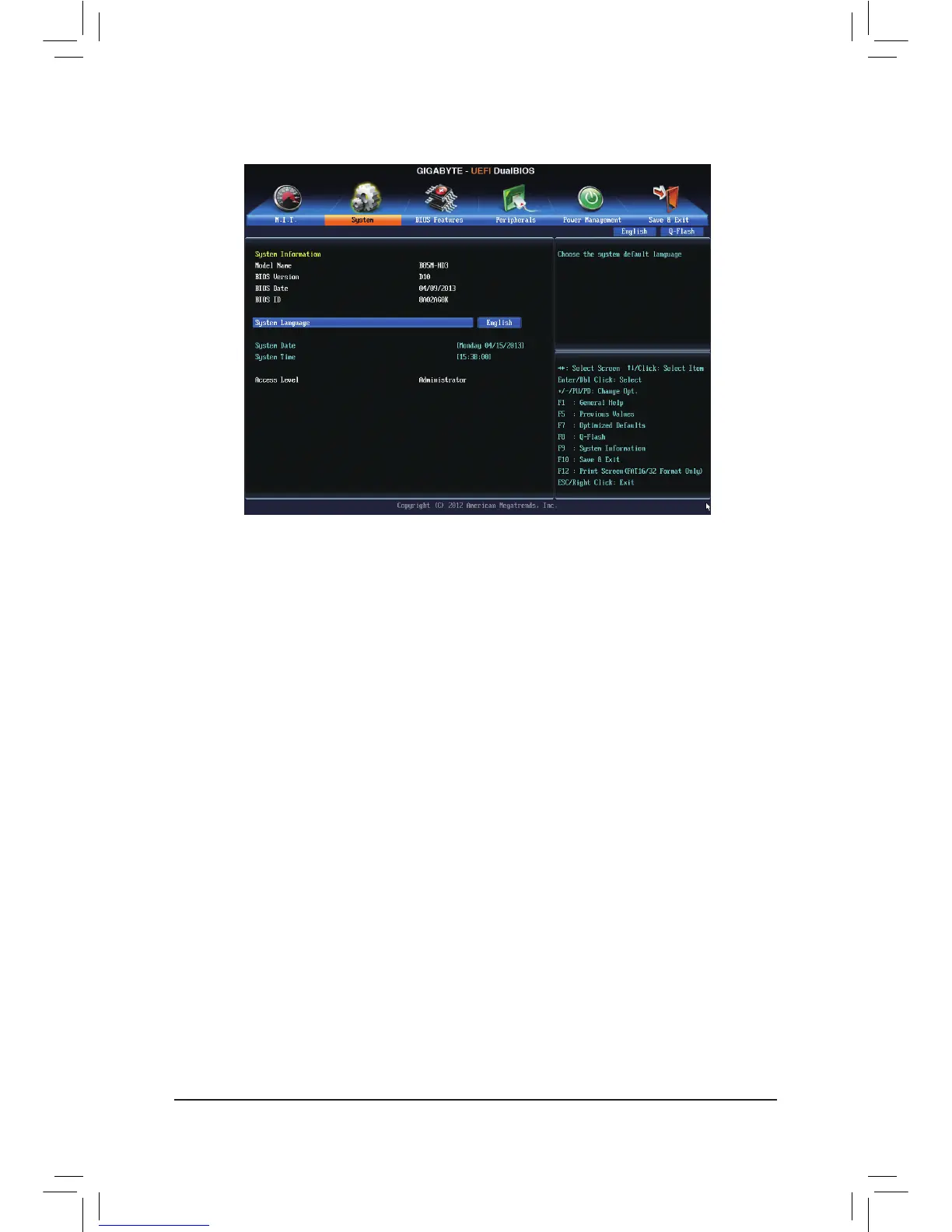

2-3 System
This section provides information on your motherboard model and BIOS version. You can also select the default
language used by the BIOS and manually set the system time.
& System Language
Selects the default language used by the BIOS.
& System Date
Sets the system date. The date format is week (read-only), month, date, and year. Use <Enter> to switch
between the Month, Date, and Year elds and use the <Page Up> or <Page Down> key to set the desired
value.
& System Time
Sets the system time. The time format is hour, minute, and second. For example, 1 p.m. is 13:0:0. Use
<Enter> to switch between the Hour, Minute, and Second elds and use the <Page Up> or <Page Down>
key to set the desired value.
& Access Level
Displays the current access level depending on the type of password protection used. (If no password is
set, the default will display as Administrator.) The Administrator level allows you to make changes to all
BIOS settings; the User level only allows you to make changes to certain BIOS settings but not all.

Gigabyte GA-B85M-HD3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Power fan connector	No
Number of SATA connectors	6
Number of SATA III connectors	4
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® B85
Audio output channels	7.1 channels
Motherboard form factor	mini ATX
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	Not supported
Bundled software	Intel Rapid Start Technology\\r Intel Smart Connect Technology\\r Intel Small Business Advantage\\r Norton Internet Security
BIOS type	UEFI AMI
ACPI version	2.0a

Weight and Dimensions

Depth	174 mm
Width	244 mm
