Gigabyte GA-B85M-HD3 User Manual

- 4 -

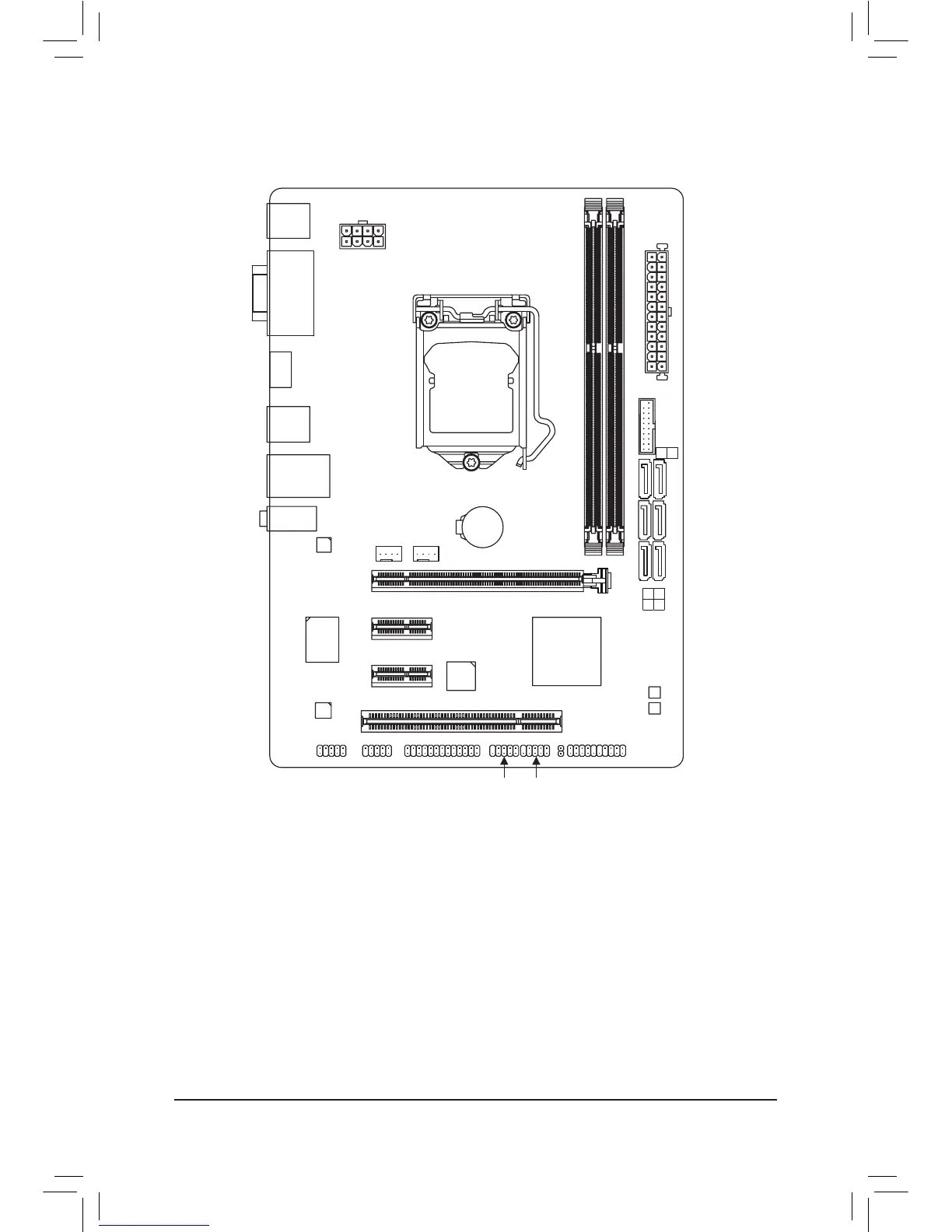

GA-B85M-HD3 Motherboard Layout
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Box Contents
5 GA-B85M-HD3 motherboard
5 Motherboard driver disk 5 Two SATA 6Gb/s cables
5 User's Manual
5 Quick Installation Guide
5 I/O Shield
KB_MS_USB
CPU_FAN
SYS_FAN
LGA1150
ATX
GA-B85M-HD3
F_AUDIO
AUDIO
M_BIOS
DDR3_1
DDR3_2
BAT
ATX_12V_2X4
Intel
®
B85
R_USB30
CODEC
CLR_CMOS
B_BIOS
VGA
DVI
LPT
USB_LAN
PCIEX16
PCIEX1_1
PCIEX1_2
PCI
iTE
®
Super I/O
Realtek
®
GbE LAN
F_USB2 F_USB1
F_USB30
COM
HDMI
5 4
SATA3 SATA2
1 3 0 2
PCIe to PCI
Bridge
F_PANEL

Gigabyte GA-B85M-HD3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Power fan connector	No
Number of SATA connectors	6
Number of SATA III connectors	4
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® B85
Audio output channels	7.1 channels
Motherboard form factor	mini ATX
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	Not supported
Bundled software	Intel Rapid Start Technology\\r Intel Smart Connect Technology\\r Intel Small Business Advantage\\r Norton Internet Security
BIOS type	UEFI AMI
ACPI version	2.0a

Weight and Dimensions

Depth	174 mm
Width	244 mm
