Gigabyte GA-Z68AP-D3 User Manual

- 8 -

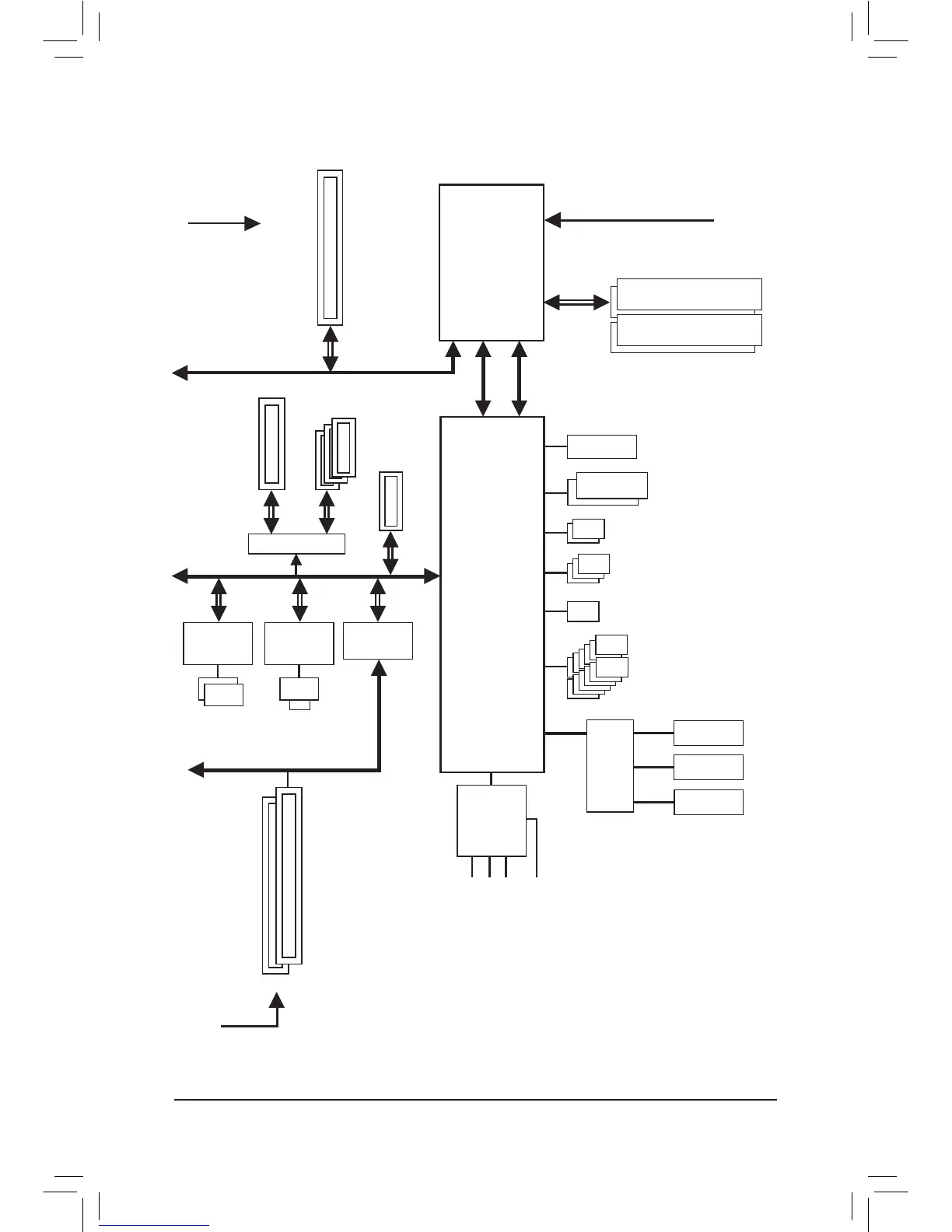

GA-Z68AP-D3 Motherboard Block Diagram
PS/2 KB/Mouse
COM Port
LPT
LPC
Bus
iTE
IT8728
2 USB 3.0/2.0
Line Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
Line In (Rear Speaker Out)
S/PDIF Out
CODEC
LGA1155
CPU
Intel
®
Z68
PCI Express Bus
CPU CLK+/- (100 MHz)
PCIe CLK
(100 MHz)
1 PCI Express x16
x16
PCI Express Bus
LAN
RJ45
Realtek
GbE LAN
Etron
EJ168
10 USB 2.0/1.1
Dual BIOS
2 PCI
PCI Bus
PCI CLK
(33 MHz)
PCIe to PCI
Bridge
2 SATA 6Gb/s
3 SATA 3Gb/s
1 mSATA
x1
x1x1x1
1 PCI Express x1
DMI 2.0
FDI
HDMI
DDR3 2133/1866/1600/
1333/1066 MHz
Dual Channel Memory
x4 x1
3 PCI Express x1
Switch
or
1 PCI Express x4

Gigabyte GA-Z68AP-D3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Motherboard chipset	Intel Z68
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Microsoft Windows 7, Vista, XP
Parallel processing technology support	Quad-GPU CrossFireX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
LAN controller	Realtek RTL8111E
Networking features	10/100/1000 Mbps
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0b

Weight and Dimensions

Depth	215 mm
Width	305 mm
