Gigabyte MS03-CE0 User Manual

- 18 -
Hardware Installation

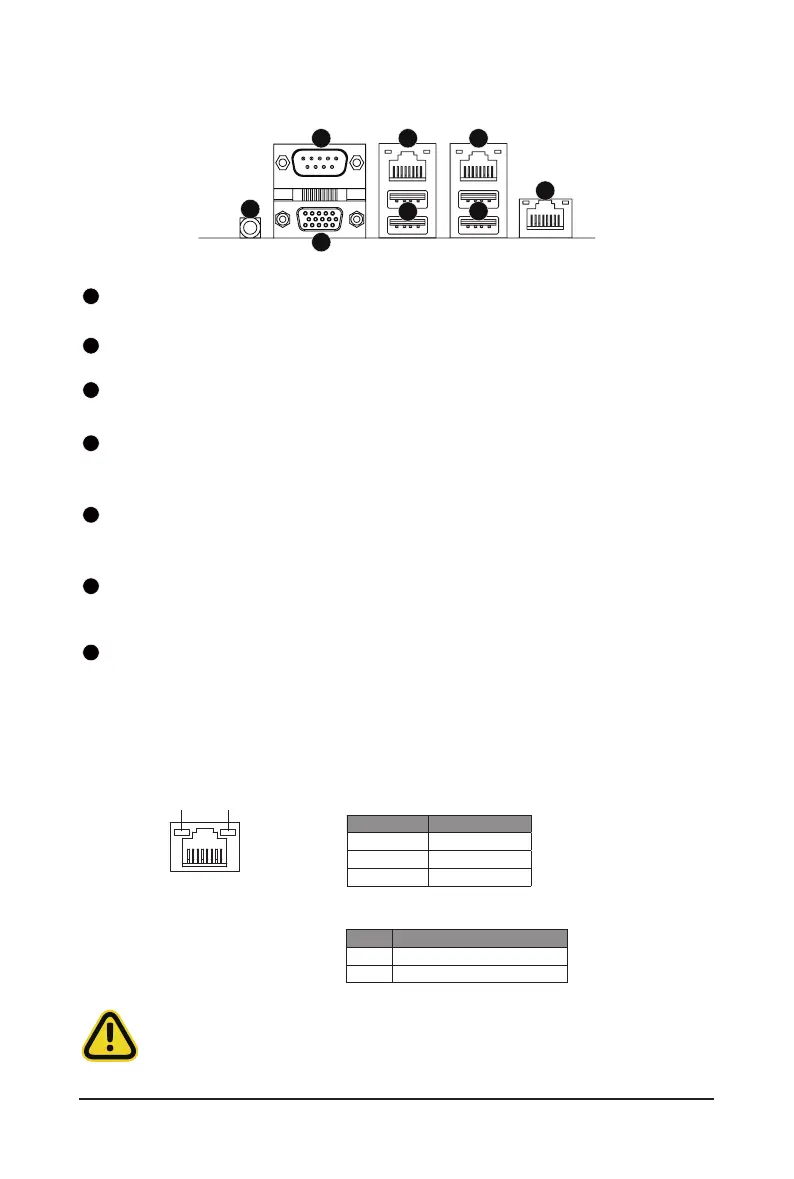

1-6 Back Panel Connectors
1
ID button with LED
Whenthesystemidenticationisactive,theIDLEDonthefront/backpanelglowsblue.
2
Serial Port
Connect to serial-based mouse or data processing devices.
3
VGA Port
Connect to a monitor device.
4
1GbE LAN Port #2
The Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
5
USB 3.2 Gen1 Ports
The USB port supports the USB 3.2 specification. Use this port for USB devices such as a USB
keyboard/mouse,USBprinter,USBashdriveetc.
6
1GbE LAN Port #1
The Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
7
Server Management LAN Port
The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. This port is
the dedicated LAN port for Server Management.
1
2
3
4
5
7
6
5
LAN and ID Button LEDs
Link/Activity LED
Speed LED
LAN Port
ID button/LED:
10/100/1000 LAN LED:
State Description
Yellow On 1Gbps data rate
Green On 100Mbps data rate
Off 10Mbps data rate
State Description
Blue On Systemidenticationisactive
Off Systemidenticationisdisabled
• Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
