- 78 -
BIOS Setup
2-4-3

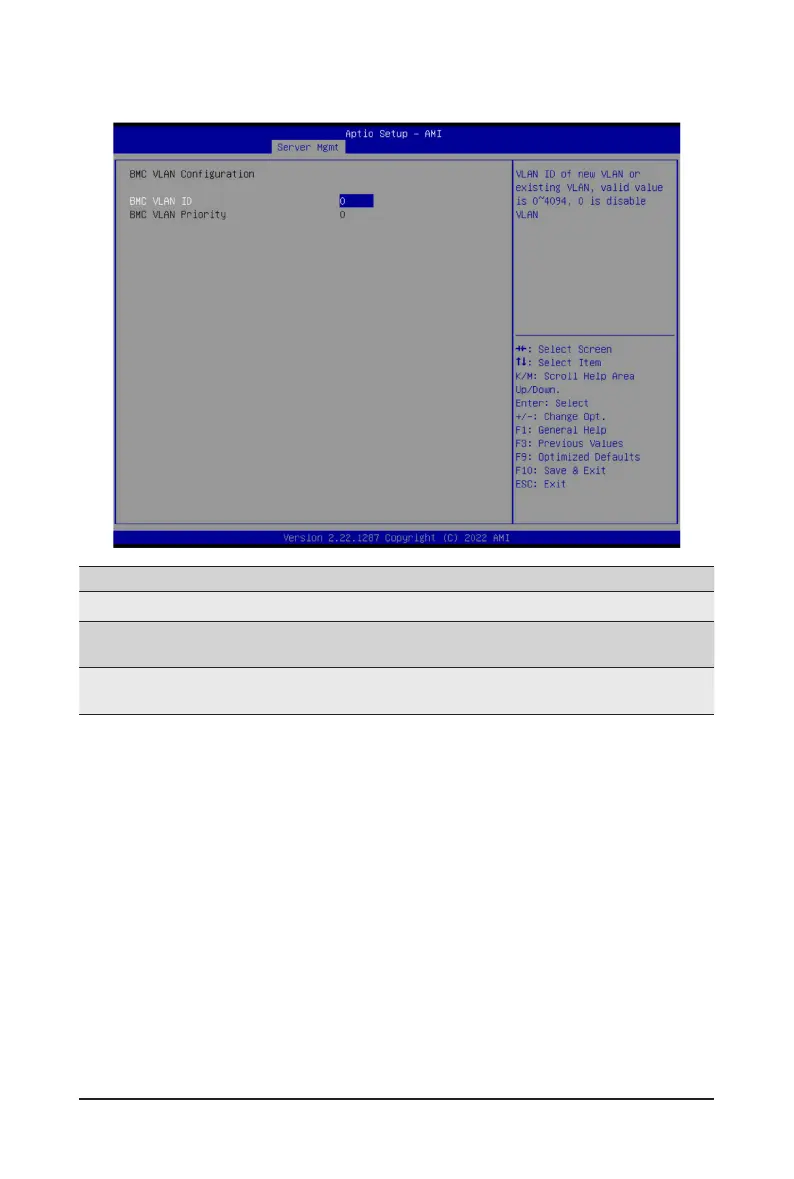

BMC VLAN Conguration
Parameter
Description
BMCVLANConguration
BMC VLAN ID
SelecttocongureBMCVLANID.Thevalidrangeisfrom0to4094.When
set to 0, BMC VLAN ID will be disabled.
BMC VLAN Priority
SelecttocongureBMCVLANPriority
.Thevalidrangeisfrom0to7.
When BMC VLAN ID is set to 0, BMC VLAN Priority will not be selected.
77
79
Table of Contents
default chapter
3
Table of Contents
3
MS03-CE0 Motherboard Layout
5
Block Diagram
7
Chapter 1 Hardware Installation
8
Installation Precautions
8
Product Specifications
9
Installing and Removing the CPU
12
Installing and Removing Memory
14
Eight-Channel Memory Configuration
14
Installing and Removing a Memory Module
15
DIMM Population Table
15
Processor and Memory Module Matrix Table
15
DDR5 DIMM with Intel Optane TM Pmem 300 Series Memory Population
16
Intel Optane TM Pmem 300 Series Matrix Configuration
16
Installing the M.2 SSD Module
17
Back Panel Connectors
18
Internal Connectors
19
Jumper Settings
27
Chapter 2 BIOS Setup
28
The Main Menu
30
Advanced Menu
33
Trusted Computing
34
Serial Port Console Redirection
35
Sio Configuration
38
PCI Subsystem Settings
39
Usb Configuration
41
Network Stack Configuration
42
Post Report Configuration
43
Nvme Configuration
44
Chipset Configuration
45
Tls Auth Configuration
46
Iscsi Configuration
47
Intel(R) I210 Gigabit Network Connection
48
Vlan Configuration
50
Driver Health
51
Chipset Menu
52
Processor Configuration
54
Common Refcode Configuration
56
Upi Configuration
57
Memory Configuration
59
Iio Configuration
62
Advanced Power Management Configuration
64
Pch Configuration
66
Miscellaneous Configuration
68
Server Me Configuration
69
Runtime Error Logging Settings
70
Power Policy
72
Server Management Menu
74
System Event Log
76
View FRU Information
77
Bmc Vlan Configuration
78
Bmc Network Configuration
79
Ipv6 Bmc Network Configuration
80
Security Menu
81
Secure Boot
82
Boot Menu
85
Save & Exit Menu
87
BIOS Recovery
89
BIOS POST Beep Code (AMI Standard)
90
PEI Beep Codes
90
DXE Beep Codes
90
4
