GIRBAU EH040 User Manual

Programming a new wash program 48
Code 429159
Rev. 15/0717
7.5.3. A6 (I/O2) board outputs activation table

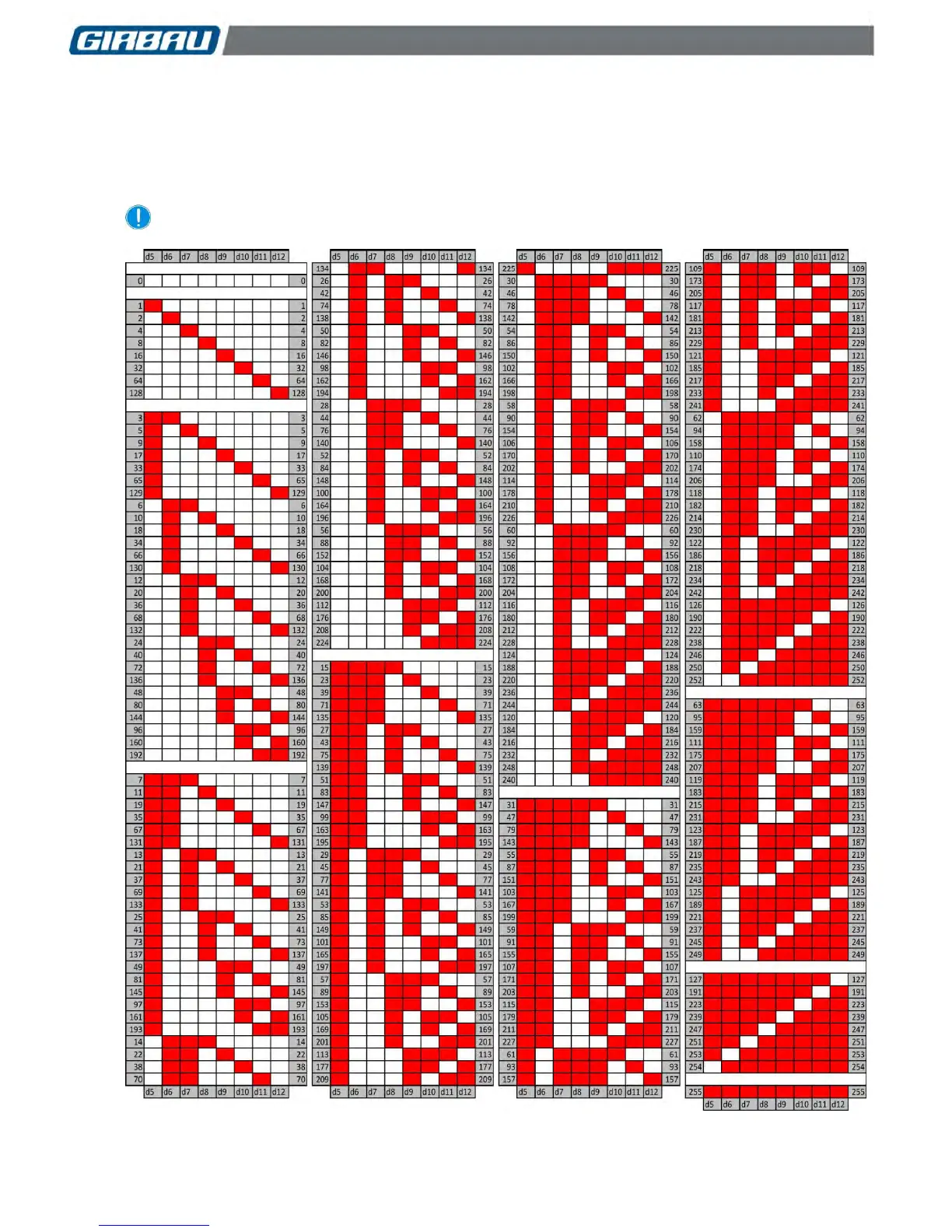

The columns from 0 to 255 represent the range of decimal values that can be selected using the Inteli control
alphanumerical keypad. Columns d5-d12 represent the equivalence of these decimal values to the activation of
the outputs of the A6(I/O2) board (white indicates 0 - no activation).
Note that the outputs activation table is divided up according to the number of outputs activated.
ACTIVATION OF 3 OUTPUTS
ACTIVATION OF 5 OUTPUTS
ACTIVATION OF 6 OUTPUTS
ACTIVATION OF 7 OUTPUTS
ACTIVATION OF 8 OUTPUTS
NO ACTIVATION
ACTIVATION OF 1 OUTPUT
ACTIVATION OF 4 OUTPUTS
ACTIVATION OF 2 OUTPUTS
