2. CONTROL PANEL
The INTELI control offers different user intervention devices upon the washing machine.
2.1. Connection and stop devices
General switch. Switch disconnector located on the rear
part of the washing machine. Totally disconnects the
electric supply from the machine.

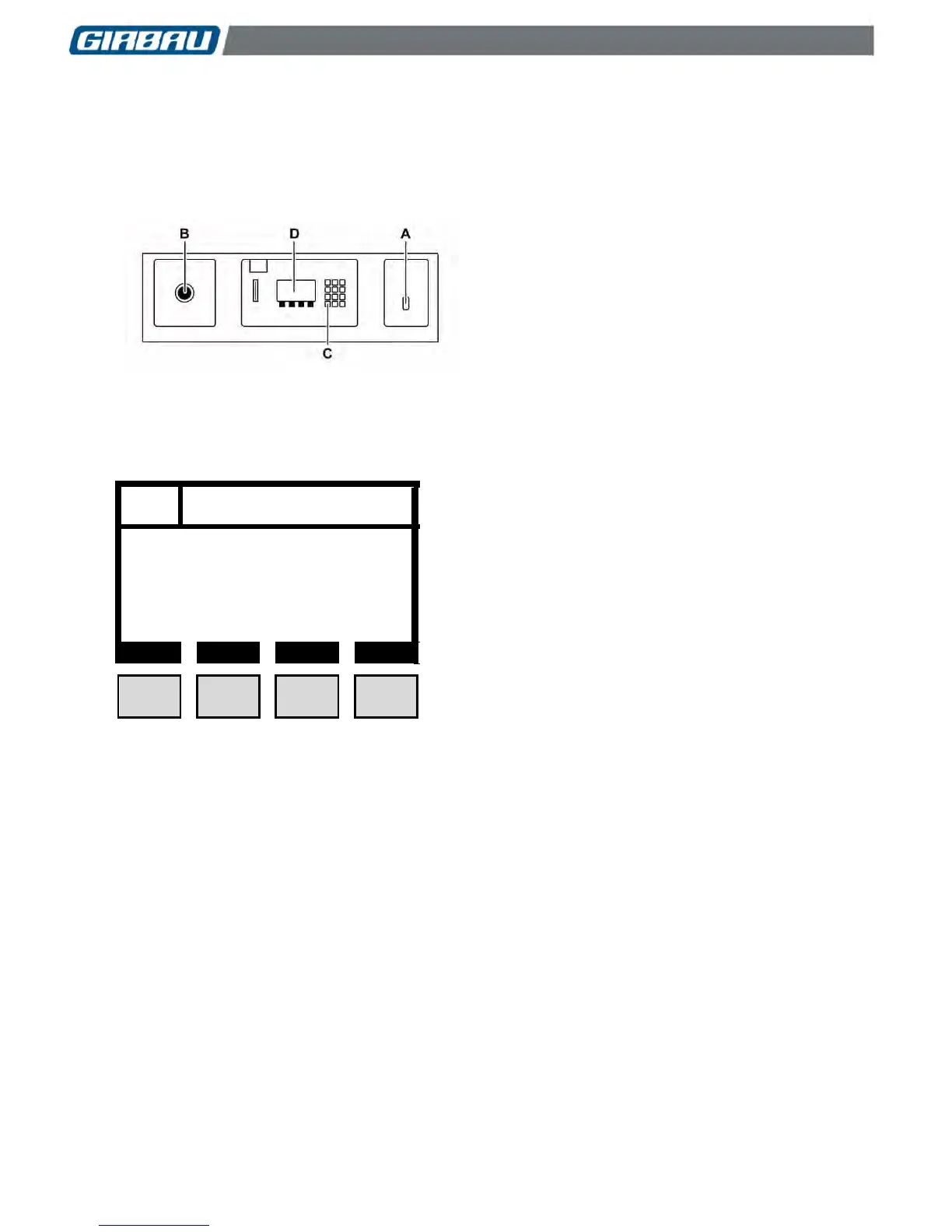

ON switch (A): Switch installed on the front piece of the
washing machine.
Emergency stop (B): (only on washing machines with
capacity over 150dm
3
). Red button with lock located in
a visible and accessible place on the washing
machine.
STOP key (C): key on the numerical keyboard.
2.2. Screen
Allows viewing the different operations that the washing machine and/or the user execute by means of easily
understandable graphic icons.
Screen (D) in graphic mode. In graphic visualization,
the screen is divided into different parts.
1) Function icon
2) Program and phase numbers
3) System time / Time remaining in the program
4) Central screen
5) Function of the multi-function keys
6) Multi-function keyboard
Screen in text mode. Used in the CONFIGURATION
mode menus and the TECHNICAL ASSISTANCE area.
The screen displays messages written in different
languages.
