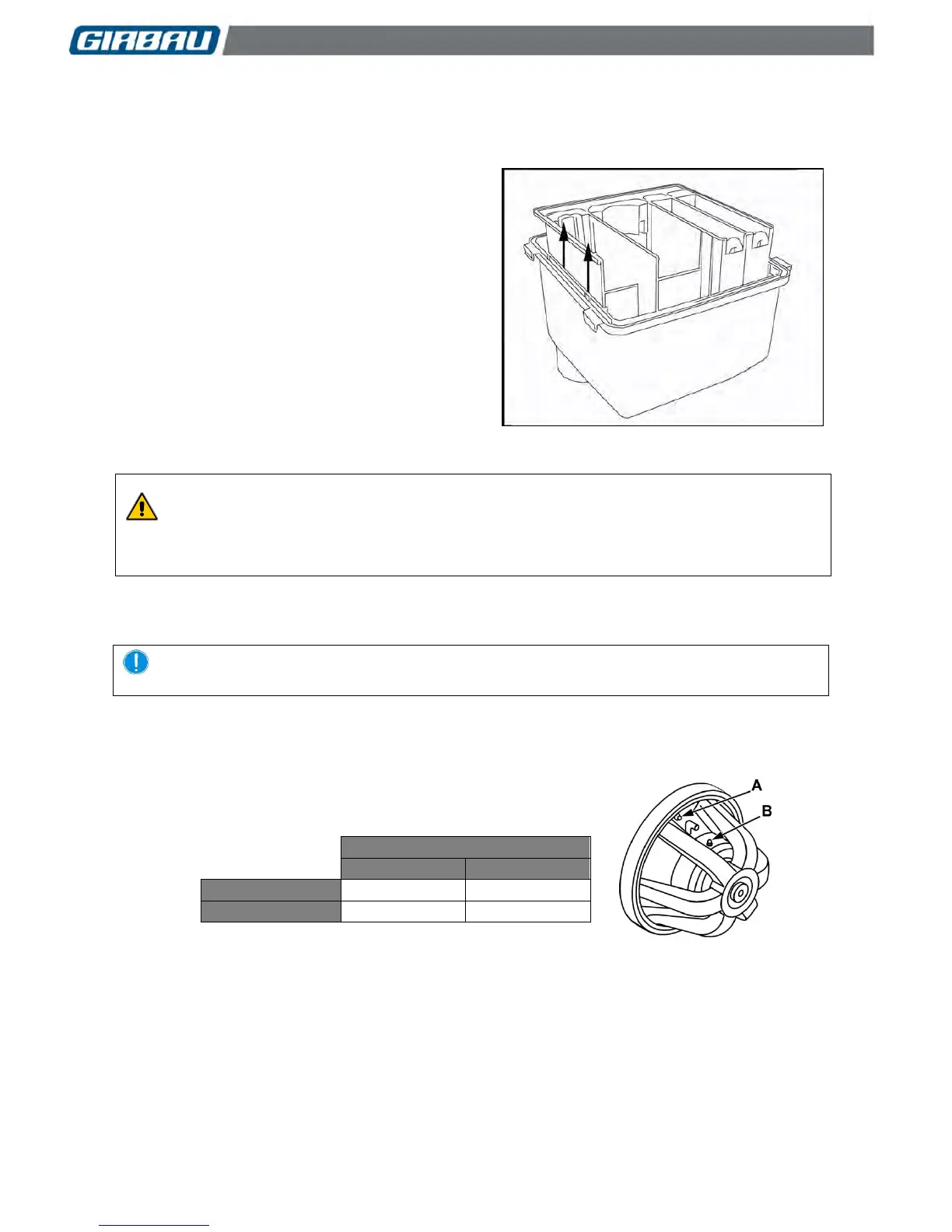

Disassembly and assembly

 Open the fastening clasps on the top cover. The

dispenser is now accessible.

 Dismount the siphon tubes from the liquid

compartment by pulling them upwards.

 To clean the lower basin, remove the leak seal and

separate the two dispenser bodies by separating

the side lips (see figure).

Once the cleaning operations are over:

 Remount the two dispenser bodies and check that

the side lips fasten both pieces.

 Replace the siphon tubes.

 Check that the dispenser is set well in its bracket.

 Check condition of top cover seal. If seal is

damaged, deformed or has lost elasticity, it must be

replaced. Replace the seal.

 Assemble the top cover. Close the clasps.

Fig. 15.1

VERY IMPORTANT

The protection of the dispenser seal is necessary to prevent humidity and corrosion inside the

machine and the premature damage of the electrical and electronic circuits of machine control.

15.6. Greasing the bearing housing

Operation reserved for the Authorised Technical Services or the trained Customer Technical

Service.

In models HS-6110/EH255 models the bearing housing needs to be greased on a regular basis as a preventive

maintenance action to ensure smooth operation and the longest useful life. To do so, apply the amounts of Shell

Alvania 3 grease or similar which appear in the following table:

QUANTITY

Every 5000 hours

120 g (0.265 lb)

80 g (0.176 lb)

Change oil seals

1200 g (2.65 lb)

700 g (1.54 lb)

Fig. 15.2

* When changing oil seals: CHANGE USED GREASE and thoroughly clean the bearing housing.
