GLW CS 60 User Manual

OPERATION
08/2012 8

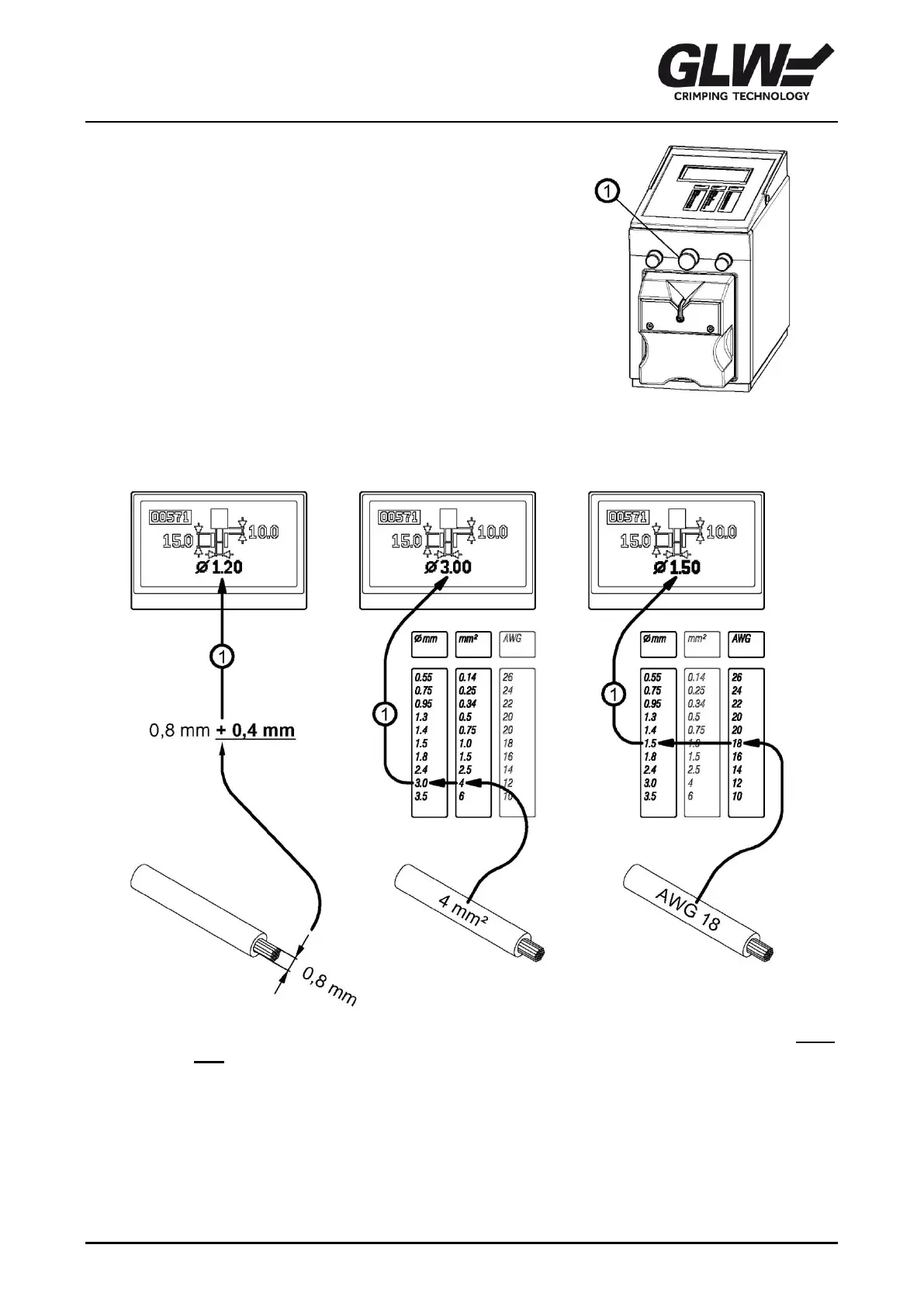

1. Setting the diameter
Presetting has to be carried out to prevent
damage to the stripping blades.
Follow one of the three illustrated examples.
 Establish the diameter of the conductor (in mm) and add to it a safety margin of + 0.4
mm.
 Alternatively, you can read out the conductor diameter (mm²) or AWG values from
the printed table and use them for entry. The safety margin is already included in the
table.
 Set the middle rotary knob to the value.

GLW CS 60 Specifications

General

Brand	GLW
Model	CS 60
Category	Crimp tool
Language	English
