07 Equipment Commissioning
User Manual V1.6-2024-03-20
7.2 Power On
7 Equipment Commissioning
7.1 Check Before Power ON
No. Check Item
1
The product is rmly installed at a clean place that is well-ventilated and easy-to
operate.
2
The PE, DC input, AC output, and communication cables are connected correctly and
securely.
3 Cable ties are intact, routed properly and evenly.
4 Unused cable holes are tted using the waterproof nuts.
5 The electrical conduit holes are sealed.
6
The voltage and frequency at the connection point meet the inverter grid connection
requirements.

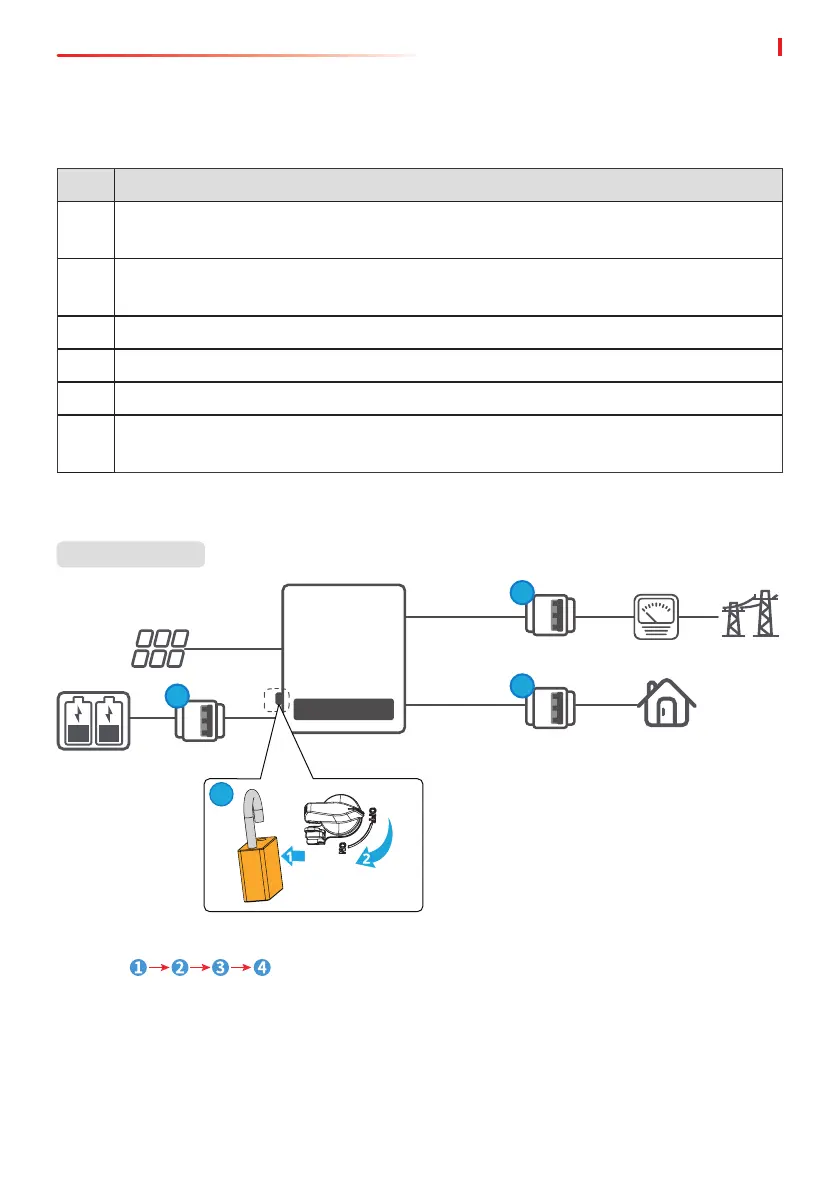

Single Inverter
Turn on:
1
2
3
4
ON-GRID breaker
Utility meter
PV string
Battery
Battery breaker
Utility grid
Load
BACK-UP breaker
Only for Australia.
To Next Page
