Controls and Indicators
14 311075R
Motor Power Switch/Circuit
Breaker
Switch (MP) turns power on to control board
and function knob. The switch includes a 20 A
circuit breaker.
Heater Power Switch/Circuit
Breaker
See FIG. 3. Switch (HP) turns power on to
heater thermostats. The switch includes a 20 A
circuit breaker. Present on heated units only.
Heater Temperature Controls
See FIG. 4. Control knobs (HC) set tempera-
ture of component A and B heaters. Indicator
lights (HL) turn on when thermostats are heat-
ing, and off when heater reaches setpoint.
Present on heated units only.
Fluid Temperature Sensors
and Displays
See FIG. 3. Fluid temperature sensors (T)
monitor actual temperature of component A
and B fluid going to spray gun. Temperatures
are then displayed (TD). Present on heated
units only.
Unit is shipped set to °F. To change to °C, see
page 43.

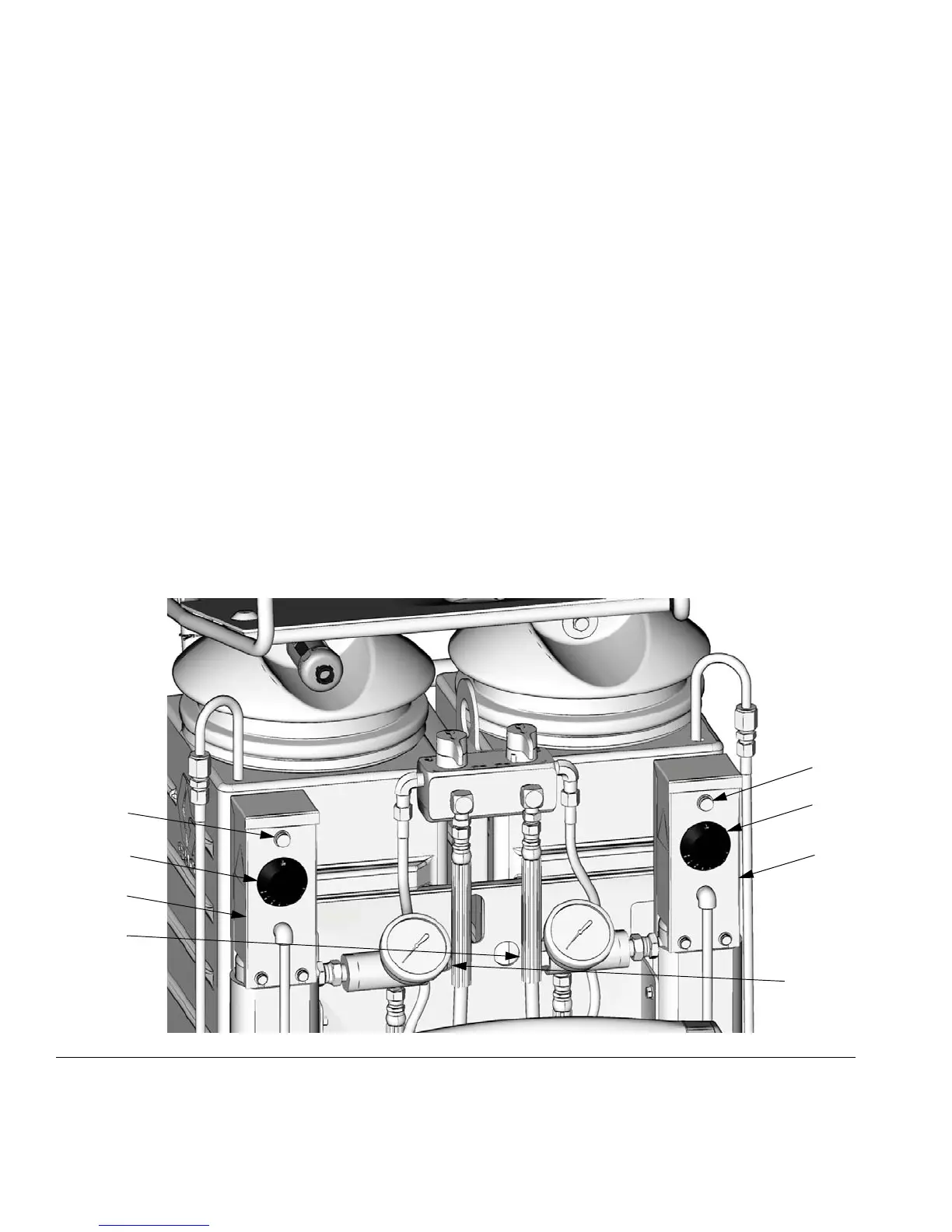

FIG. 4. Heater Temperature Controls
HC
HC
HL
HL
TI6984b
E
F
T
T
