Graco Reactor E-10 User Manual

Repair
311075R 41
Displacement Pump
To Remove Intake Valve Only
Displacement pump repair and parts
information is included in manual
311076, which is supplied with your
unit.
Use dropcloth or rags to protect
Reactor E-10 and surrounding area
from spills.
1. See Before Beginning Repair, page 39.
Relieve pressure, page 27.

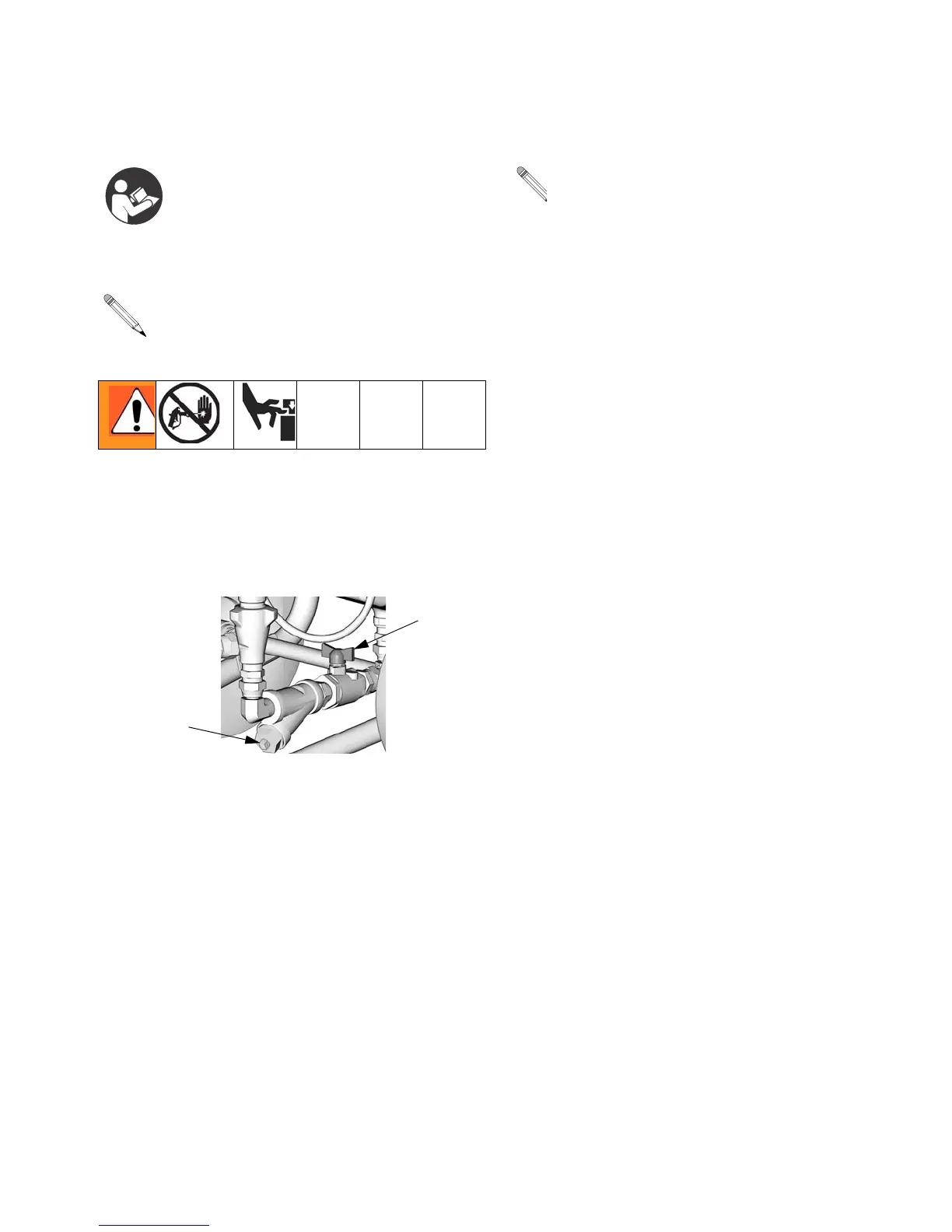

2. Close both fluid inlet ball valves (52). Open
filter drain plug on Y-strainer (51).
52
TI7020a
51
If pump is not generating any pressure,
the intake ball check may be stuck closed
with dried material.
If the pump is not generating pressure on
the downstroke, intake ball check may be
stuck open.
Either of these conditions can be serviced
with the pump in place.
3. Disconnect fluid inlet (C) and swing it aside.
4. Remove intake valve by hitting ears (E)
firmly right-to-left with a non-sparking ham-
mer. Unscrew from pump. See manual
311076 for repair and parts.
